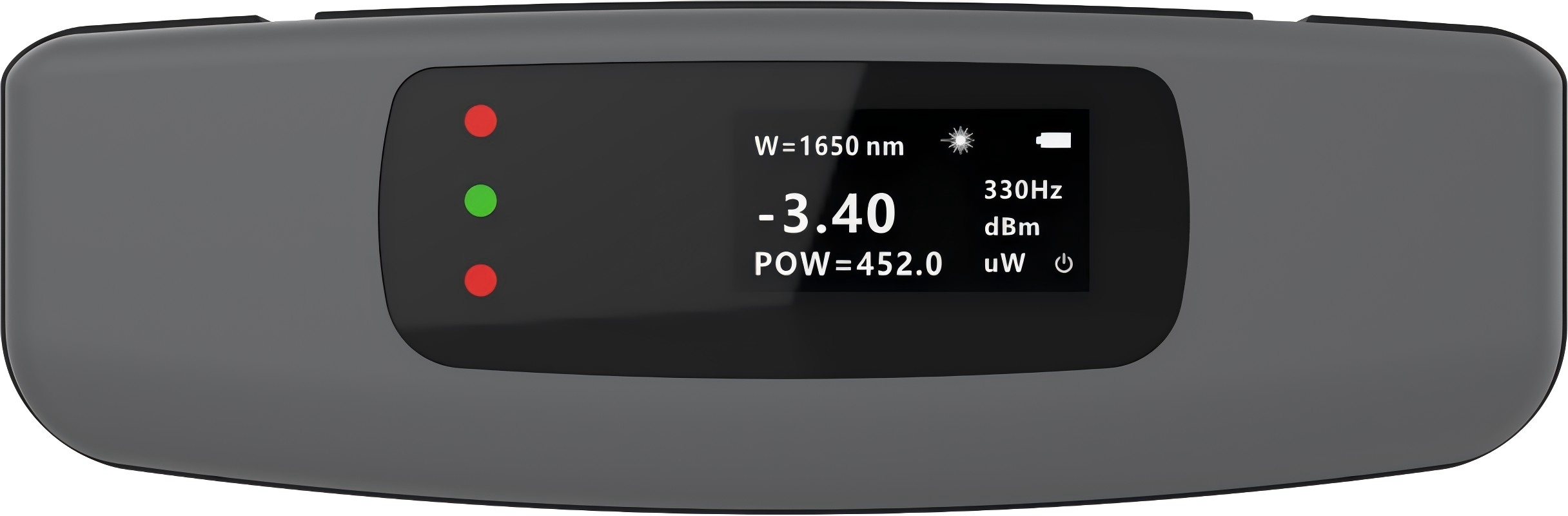

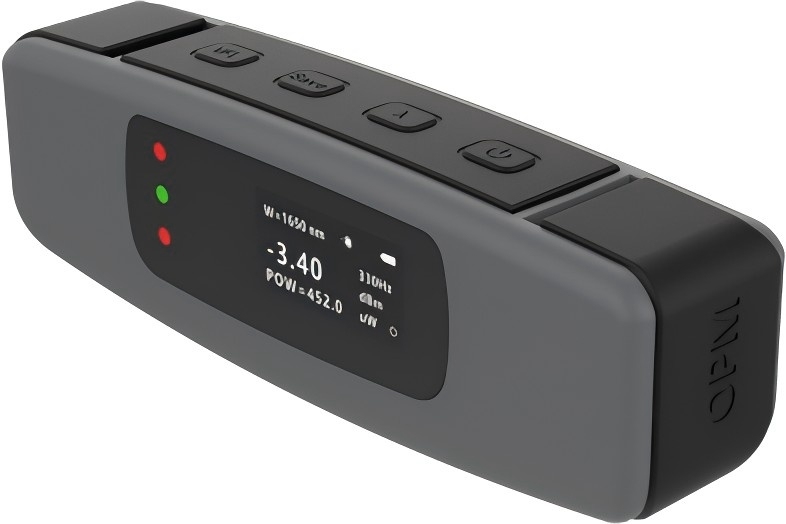

The Multimeter is an optical power meter and visual fault locator integrated instrument. It is with a 0.96 inch in size and 128x64 in resolution OLED display. It is powered by a built-in 500mAh rechargeable lithium battery, and its charging port is a Type C interface that complies with the Type C standard. The design is compact and convenient, with a total weight of 50g. It comes with 1000 data stores and supports user viewing and user self calibration. It also supports data export and calibration by PC computer that comes togetherwith the device. The mW value and dBm value are displayed simultaneously, facilitating the needs of difffferent users. The output power of the red light source is optional: 5mW/10mW/20mW/30mW/50mW.
Features
- Thumb sized, extremely small
- OLED display, visible from any angle, even under strong sun light
- Rechargeable lithium battery
- Type-C USB for battery charging & Data Transmission
- User self calibration suported
- Up to 1000 data storage memory
- Come with PC software, data can be exported to computer
- User setting memorized (WL, unit)
- Frequency Detection Supported
- Display mW & dBm simultaneously
- VFL Output power extremely stable from beginning to battery exhausted
|
Optical Power Meter (OPM)
|
|
|
Working Range
|
-70 to +10dBm/-50 to +26dBm
|
|
Wavelength Range
|
800nm to 1700nm
|
|
Connector
|
2.5mm Universal
|
| Photodetector |
InGaAs
|
|
Uncertainty
|
5%
|
|
Calibrated Wavelength
|
850/1300/1310/1490/1550/1625/1650nm
|
|
Display Resolution
|
1%, 0.01dBm
|
|
Frequency Identifification
|
CW/270Hz/330Hz/1kHz/2kHz
|
|
Data Storage
|
1000 (wavelength, power value, frequency, unit)
|
|
Calibration method
|
1. by functional buttons combination
2. by PC software
|
|

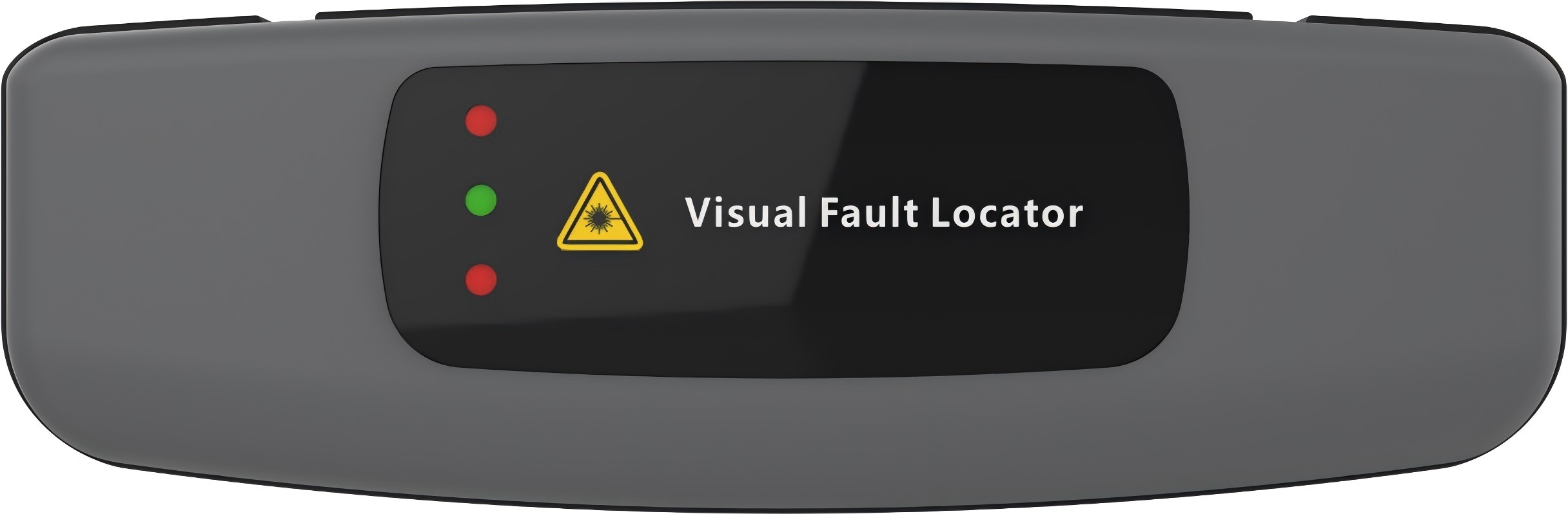

Visual Fault Locator (VFL)
|
|
|
Working wavlength
|
650nm±30nm
|
|
Output power
|
2mW/5mW/10mW/20mW/30mW/50mW
|
|
Mode
|
CW/2Hz
|
|
Connector
|
2.5mm Universal
|
| General | |
|
Display
|
OLED
|
|
Resolution
|
128x64
|
|
Battery
|
3.7v/500mAh
|
|
Charging port
|
Type C USB
|
|
Auto off
|
10 mins
|
|
Working Temperature
|
-10 to +50 oC
|
|
Storage Temperature
|
-10 to +60 oC
|
|
relative humidity (RH)
|
0 to 95%
|
|
Size
|
98x33x23mm
|
|
Weight
|
50g
|
