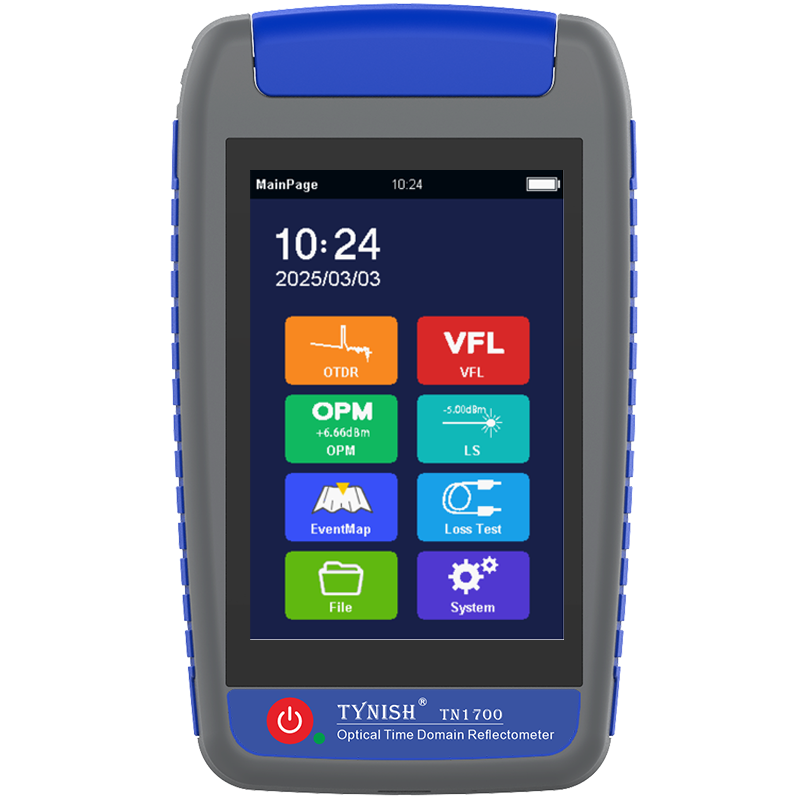

Multi Functions are integrated

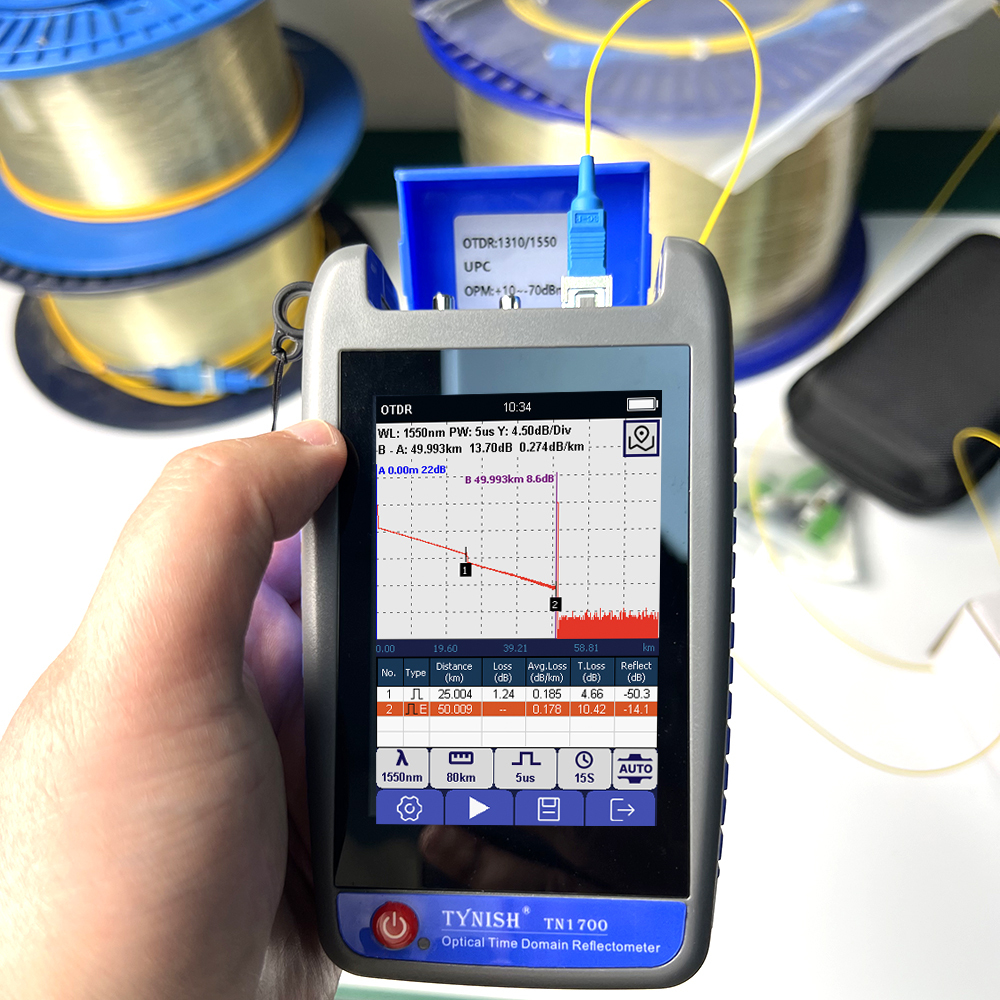

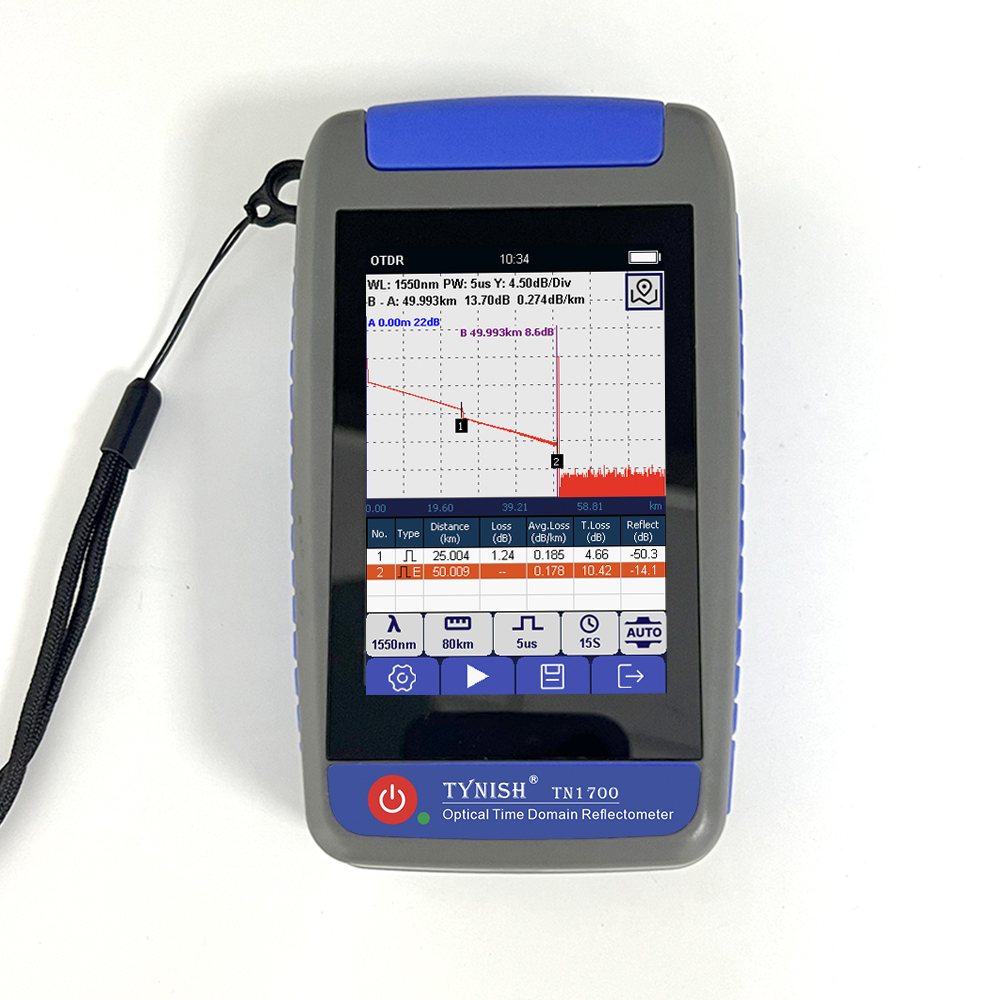

- OTDR (Auto Test)
- OTDR (Average Test)
- OTDR (Real Time Test)

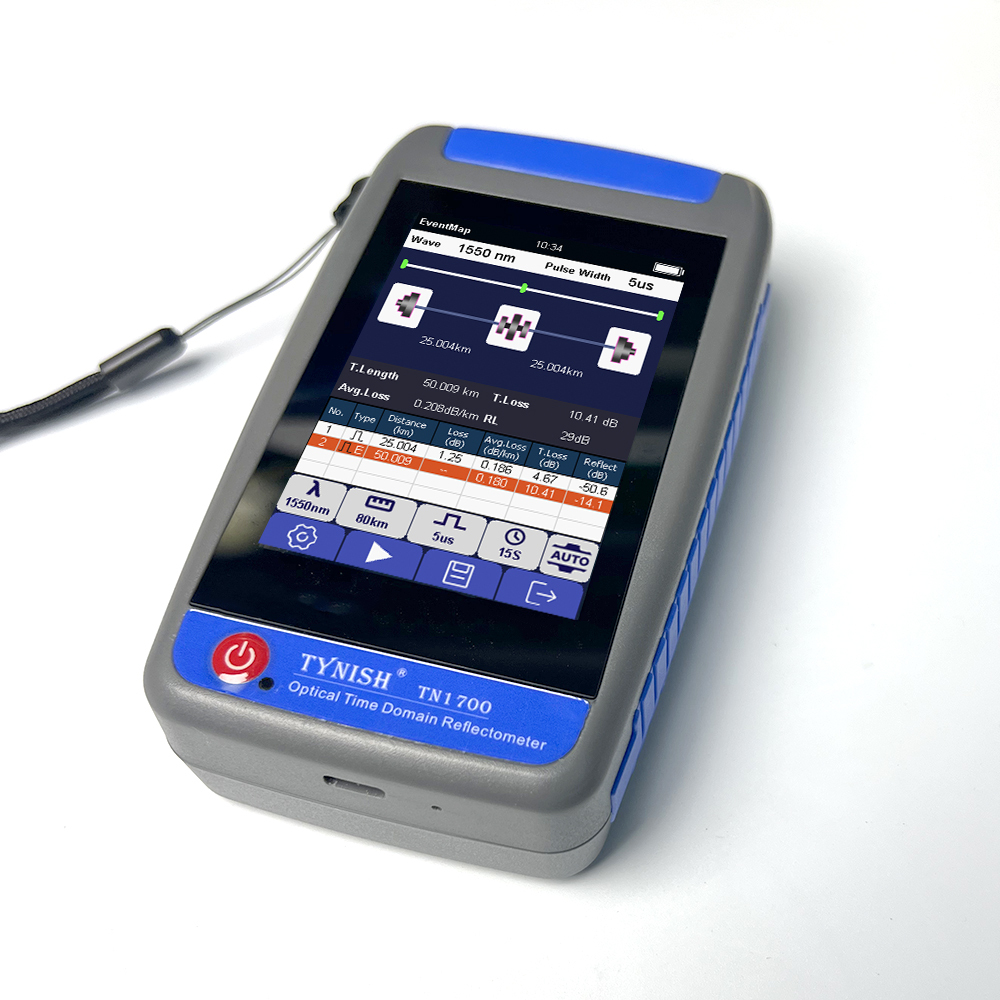

- Event Map

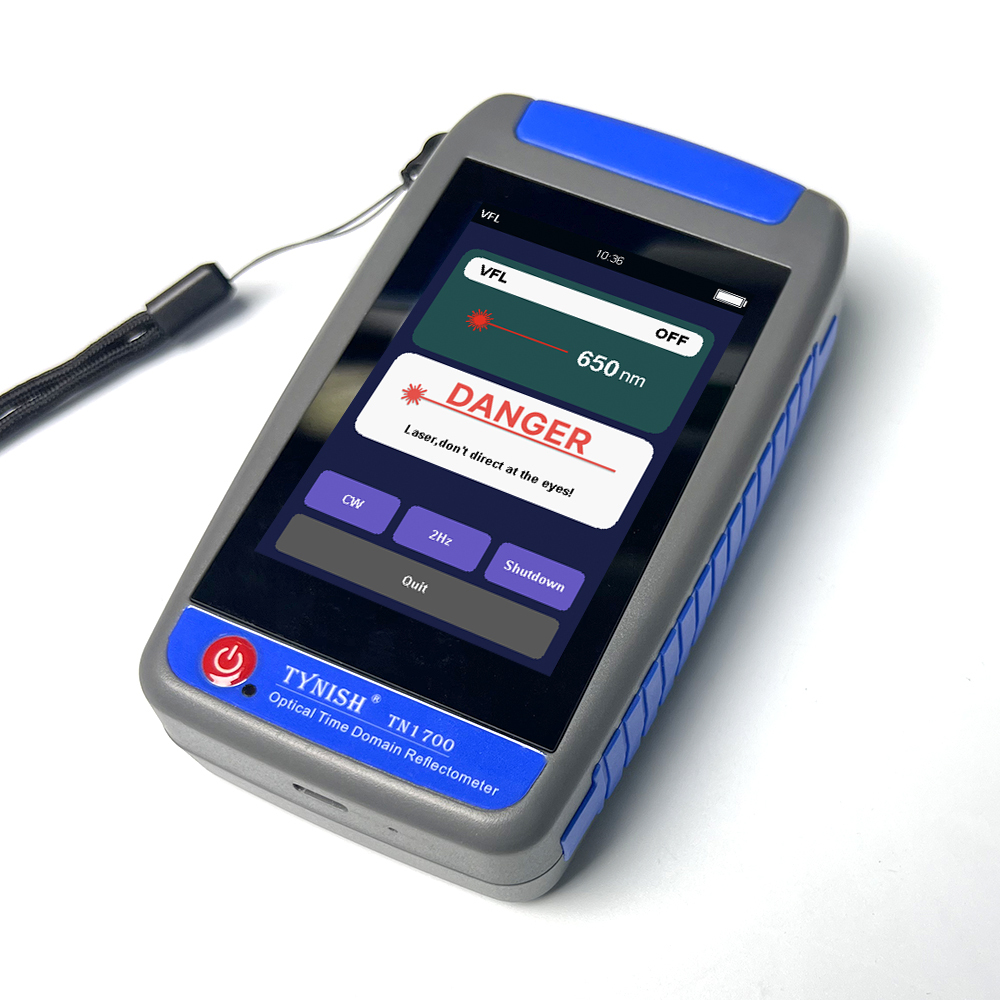

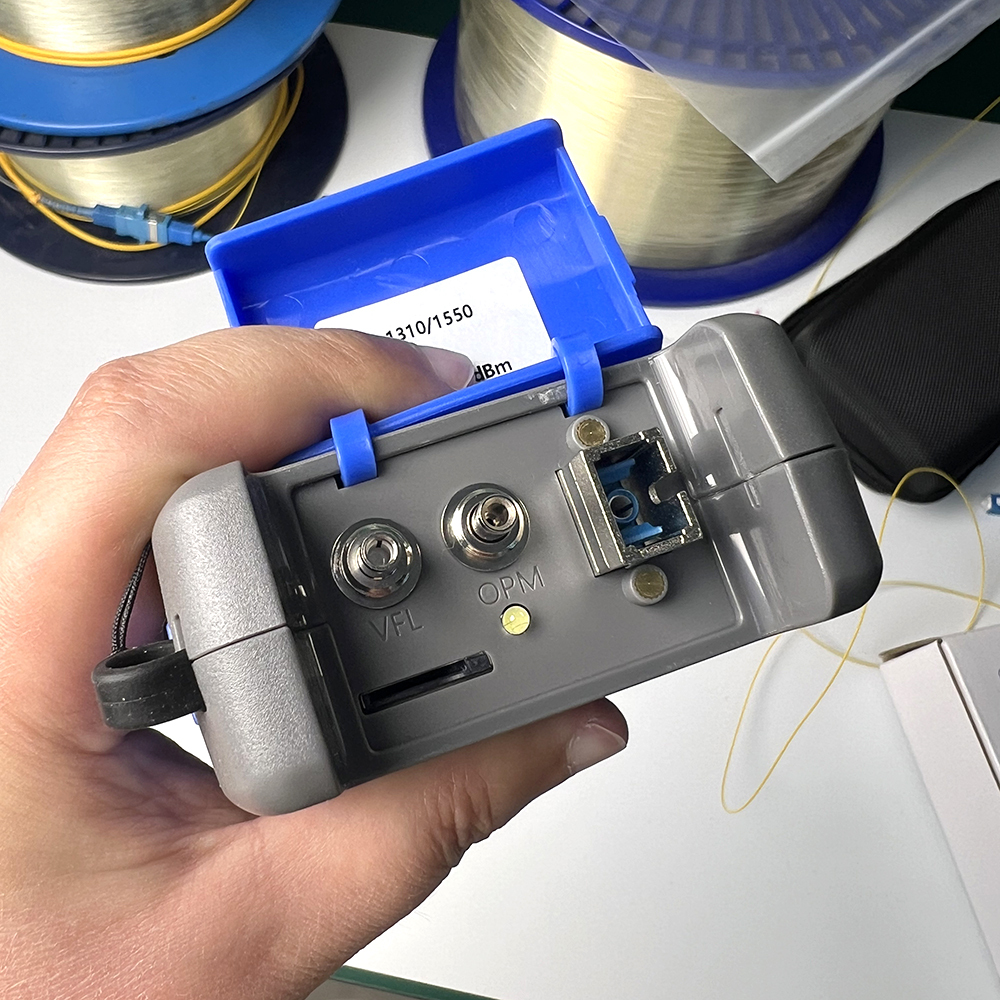

- Visual Fault Locator (VFL)
- Optical Power Meter (OPM)
- Optical Light Source (OLS)
- Loss Test
- LED Light
Packing List
- OTDR
- User Manual
- Cleaner
- USB Cord

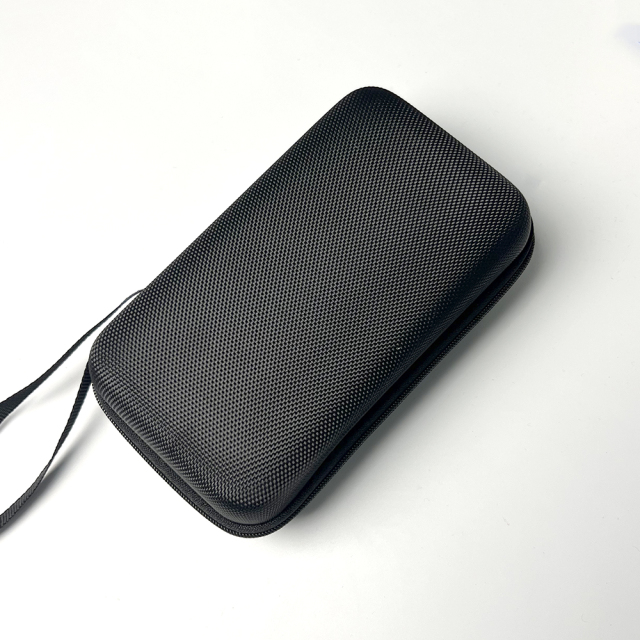

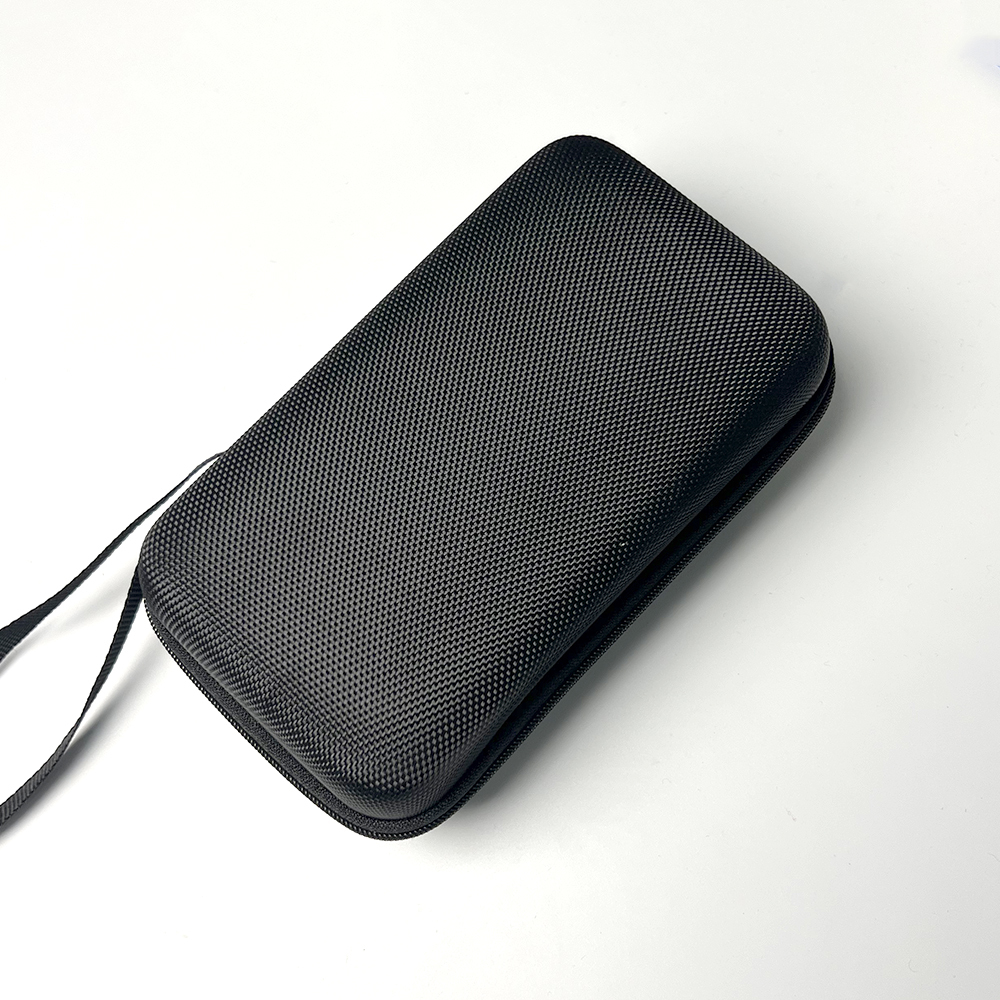

- Carry Bag
|
Model |
TN1700-D22 |
TN1700-P1 |
TN1700-P2 |
TN1700-A22 |
|
Wavelength |
1310nm & 1550nm |
1550nm |
1610nm |
1625nm |
|
Dynamic Range |
22/20dB |
22d |
22dB |
22dB |
|
Testing Range |
3m to 70km |
3m to 70km |
3m to 70km |
3m to 70km |
|
OTDR |
√ |
√ |
√ |
√ |
|
Power Meter |
√ |
√ |
√ |
√ |
|
Light Source |
√ |
√ |
√ |
√ |
|
Visual Fault Locator |
√ |
√ |
√ |
√ |
|
Loss Testing |
√ |
√ |
√ |
√ |
|
LED Light |
√ |
√ |
√ |
√ |
|
Event Map |
√ |
√ |
√ |
√ |
|
1490nm Online |
x |
√ |
√ |
√ |
|
1550nm Online |
x |
x |
√ |
√ |
|
1577nm Online |
x |
√ |
√ |
√ |

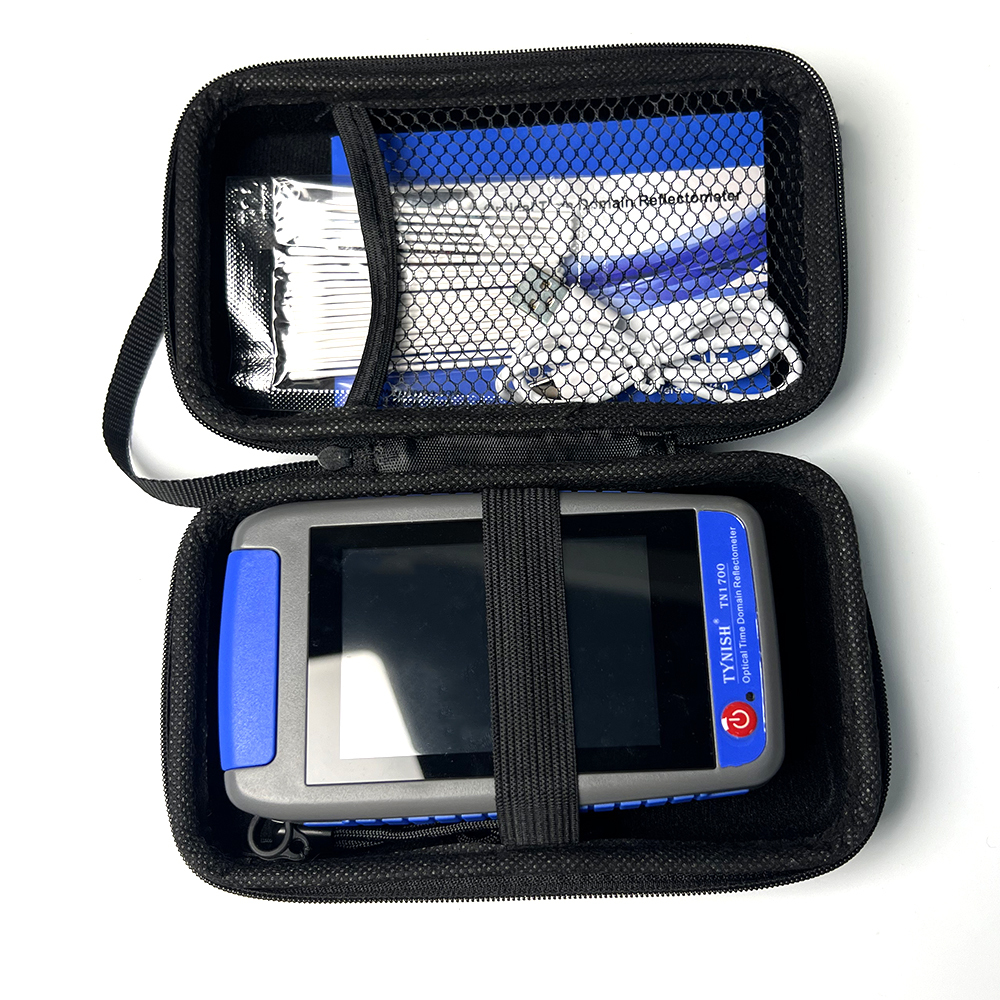

The Kit Includes: OTDR, SC Connector, User Manual, OTDRviewer Software, USB Cord
Cleaning Tool, Carrying Case, Certificate of Calibrate
Note: TN1700-P2/A22 is with Filter 1490nm and 1577nm
The power of signal online >0dBm are not allowed
The OTDR can save 500 testing results. If you insert SD card, no limit.
yes, by PC software. You can download the software in "Download" of the webpage.
yes, these models TN1700-P1, TN1700-P2, TN1700-A22 can test active fiber (live fiber, in-service fiber) because they are with filter.
| Instructions | |
| Model Number | Max 8 characters, no special characters allowed. |
| Logo | High Resolution. (.jpg, .bmp, .psd, .cdr, etc) |
| Boot Screen | 320x480 px, format .bmp, and color depth 16-bit |
| Language | Please contact sales to request the English version of the field list. |
| Model | Qty/Carton | Net Weight | Gross Weight | Size |
| TN1700 | 10 | 0.5 KG | 7 KG | 53x23x26cm |
| Model | Qty/Carton | Net Weight | Gross Weight | Size |
| TN1700 | 1 | 0.5 KG | 0.75 KG | Carton #9 |
