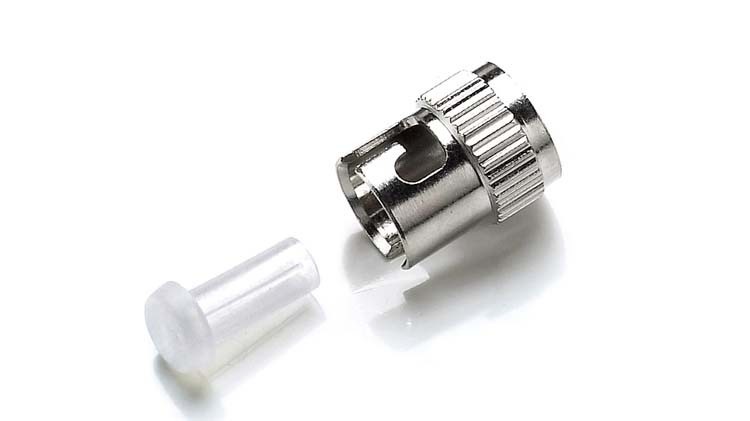

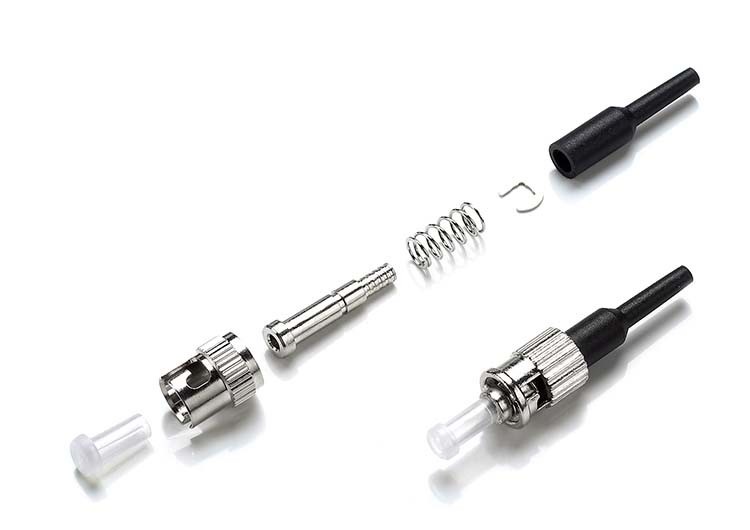

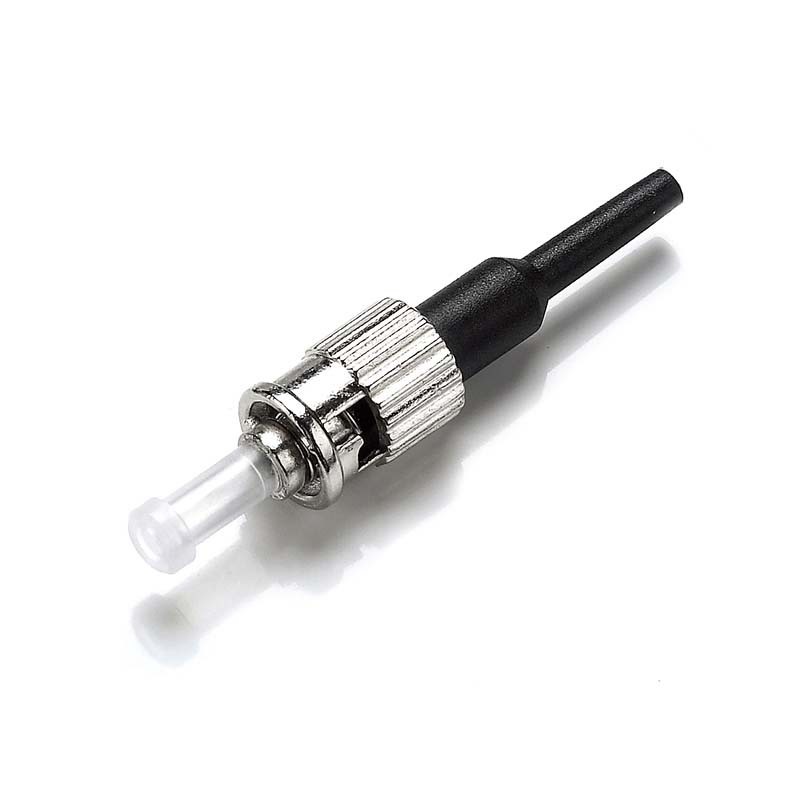

ST/UPC Epoxy Connector with 0.9mm Boot

  • ST/UPC Epoxy Connector with 0.9mm Boot
  • ST/UPC Epoxy Connector with 0.9mm Boot
  • ST/UPC Epoxy Connector with 0.9mm Boot
  • ST/UPC Epoxy Connector with 0.9mm Boot

Description

Our ST Connectors are commonly used in networking applications, for both short and long distance fiber optic applications. The ST Connector provides a versatile, reliable, and cost-effective fiber optic termination method. The design of the ST Connector enables it to be easily inserted and removed.

Features
- Low insertion loss
-Corrosion resistant body
-Precision mechanical dimension
-Meets Telecordia-GR-326-CORE specifications Ultra low back reflection
-One Piece with pre-domed ceramic ferrule is designed for easy assembly
-Fixed key and activity key can be selected
-For 900um buffer
- ROHS compliant

Applications
-Telecommunication
-LAN & WAN
-Broadband CATV
-Network FTTX.
Specifications
-Insertion loss: 0.20dB
-Return loss: >55dB (UPC)
-Boot size: 0.9mm
-Connectors type: ST Simplex
