| General | |
|
Size/Weight
|
173x82x37mm/ 350g
|
|
Display
|
3.5 Inch TFT LCD, 320x480 Resolution
|
|
Interface
|
Micro USB
|
|
Power Supply
|
5V DC, 2A; 4000mAh/3.7V Lithium battery (with air traffic certification)
|
|
Working Time
|
>12 hours (Continuous measurement); Standby>20 hours
|
|
Language
|
Chinese, English
|
|
Environmental Conditions
|
Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation)
Storage temperature and humidity: -40℃~+70℃, ≤95% (non-condensation)
|
|

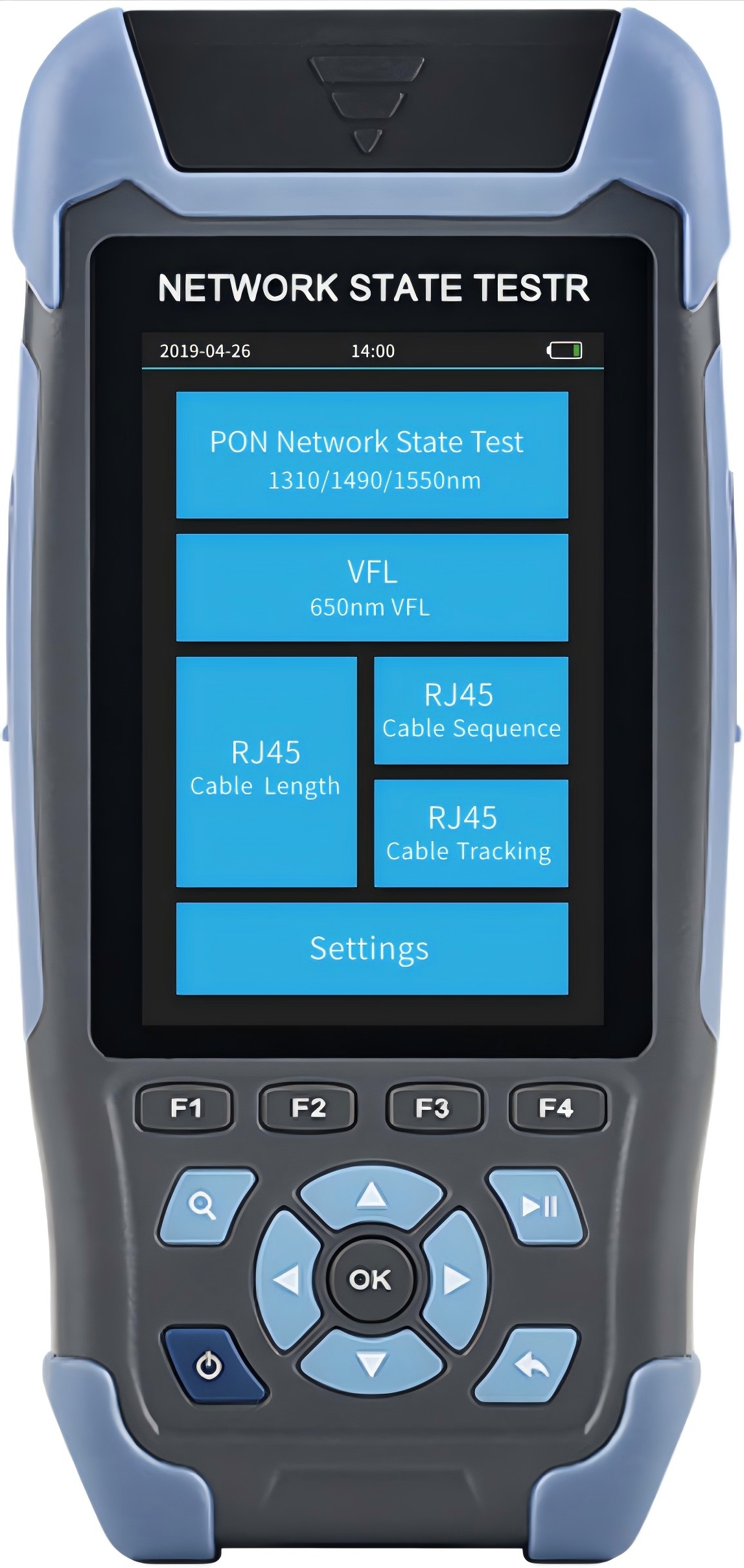

Network State Tester
|
|
|
ONT States
|
Online, Offline, ONT Fatal, ONT Bad, ONT No Power, Fiber Fall Off
|
|
Insertion Loss
|
<1.5dB
|
|
Connector
|
FC/SC/ST
|
|
PON Power Meter
|
|
|
Testing Range
|
-35 to +10dBm @1310nm (upstream)
-40 to +12dBm @1450nm (Downstream)
-40 to +25dBm @1550nm (Downstream)
|
|
Unit
|
mW/uW/nW/dBm/dB (REF)
|
|
Accuracy
|
0.5dB
|
|
Resolution
|
0.01dB
|
|
Visual Fault Locator
|
|
|
Wavelength
|
650nm
|
|
Output Power
|
10mw, CLASSIII B
|
|
Range
|
12km
|
|
Launching Mode
|
CW/1Hz/2Hz
|
|
Adapter Type
|
2.5mm Universal Adapter for FC SC ST Connectors
|
|
Rj45 Cable Tracking
|
|
|
Range
|
300m
|
|
Signal Type
|
Analog signal/Digital Signal
|
|
Signal Receiver
|
Optional
|
|
Warning Sound
|
Support
|
|
Cable Type
|
568A, 568B
|
|
Rj45 Cable Sequeence
|
|
|
Range
|
300m
|
|
Signal Type
|
Analog Signal/Digital Signal
|
|
Active Cable Test
|
Not Support
|
|
Testing Time
|
Less Than 15 Seconds
|
|
Remote Unit
|
Can be took out from bottom of the device
|
|
Rj45 Cable Length
|
|
|
Range
|
300m
|
|
Signal Type
|
Analog signal/Digital Signal
|
|
Active Cable Test
|
Not Support
|
|
Testing Time
|
Less than 15 seconds
|
