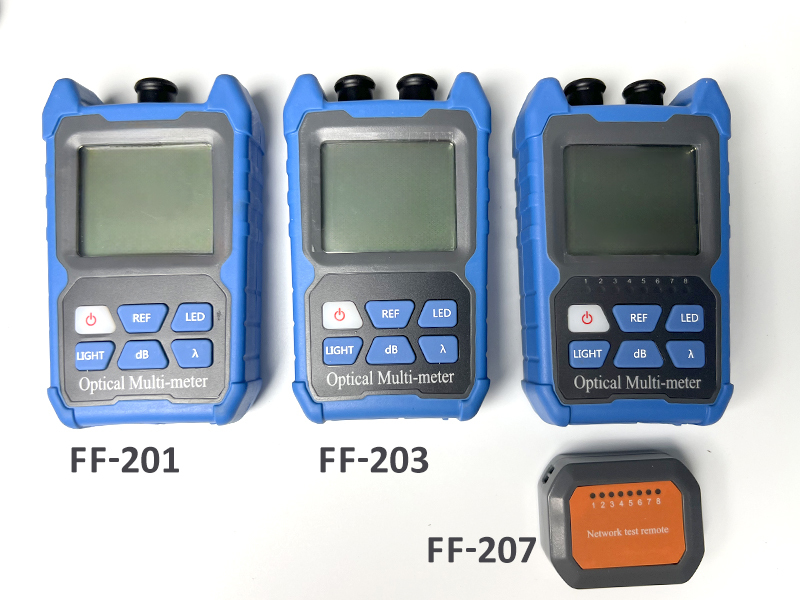

Model | Functions |
FF-201 | OPM |
FF-203 | OPM and VFL |
FF-207 | OPM VFL and RJ45 Cable Sequence |
Model | Functions |
FF-201 | OPM |
FF-203 | OPM and VFL |
FF-207 | OPM VFL and RJ45 Cable Sequence |
OPM | |
Wavelength Range | 800nm to 1700nm |
Connector | 2.5mm Universal Connector |
Detector Type | InGaAs |
Power Range | -70 to +6dBm |
Uncertainty | ±5% |
Calibrated Wavelength | 850/980/1300/1310/1490/1550/1625/1650nm |
Display Resolution | Linear Resolution 0.1% Logarithmic Resolution 0.01dBm |
VFL | |
Wavelength | 650nm |
Output Power | 2mW |
Mode | CW/1Hz/2Hz |
Connector | 2.5mm Universal |
RJ45 Cable Sequence Test | |
Cable Length | <300m |

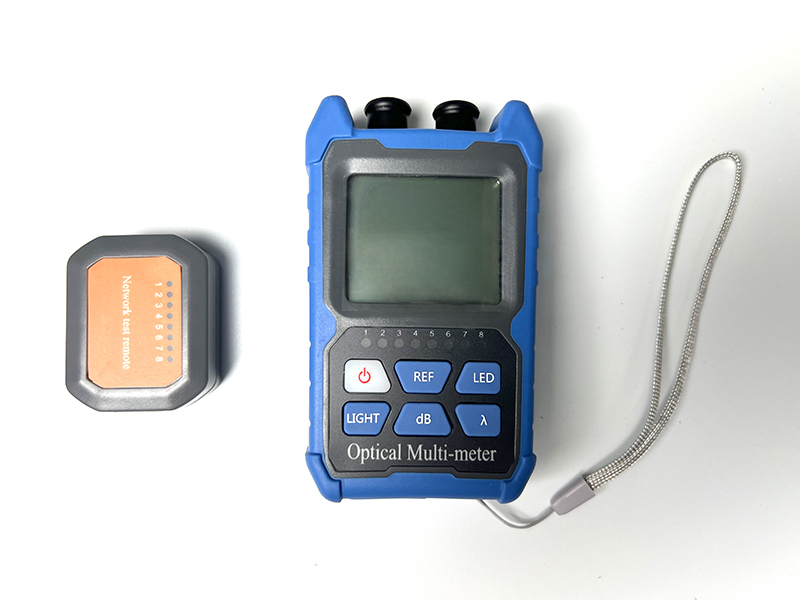

Remote Unit | Yes |
General | |
Power Supply | AAA Battery |
Auto Shutdown | 10 mins |
Operation Temperature | -10 to +50℃ |
Storage Temperature | -40 to +70℃ |
Relative Humidity | 0 ~ 95% no condensing |
Size | 112x66x30mm |
