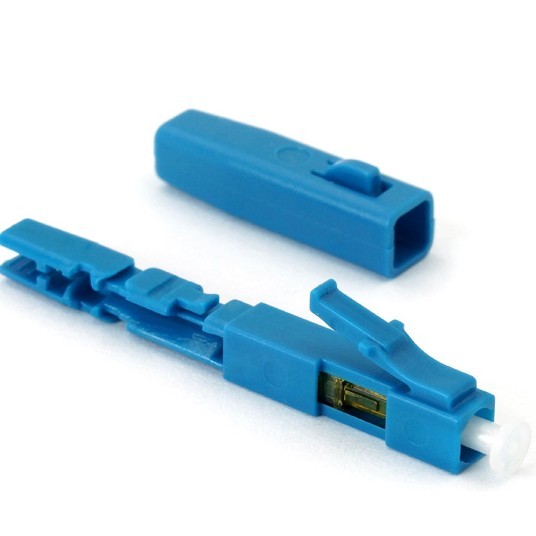

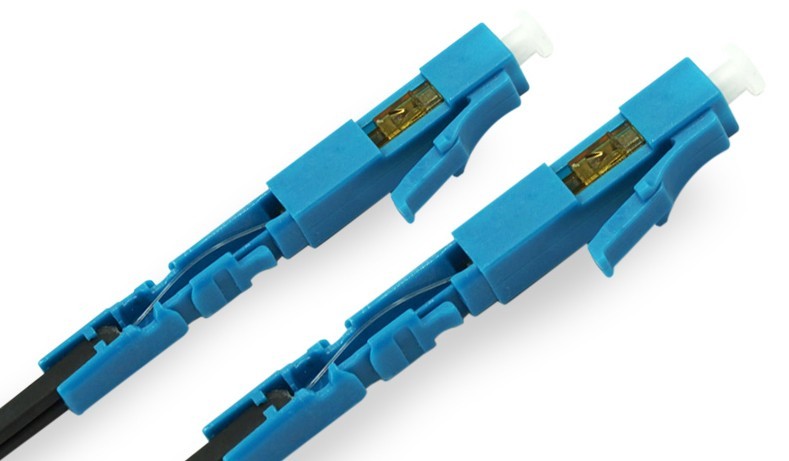

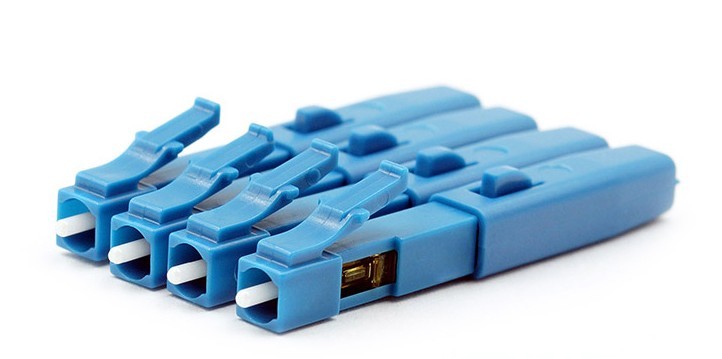

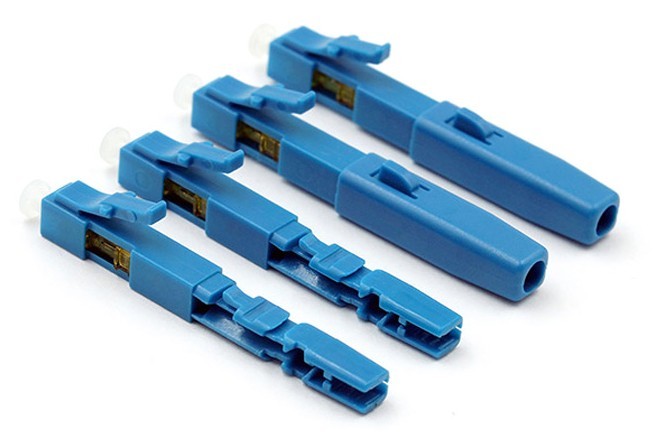

Name: LC/UPC Field Fast Assembly Connector for FTTH Flat Cable
Brand: FirstFiber Technologies
Availability: InStock
Rating: 5 (1 reviews)

Get A Quote

Add to Quote List View Quote List

Description

Features

Low insertion loss and high return loss
High reliability, and save maintenance cost
Pre-embedded fiber is polished in high quality
Can be reusable with easy disassembly and assembly
Can work stably in harsh environment, like severe coldness and dust, high temperature, high humidity, etc
Few special installation tools required, installation is simple and fast, with less than 30 seconds averagely;
low technical requirements for the operators

Applications

Telecommunication networks
FTTX, FTTH (Fiber to the Home)
Fiber testing and testing equipment
FTTH Drop Cable, 86 socket outlet, and ONU

Specifications

Connector?Type	LC/UPC
Applicable?Cable	0.9mm, 2.0mm, 3.0mm Cable; 2.0x3.0mm?FTTH?Drop?Cable
Fiber?Diameter	125um
Coating?Diameter	250um
Fiber?Mode	single?mode
Insertion?Loss	≤0.2dB?(max.?0.5dB)
Return?Loss	UPC≥50dB??
Lifespan	10?years
Tensile?Strength	>30N
Temperature?Cycling	IL<0.3dB;?RL<5dB
Mechanical?Performance	Assembly?Repeatability	≥5?times
	Drop?(1.5m?height)	≥10?times
	Durability	≥500?times
Working?Environment	Relative?Humidity	≤95%?(@±30°C)
	Atmospheric?Pressure	60kpa~160kpa
	Operating?Temperature	-40°C~+85°C
	Storage?Temperature	-40°C~+85°C
