Features
• Low insertion loss and high return loss
• High reliability, and save maintenance cost
• Pre-embedded fiber is polished in high quality
• Can be reusable with easy disassembly and assembly
• Can work stably in harsh environment, like severe coldness and dust, high temperature, high humidity, etc

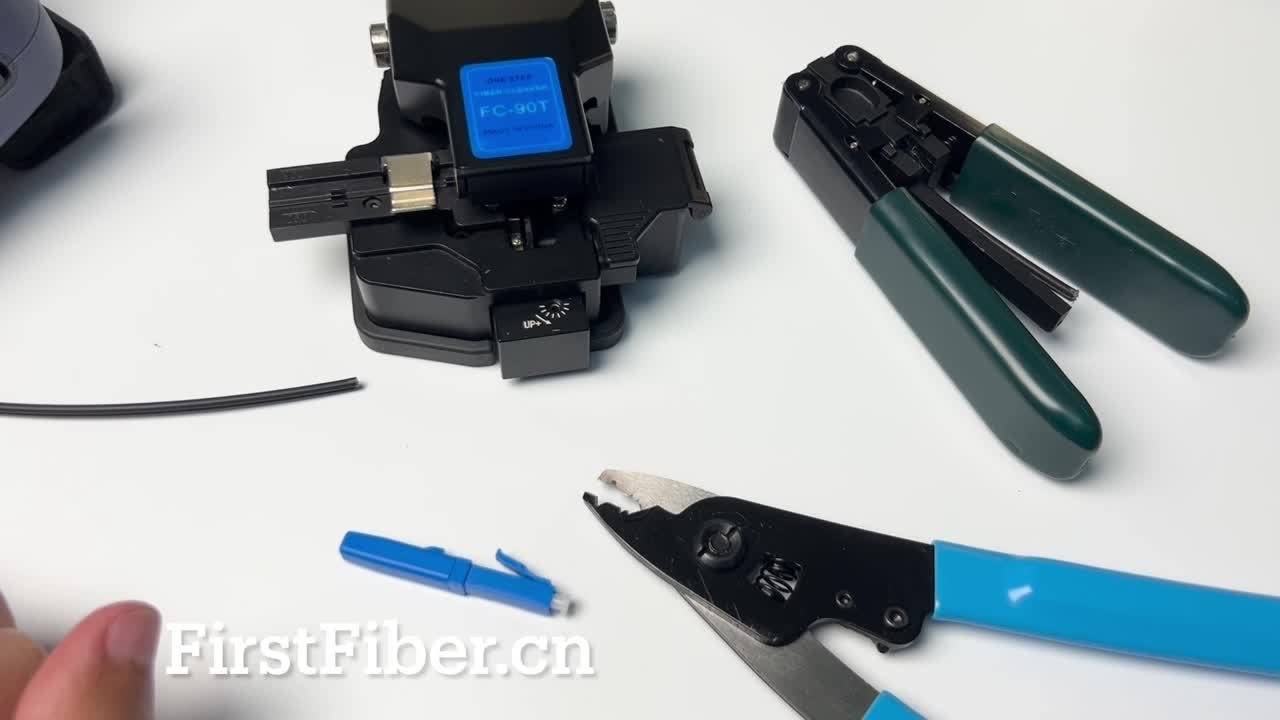

• Few special installation tools required, installation is simple and fast, with less than 30 seconds averagely;
• low technical requirements for the operators
Applications
• Telecommunication networks
• FTTX, FTTH (Fiber to the Home)
• Fiber testing and testing equipment
• FTTH Drop Cable, 86 socket outlet, and ONU
Specifications
Connector Type |
LC/UPC |
|
Applicable Cable |
0.9mm, 2.0mm, 3.0mm Cable; 2.0x3.0mm FTTH Drop Cable |
|
Fiber Diameter |
125um |
|
Coating Diameter |
250um |
|
Fiber Mode |
single mode |
|
Insertion Loss |
≤0.2dB (max. 0.5dB) |
|
Return Loss |
UPC≥50dB |
|
Lifespan |
10 years |
|
Tensile Strength |
>30N |
|
Temperature Cycling |
IL<0.3dB; RL<5dB |
|
Mechanical Performance |
Assembly Repeatability |
≥5 times |
Drop (1.5m height) |
≥10 times |
|
Durability |
≥500 times |
|
Working Environment |
Relative Humidity |
≤95% (@±30°C) |
Atmospheric Pressure |
60kpa~160kpa |
|
Operating Temperature |
-40°C~+85°C |
|
Storage Temperature |
-40°C~+85°C |
|
