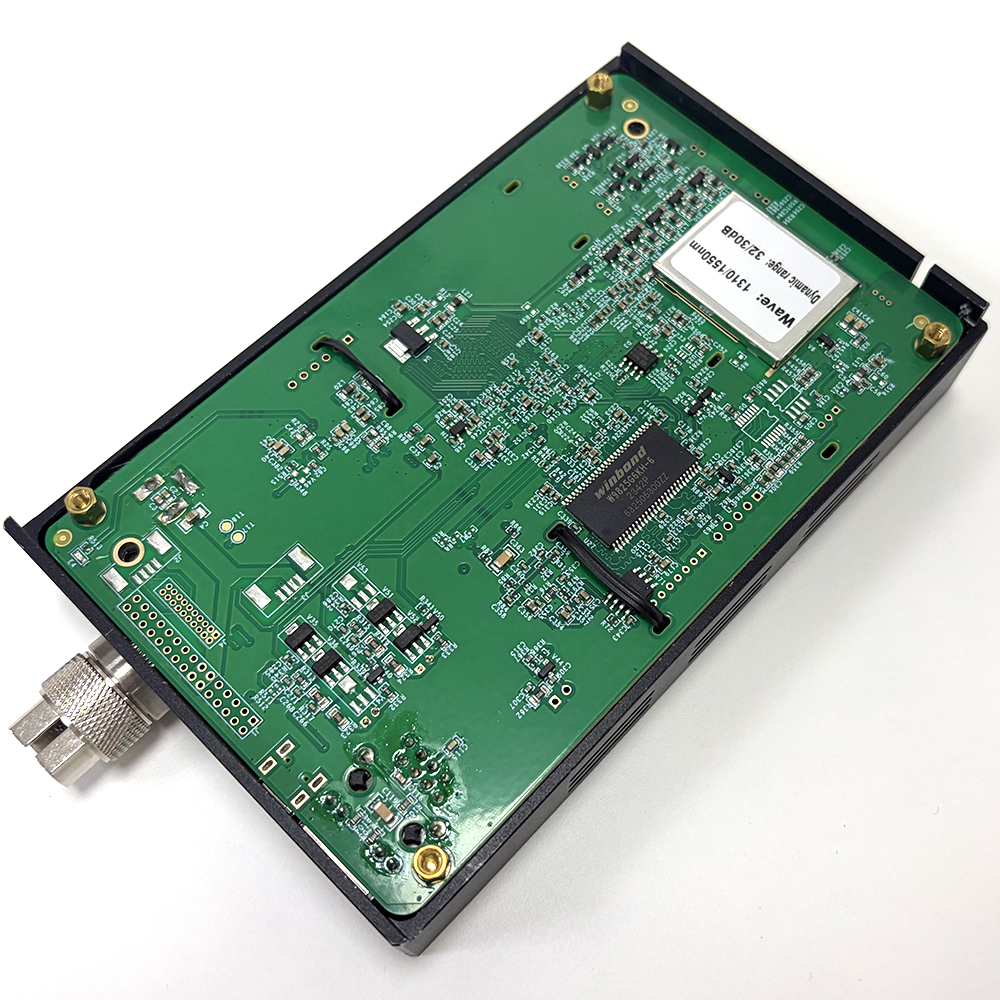

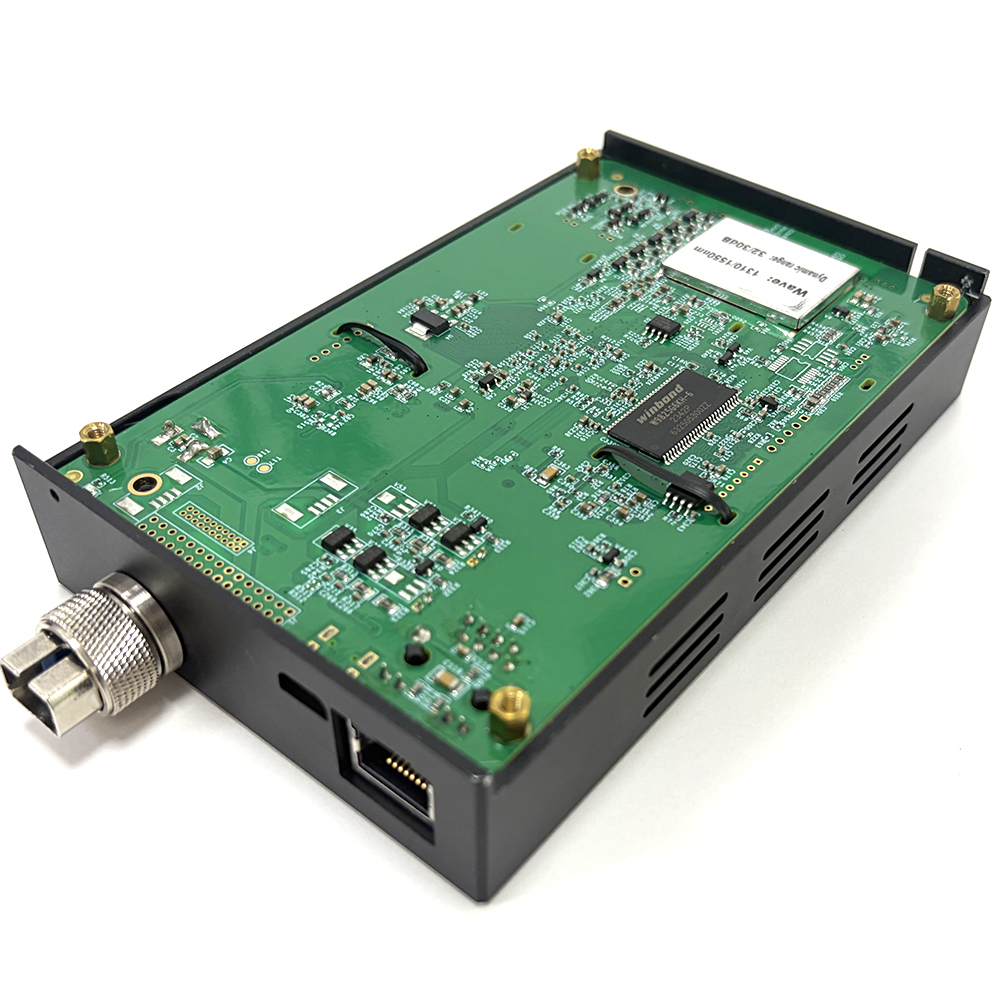

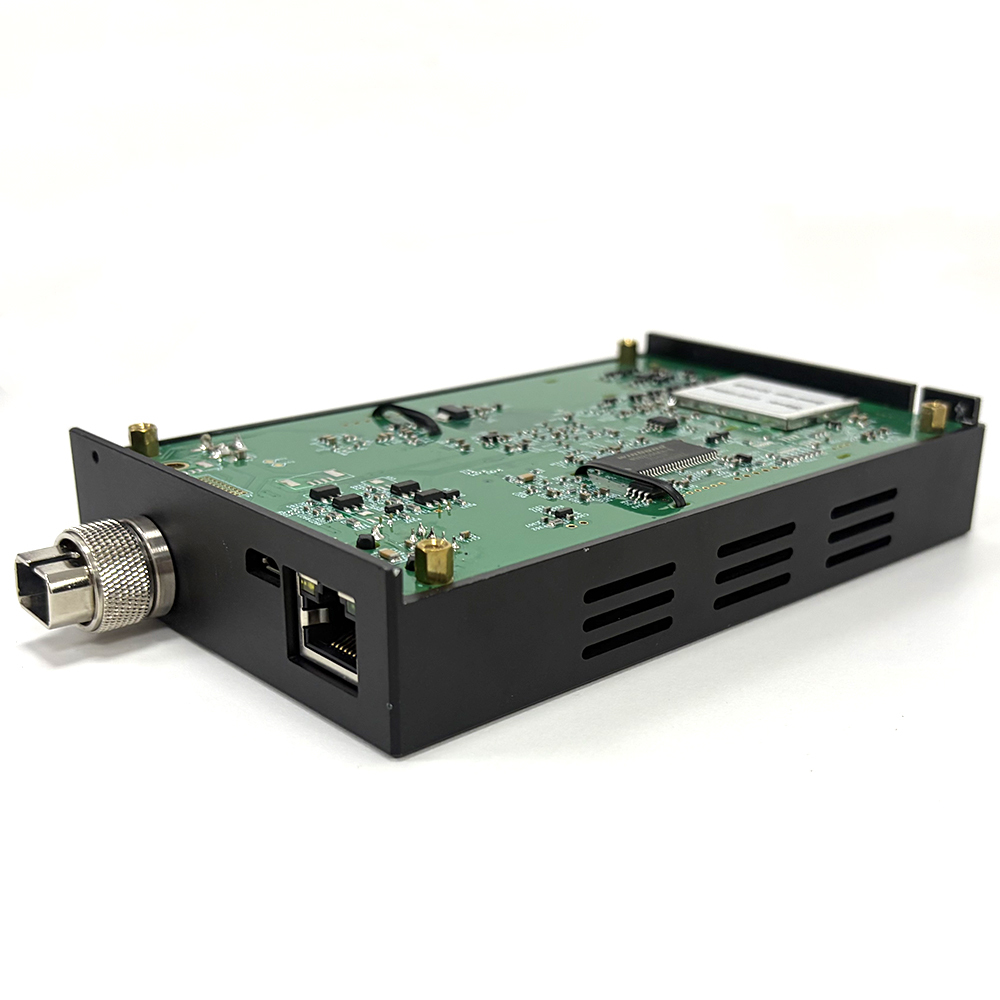

Developed by FirstFiber Technologies, the Modular Kernel OTDR integrates core functional components including optical interfaces and data processing units. It exposes an external Ethernet interface to facilitate seamless secondary development, alongside a serial port designed for basic control operations such as status monitoring and module parameter configuration. Featuring a compact, cost-effective, convenient, and highly efficient design, this module is engineered to precisely pinpoint real-time fault conditions across the entire optical fiber link. It is widely applicable to fiber deployment, routine maintenance, field operations, and failure analysis.
Operating Principle The module operates by connecting to a host computer (PC or embedded system) via Ethernet. The host computer manages the entire workflow simply by issuing measurement commands to the OTDR module and receiving the returned data.

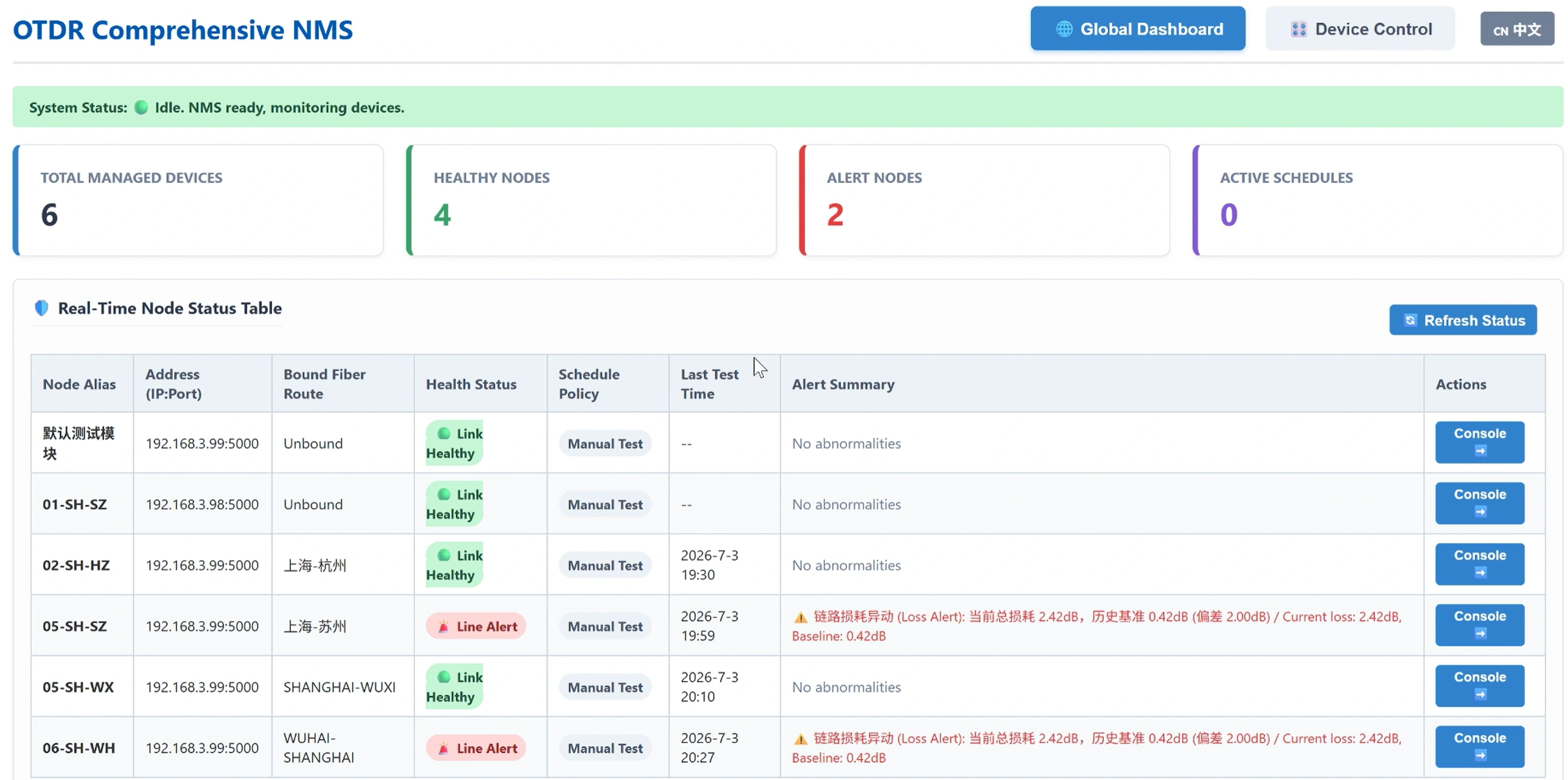

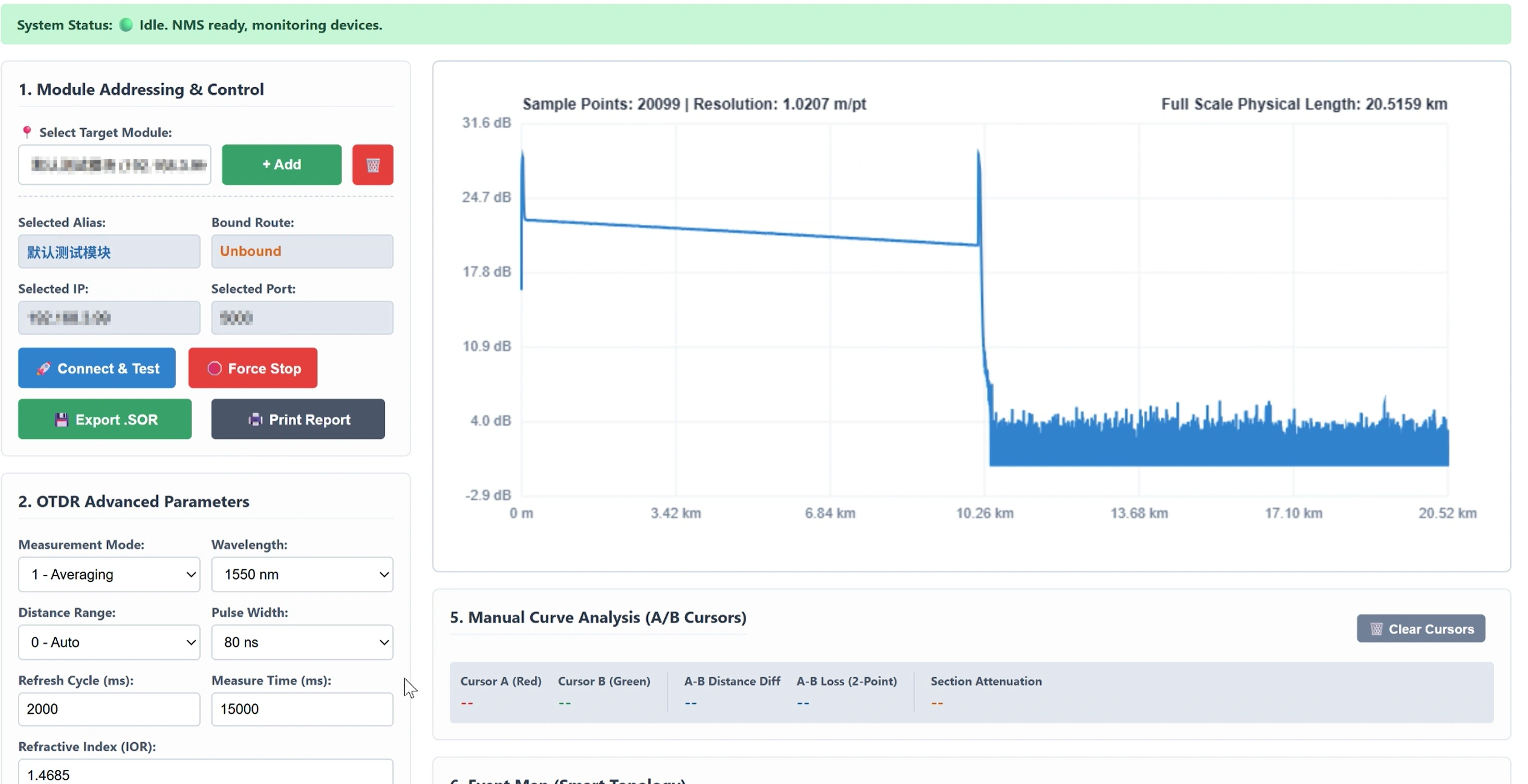

Secondary Development & Integration Supporting user-defined secondary development, this module enables users to rapidly prototype their own professional OTDR instruments or optical fiber online monitoring systems. By only requiring the development of the human-machine interface (HUI/GUI), users can significantly shorten the OTDR R&D cycle. Additionally, the module can be effortlessly embedded into other optical communication equipment or systems to provide integrated OTDR functionality.
Key Features:
Plug-and-Play Ethernet Interface: Simplifies connectivity and integration.
High-Speed Data Transmission & Analysis: Ensures rapid and efficient processing.
RS-232 Serial Interface Configuration The serial interface is primarily utilized for IP address queries and low-rate data communication. The default baud rate is 460800 bps, which can be modified via software commands.
Parameter
Value
Default Baud Rate
460800
Data bit
8
Stop bit
1
Parity bit
None
Flow control
None
Ethernet Port Configuration The Ethernet interface serves as the high-speed data communication port for the modular OTDR, primarily utilized for module control via Ethernet. The IP address configuration can be modified through either the serial port or the network port.
Type
RJ45 Ethernet Port
Speed
10/100M
IP
192.168.111.249
Mask
255.255.255.0
Gateway
192.168.111.1
Port
5000

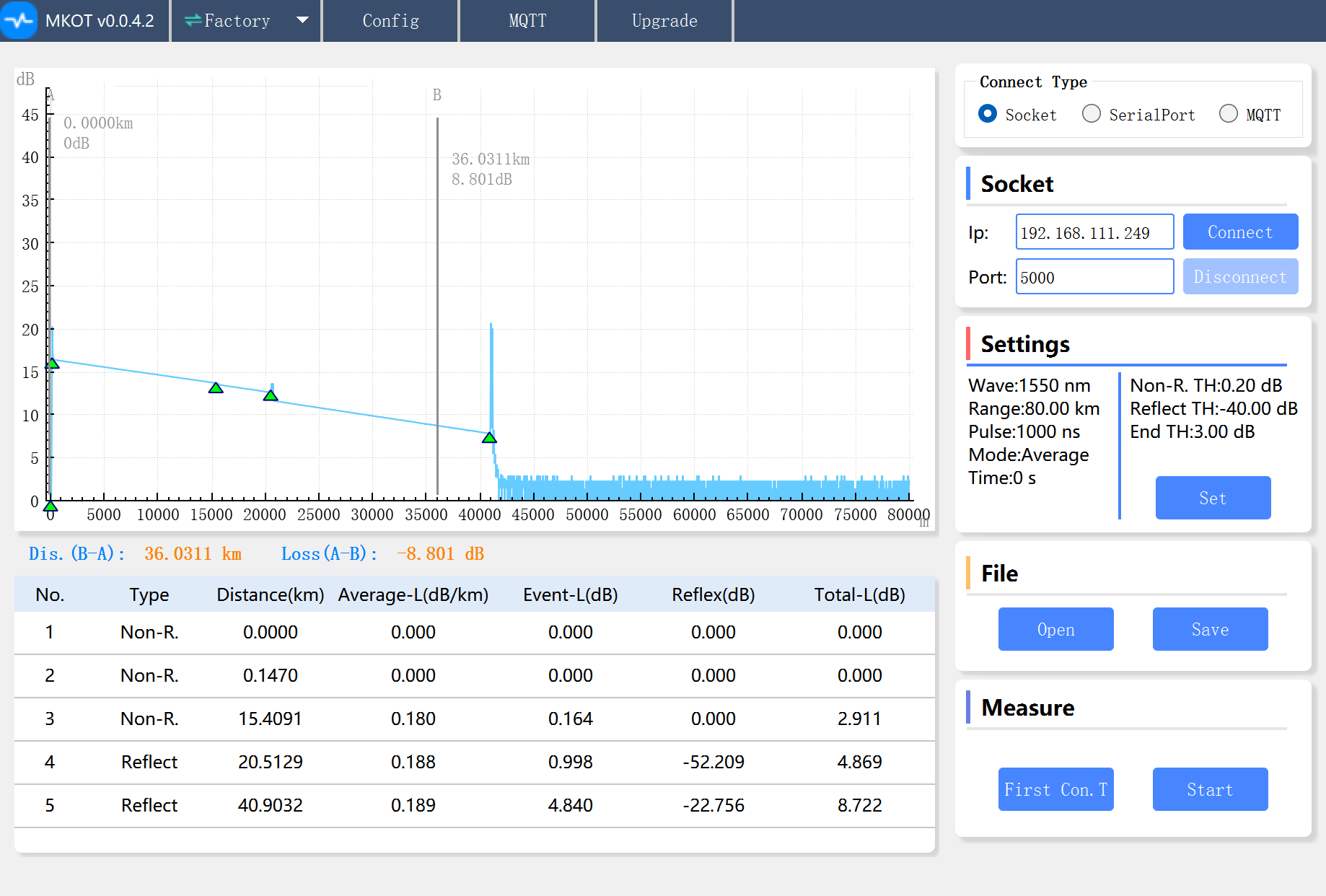

How to configure the IP address for the Modular Kernel OTDR MK1000 to enable Control by FirstFiber Technologies upper computer Software? please download the PDF.
Serial port RS-232C, default baud rate 460800 (configurable) Ethernet interface 10M/100M
Size
150(W)×90(H)×30(D)mm
Working Temperature
-10 ℃ to +50 ℃
Storage Temperature
-40 ℃ to +70 ℃
Humidity
≤ 95% (noncondensing)
Note 1. Typical Value. Pulse Width = 3 ns, Return Loss = 35 dB to 55 dB 2. Typical Value. Pulse Width = 3 ns, Return Loss = 55 dB
Model
Model
Wavelength
Dynamic Range
MK1000-S1
1550nm
26dB
MK1000-S2
1550nm
30dB
MK1000-S3
1550nm
35dB
MK1000-S4
1550nm
40dB
MK1000-S5
1550nm
43dB
MK1000-A26
1625nm
26dB
MK1000-A30
1625nm
30dB
MK1000-A35
1625nm
35dB
MK1000-A40
1625nm
40dB
MK1000-A43
1625nm
43dB
MK1000-B26
1650nm
26dB
MK1000-B30
1650nm
30dB
MK1000-B35
1650nm
35dB
MK1000-B40
1650nm
40dB
MK1000-B43
1650nm
43dB
MK1000-D28
1310/1550nm
28/26dB
MK1000-D32
1310/1550nm
32/30dB
MK1000-D37
1310/1550nm
37/32dB
MK1000-D42
1310/1550nm
42/40dB
MK1000-D45
1310/1550nm
45/43dB
MK1000-M1
850/1300nm
24/26dB
MK1000-T2
1310/1550/1625nm
42/40/40dB
MK1000-T3
1310/1550/1650nm
42/40/40dB
MK1000-Q1
1310/1550/850/1300nm
28/26/24/26dB
If we integrate your OTDR module into our own monitoring system via software, can you provide the complete API/SDK?
Yes, we are highly supportive of system integration, and we offer a much more flexible solution than a standard SDK. We can provide our underlying TCP/IP communication protocol along with the 16-bit Hexadecimal (Hex) control command codes. This means your developers can ignore any operating system dependencies or specific library constraints. Whether your monitoring system runs on Linux, Windows, or an embedded RTOS, your software can directly communicate with and control our OTDR hardware by sending standard network sockets. We will provide the protocol documentation detailing how to trigger a scan, set pulse widths, and retrieve the raw data stream.
Standard Packaging
Model
Qty/Carton
Net Weight
Gross Weight
Size
MK1000
10
0.5 KG
7 KG
53x23x26cm
Non-Standard Packaging
Model
Qty/Carton
Net Weight
Gross Weight
Size
MK1000
1
0.5 KG
0.75 KG
23x13x16cm
At FirstFiber Technologies, all test instruments are dispatched via DHL Air Express, reaching global destinations within 3 to 7 days. Please note that the downloadable shipping price list is for reference only. For precise shipping costs, please refer to the final quote provided by your sales representative.
