It is an indoor optical terminal box that used in single-mode optical fibre networks for FTTH. It implements the connection between the feeder network of the service operators and the (vertical) distribution network within the building. The box allows sharing with other carriers the distribution and dispersion networks installed by the first carrier.

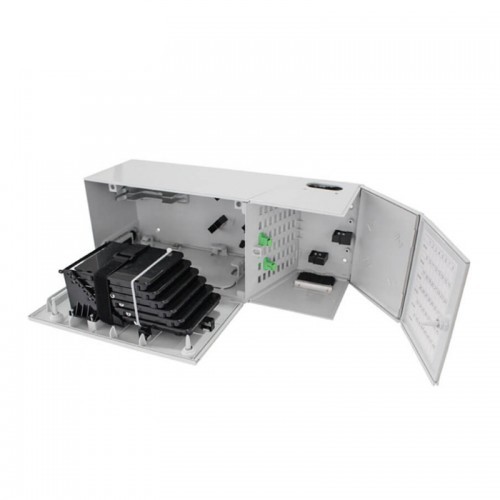

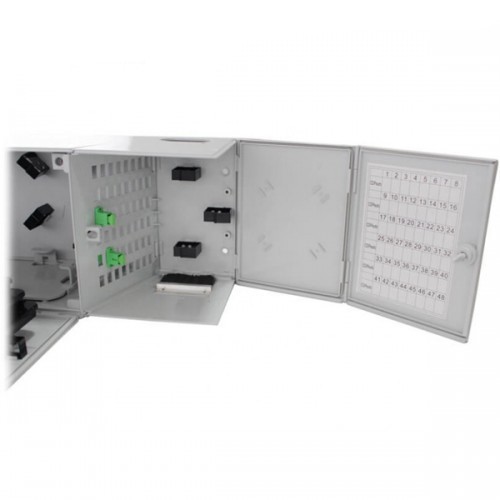

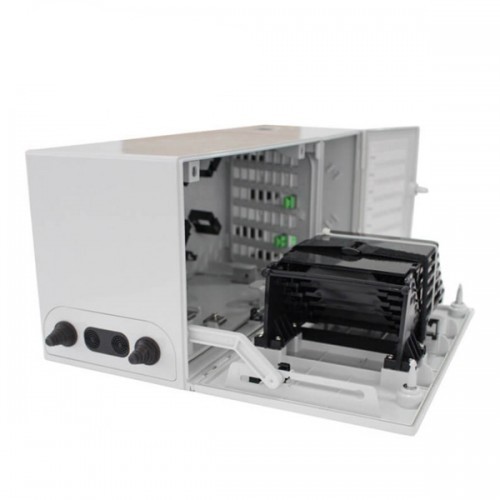

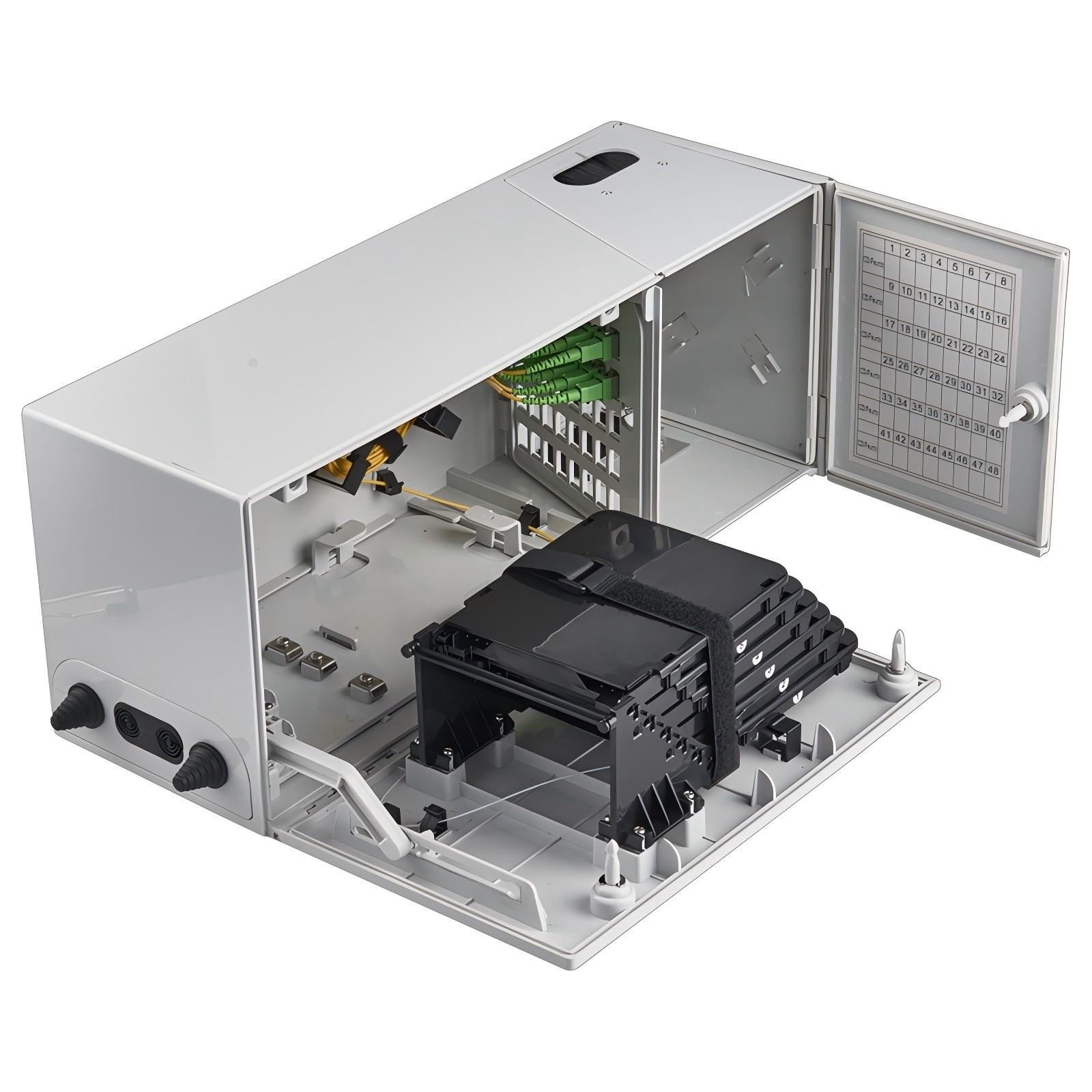

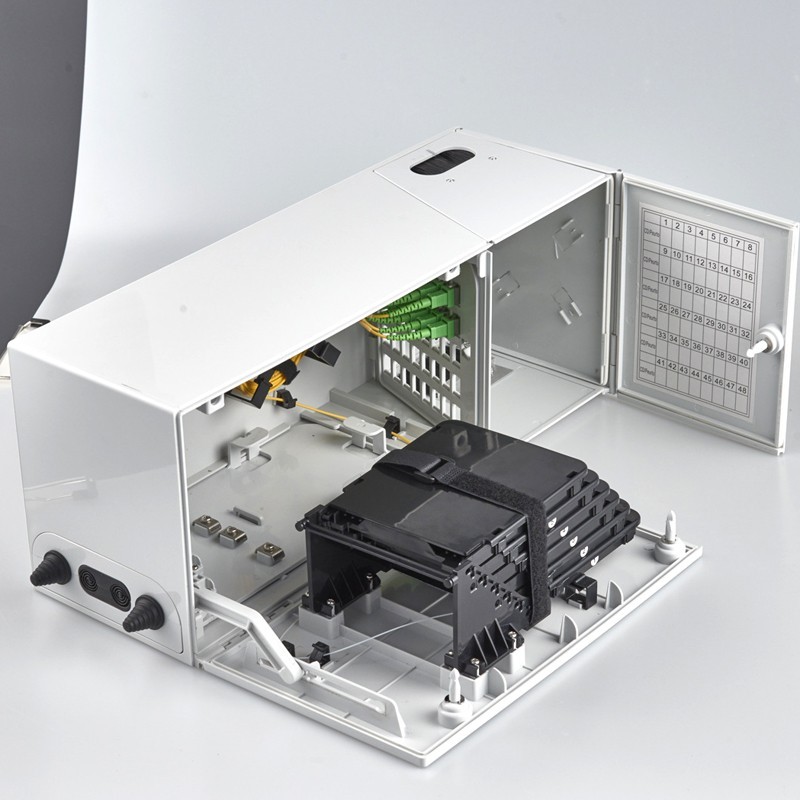

The box divides into two areas: The left area is for cable fibers splicing, storing and splitting. The right area is for connection of patch cords. Each area has an independent door, which can be locked by a triangular key.

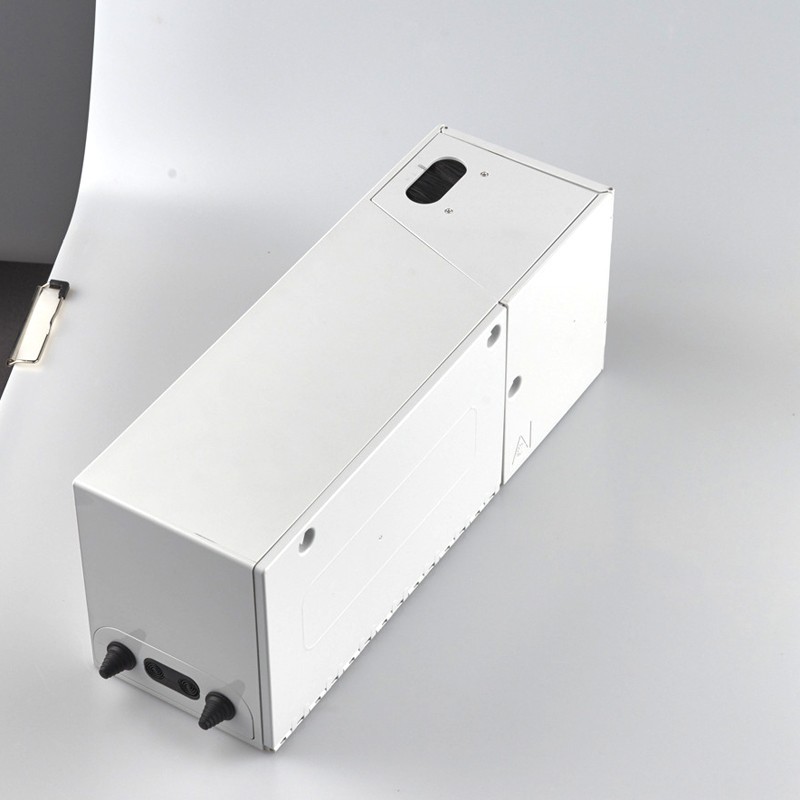

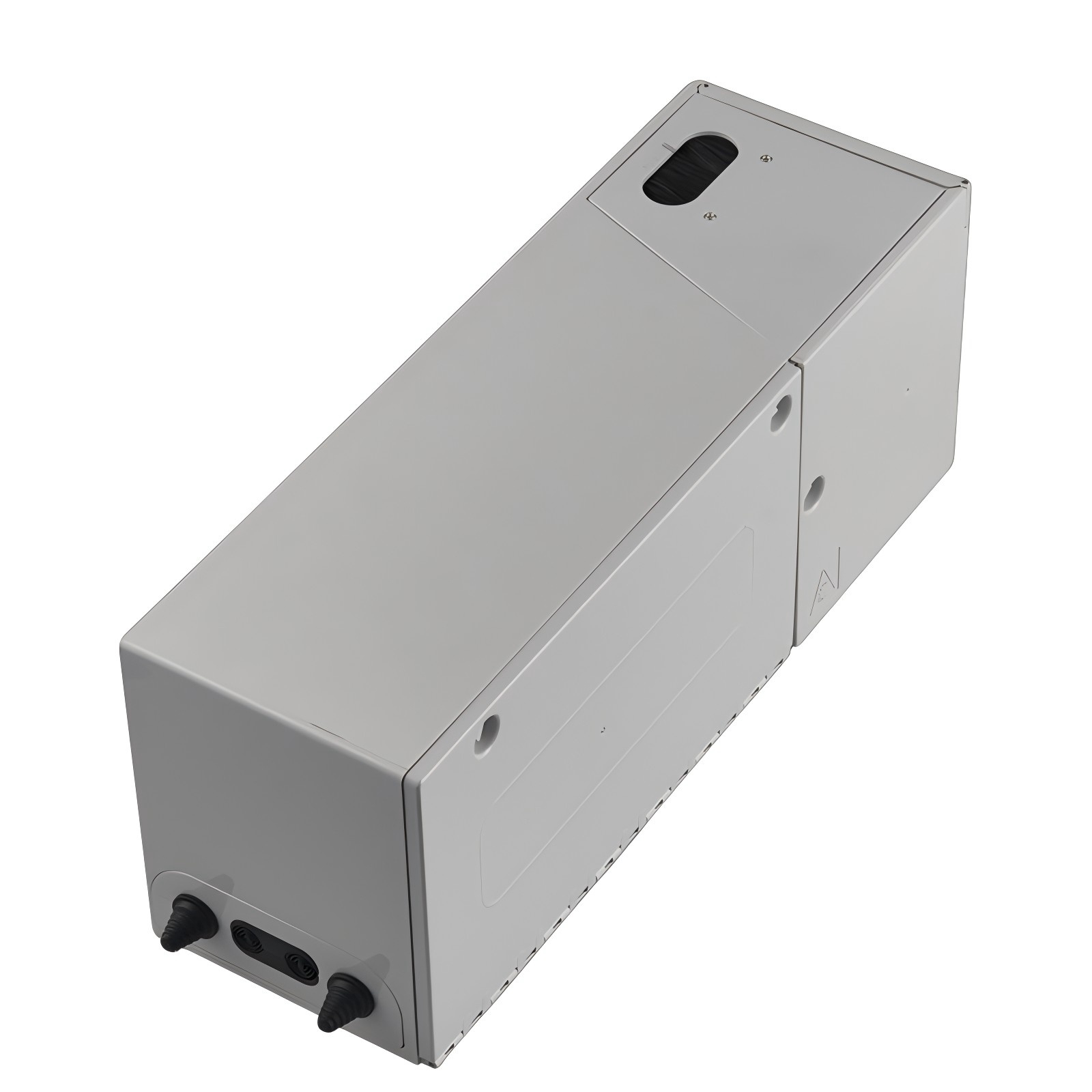

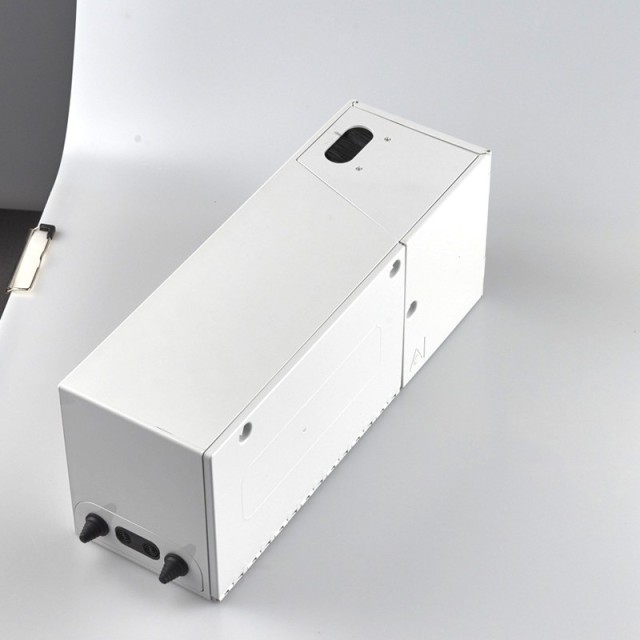

The box is a cuboid box with modular design. It can be stacked together to use. Usually the upmost one is for building network. The followed ones are for operator network.
Features
- Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP30.
- Optical cables access left with lashing system.
- Integrating fiber splicing, coupling and stirring in one box.
- Separate compartments for splicing and patching. Each compartment is equipped with a triangle key system.
- Distribution panel can be flipped up, easy for maintenance and installation.
- This box can be installed by the way of wall-mounted, suitable for indoor uses.
|
Dimensions and Capability |
|
|
Adapter Capacity |
SC simplex 48 cores |
|
Dimensions (W*H*D) |
450mm*182mm*150mm |
|
Number of Cable Entrance/Exit Ports |
3 |
|
Diameter of Fiber Cable |
Max diameter 18mm |
|
Capacity of Splice Tray |
8F |
|
Optional Accessories |
Adapters, pigtails, heat shrink tubes |
|
Operation Conditions |
|
|
Working Temperature |
-25℃ to +55℃ |
|
Relative Humidity |
5% to 95% |
|
Atmospheric pressure |
70kPa to 106kPa |
