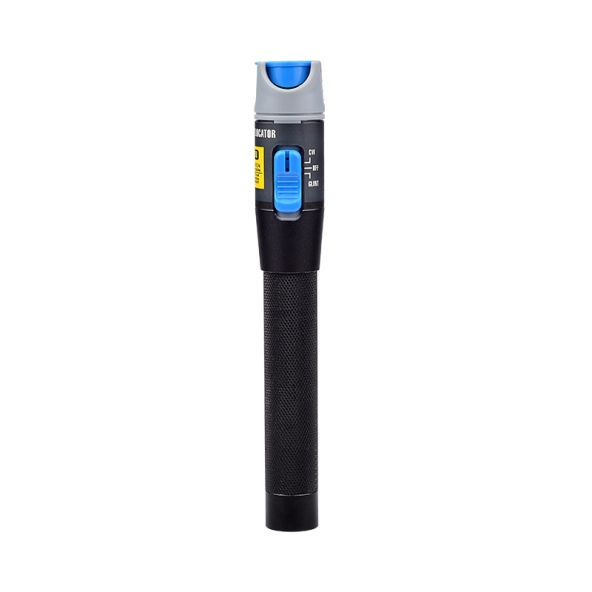

FF-VFL-C Visual Fault Locator totally complies with the human engineering. It's small in size, easy to operate, portable and integrated with a launching indicator.

FF-VFL-C Visual Fault Locator is usually used to inspect the damaged or broken point of a optical fiber, cable, patchcord and etc. If the inspected fiber does have a defect, user could find the visual laser at the broken or damaged point.

It is suitable for both single mode and multimode fibers. The performance of the visual fault locator will act a little different on different fiber coat and color.

Features

- Finding fiber breakpoint, poor connections, bending or cracking

- End-to-end visual fiber identification

- Constant & stable output power

- Long battery life

- Operates either in CW or Pulsed

- Pocket size and light weight

Specification

model	FF-VFL-C5	FF-VFL-C15	FF-VFL-C20	FF-VFL-C30
wavelength	650nm
emitter type	FP-LD
output power	5mW	15mW	20mW	30mW
detecting range	5km	10km	16km	20km
Optical Connector	2.5mm universal connector, 1.25 adapter optional
Operating Mode	CW/2Hz
Power Supply	2 pcs of 1.5V AA batteries
Battery Life (CW)	13 hours	6 hours	5 hours	3 hours
Battery Life (2Hz)	19 hours	10 hours	7 hours	5 hours
working temperature	-0°C~+60°C; <90%RH
storage temperature	-20°C~+70°C; <90%RH
Dimension	Ø26 x 175mm
Weight	170g (without battery)
