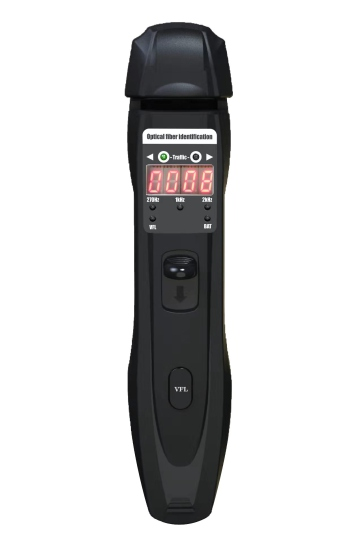

Optical Fiber Identifier
|
|
|
Identified WL Range
|
800-1700nm
|
|
Identified Signal Type
|
CW/270Hz/1kH/ 2kHz
|
|
Detector Type
|
InGaAs
|
|
Adapter Type
|
Universal Adapter for 250um, 900um, 2mm, 3mm Indoor Cable
|
|
Signal Direction
|
Left & Right LED
|
|
Test Range(Direction)
|
-48 ~ +10dBm
|
|
Test Range(Power)
|
-50 ~ +10dBm
|
|
Frequency Test Range
|
-25 ~ +10dBm @0.9mm, 2.0mm, 3.0mm Cables
-10 ~ +10dBm @0.25mm Cable
|
|
Insertion Loss (Typical)
|
0.8dB (1310nm), 2.5dB (1550nm)
|
|
Visual Fault Locator
|
|
|
Output Power
|
2mW
|
|
Wavelength
|
650nm
|
|
Connector
|
2.5mm Universal Connector
|
|
Frequency
|
CW/1Hz/2Hz
|
|
Optical Power Meter
|
|
|
Wavelength Range
|
800~1700nm
|
|
Connector
|
2.5mm Universal Connector
|
|
Detector Type
|
InGaAs
|
|
Measurement Range
|
-70~+6dBm or -50~+26dBm
|
|
Uncertainty
|
±5%
|
|
Calibrated Wavelength
|
850/980/1300/1310/1490/1550/1625/1650nm
|
|
Display Resolution
|
0.01dBm
|
|
Others
|
|
|
Power Supply
|
2x AA Battery
|
|
Operating Temperature
|
-10 °C to +50 °C
|
|
Storage Temperature
|
-40°C to +70 °C
|
|
Dimension
|
195x30x27mm
|
|
Weight
|
200g
|
