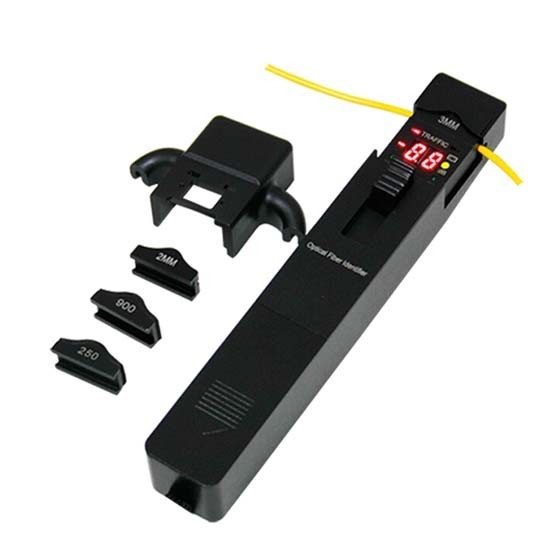

FF-3306B Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffice is present,the intermittently audible tone is activated.

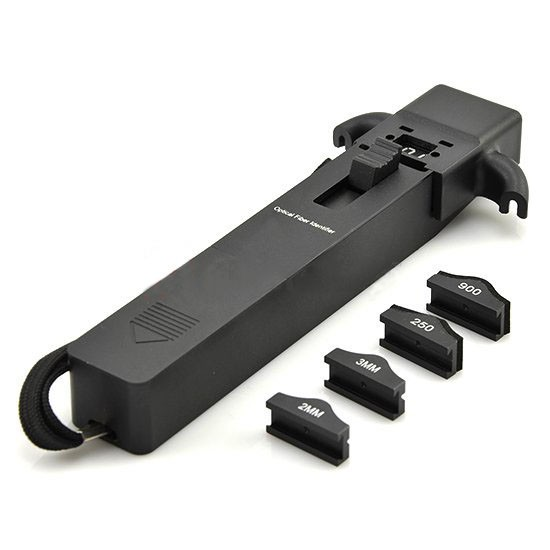

The FF-3306B optical fiber identifier alsor recogize the modnulation like,270Hz,1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated.There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0.
Features
- Easy-to-use with “ONE KEY” operation.
- Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
- Displays the relative core power
- More accurate test with Sunshade
- Easy-to-replace adaptors
- Durable metal housing and quality construction
- Lower power indication
Specifications
|
Type |
FF-3306B |
|
|
Identified Wavelength Range |
800-1700 nm |
|
|
Identified Signal Type |
CW, 270Hz±5%，1kHz±5%，2kHz±5% |
|
|
Detector Type |
Ø1mm InGaAs 2pcs |
|
|
Adapter Type |
Ø0.25 (Applicable for Bare Fiber)，Ø0.9 (Applicable for Ø0.9 Cable ) |
|
|
Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable ) |
||
|
Signal Direction |
Left & Right LED |
|
|
Singe Direction Test Range (dBm, CW/0.9mm bare fiber) |
-46~10(1310nm) |
|
|
-50~10(1550nm) |
||
|
Signal Power Test Range (dBm, CW/0.9mm bare fiber) |
-50~+10 |
|
|
Signal Frequency Display (Hz) |
270, 1k, 2k |
|
|
Frequency Test Range (dBm, Average Value) |
Ø0.9, Ø2.0, Ø3.0 |
-30~0 (270Hz,1KHz) |
|
-25~0 (2KHz) |
||
|
Ø0.25 |
-25~0 (1KHz,2KHz) |
|
|
-20~0 (2KHz) |
||
|
Insertion Loss(dB, Typical Value) |
0.8 (1310nm) |
|
|
2.5 (1550nm) |
||
|
Alkaline Battry(V) |
9 |
|
|
Operating Temperature(℃) |
-10－+60 |
|
|
Storage Temperature(℃) |
-25－+70 |
|
|
Dimension (mm) |
196X30.5X27 |
|
|
Weight (g) |
200 |
|
Standard Packages
|
MODEL |
INCLUDES |
|
FF-3306B |

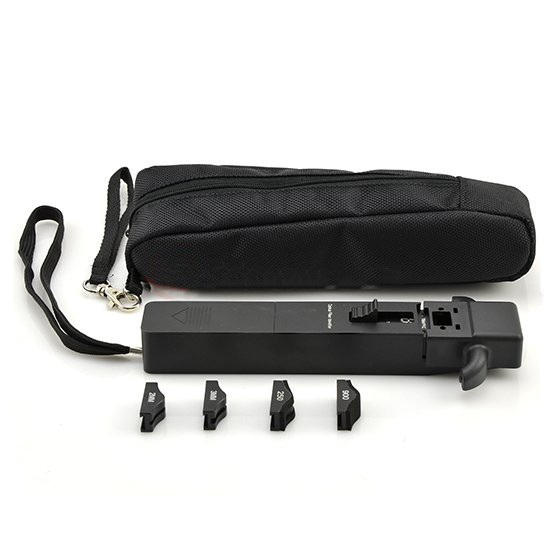

FF-3306B Optical Fiber Identifier, 4pcs adapter heads, Sunshade, Alkaline battery, User Manual, Cotton Stick and Soft Carrying case. |
