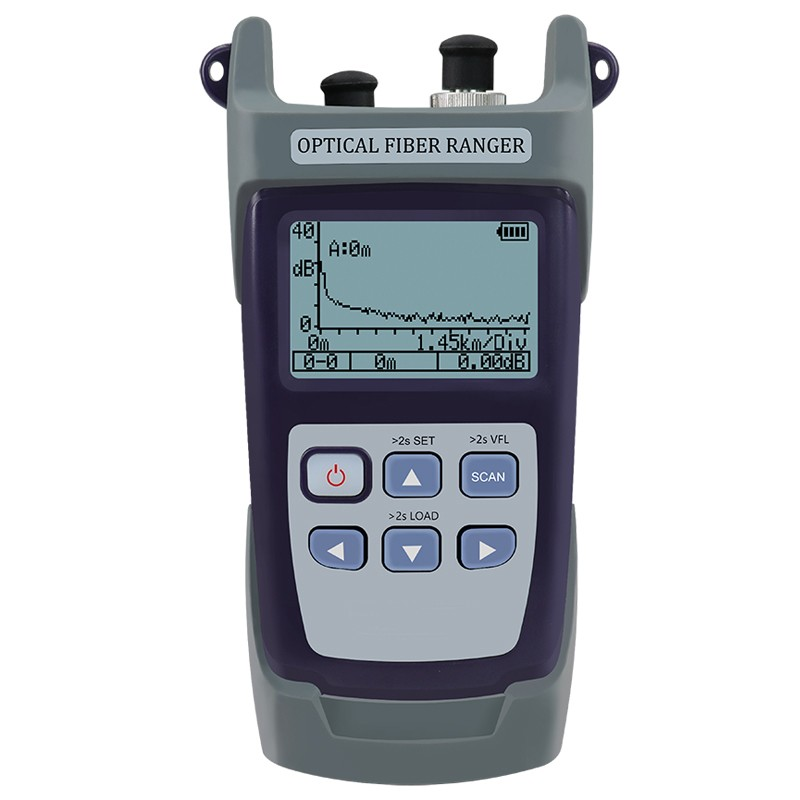

The Optical Fiber Ranger is the most portable test instrument in the industry. It adopts OTDR technical principles and integrates the powerful analysis software, which enables the fiber ranger detect fiber faults location more accurate and easy.
Fiber Ranger is used to find break point along fiber cable.
Features
- Portable, rugged, lightweight; Easy to use.
- More accurate testing results and better repeatability.
- Automatic Pulse Width Control design to ensure a convenient operation.
- Easy to identify the faults location.
- Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.
- Dust, shock proof, designed for field use
- Long battery life.
Specifications
Operating Wavelength
1550nm
Fiber Type
9/125um SM Fiber
Optical Connector Type
FC/PC
Detector Type
InGaAs
Dynamic Range
18dB
Max.Display Distance
60km (1dB)Reflection Event
20km (2.5dB) None-reflection Event
Measurement Unit
m/km
Event Dead Zone
3m
Attenuation Dead Zone
15m
Wavelength of VFL
650nm
Output Power of VFL
2mW
Power Supply
3pcs of AA Batteries
Battery Operating Time
5000 measurements
Working Temperature
-10~40 ℃
Storage Temperature
-40~+70℃
Humidity
0~85%(Non-condensation)
Dimensions
186*100*50mm
Weight
280g
