The Kit Includes
- CWDM Optical
- Power Meter,
- RJ45 tracker,
- USB cord,
- User Manual,
- Power Charger,
- Carrying Bag
|

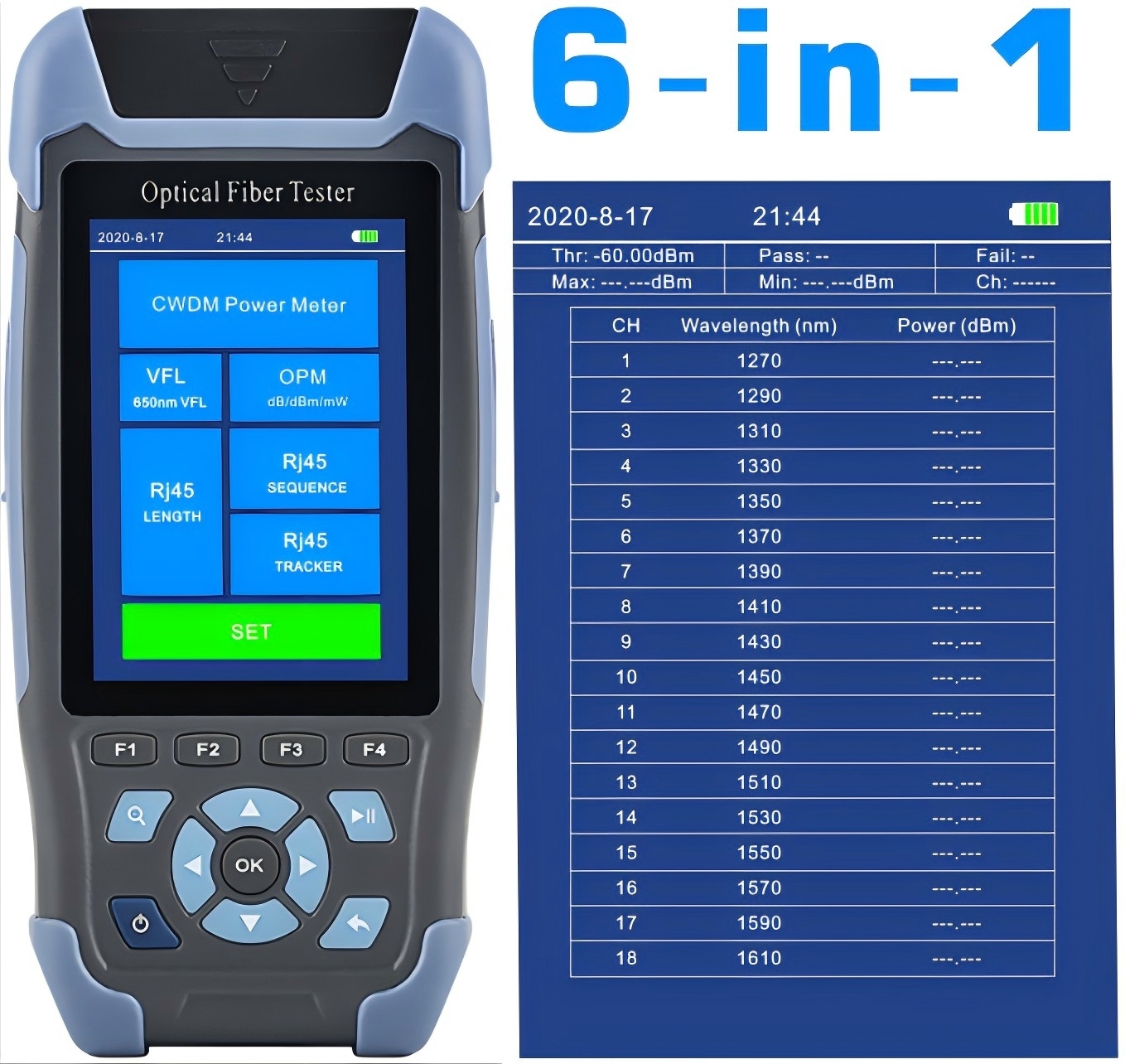

CWDM Power Meter |
|
|
Detector Type |
InGaAs |
|
Fiber Type |
SMF 9/125um |
|
Wavelength |

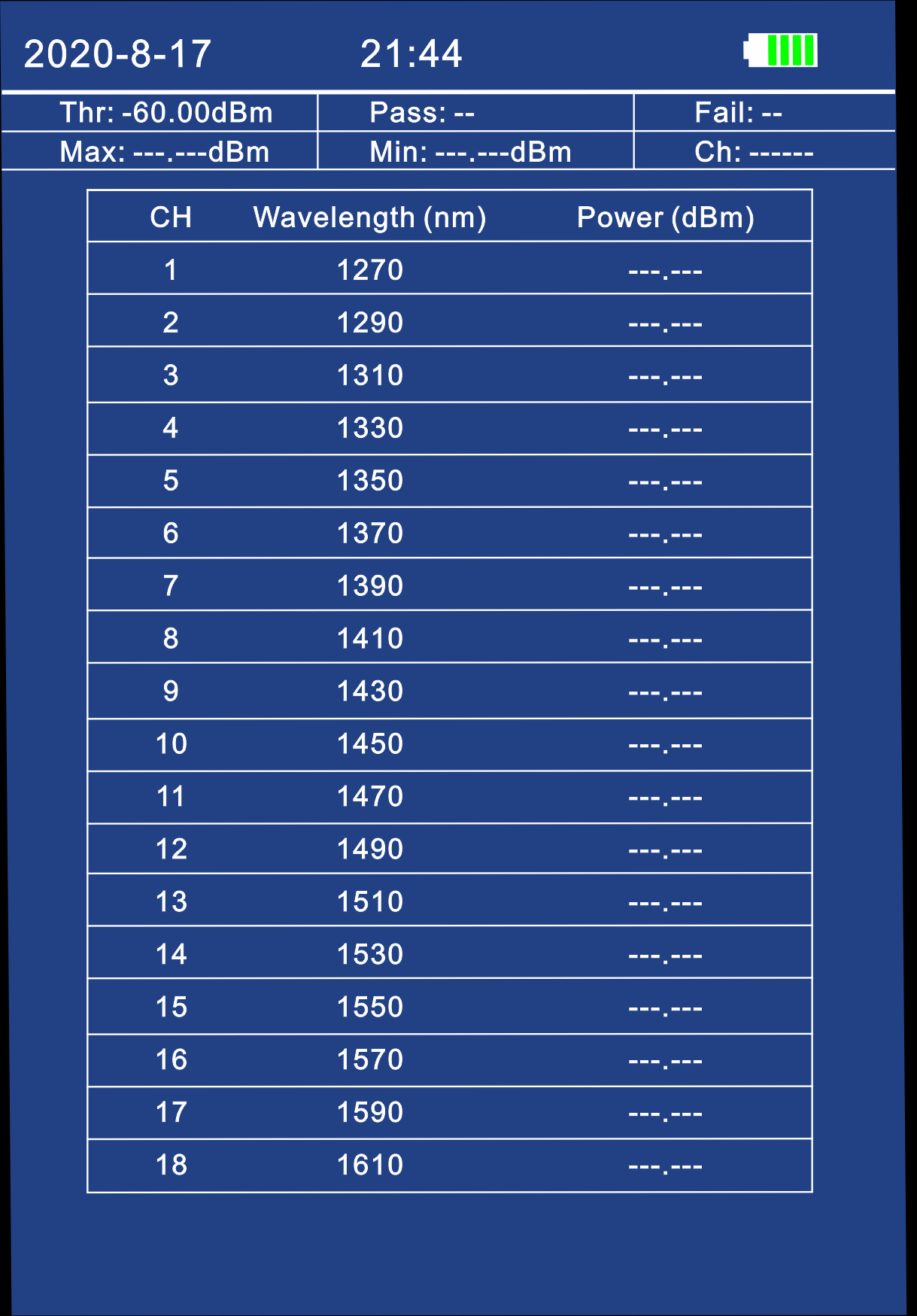

FF-3225A: 1270nm to 1370nm (6 Channels) FF-3225B: 1270nm to 1610nm (18 Channels) |
|
Power Range |
-70 to +10dBm |
|
Channel Spacing |
20nm |
|
Channel Band Pass |
6.5nm |
|
Power Resolution |
0.01dB |
|
Power Accuracy |
0.5dB |
|
Return Loss |
>45dB |
|
Isolation of adjacent Channel |
>25dB |
|
Unit |
mW/uW/nW/dBm/dB(REF) |
|
Data Storage |
1000 |
|
Normal Optical Power Meter |
|
|
Calibrated Wavelength |
850/980/1300/1490/1550/1625/1650nm |
|
Power Range |
-70 to +10dBm |
|
Unit |
mW/uW/nW/dBm/dB(REF) |
|
Accuracy |
0.25dB(5%) |
|
Resolution |
0.01dB |
|
Visual Fault Locator |
|
|
Wavelength |
650nm |
|
Output Power |
10mW |
|
Mode |
CW/1Hz/2Hz |
|
General |
|
|
Display |
3.5 inch LCD,320x480 |
|
Power Supply |
Li-Battery: 3.7V, 4000mAh, Adapter: 5V 2A DC |
|
Operation Temperature |
-10 to +50 oC |
|
Storage Temperature |
-40 to +70 oC |
|
Relative Humidity |
0 ~ 95% no Condensing |
|
Size |
173x82x37mm |
