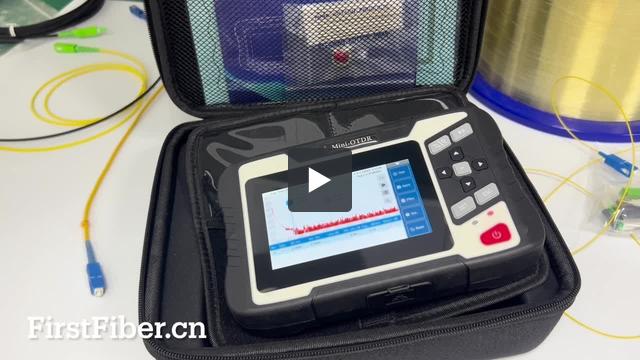

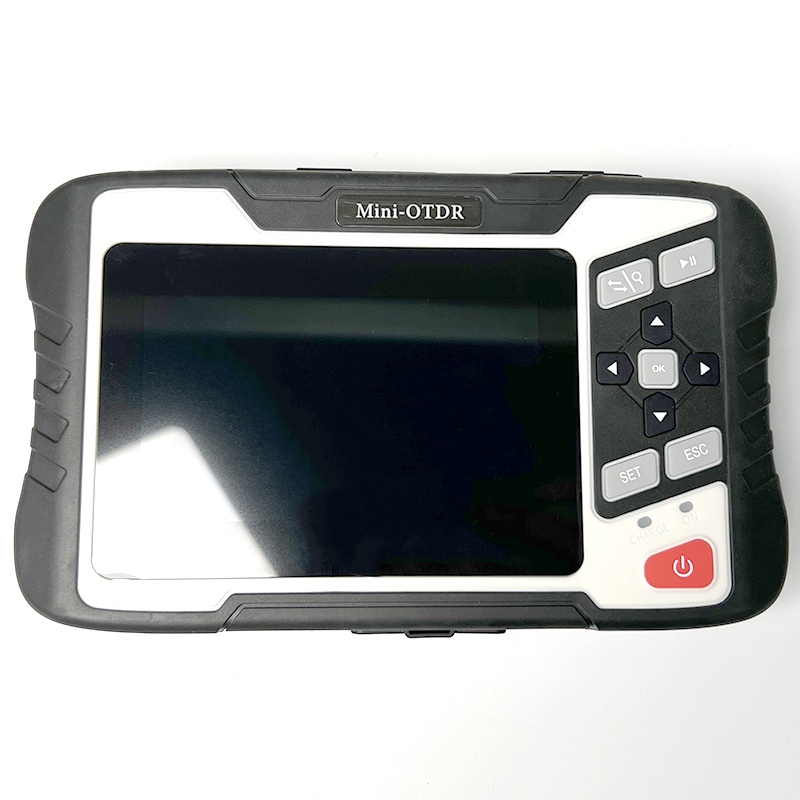

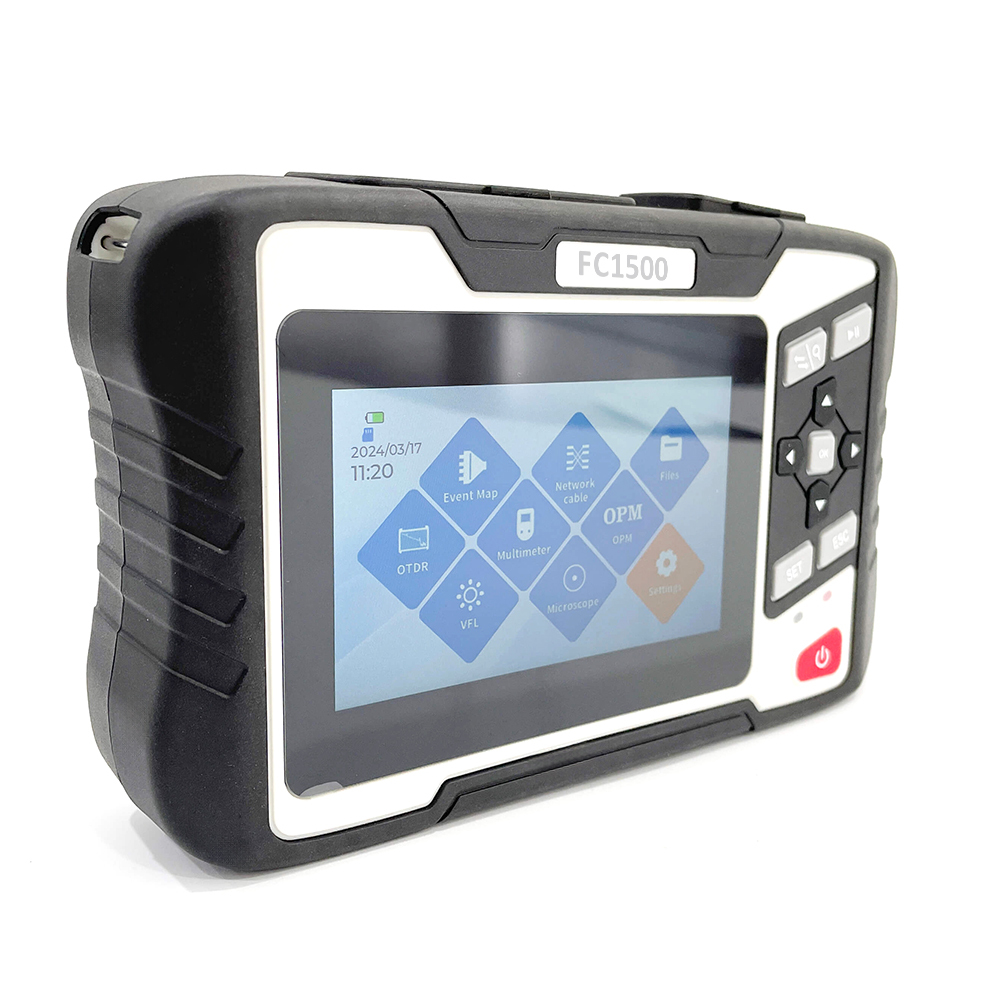

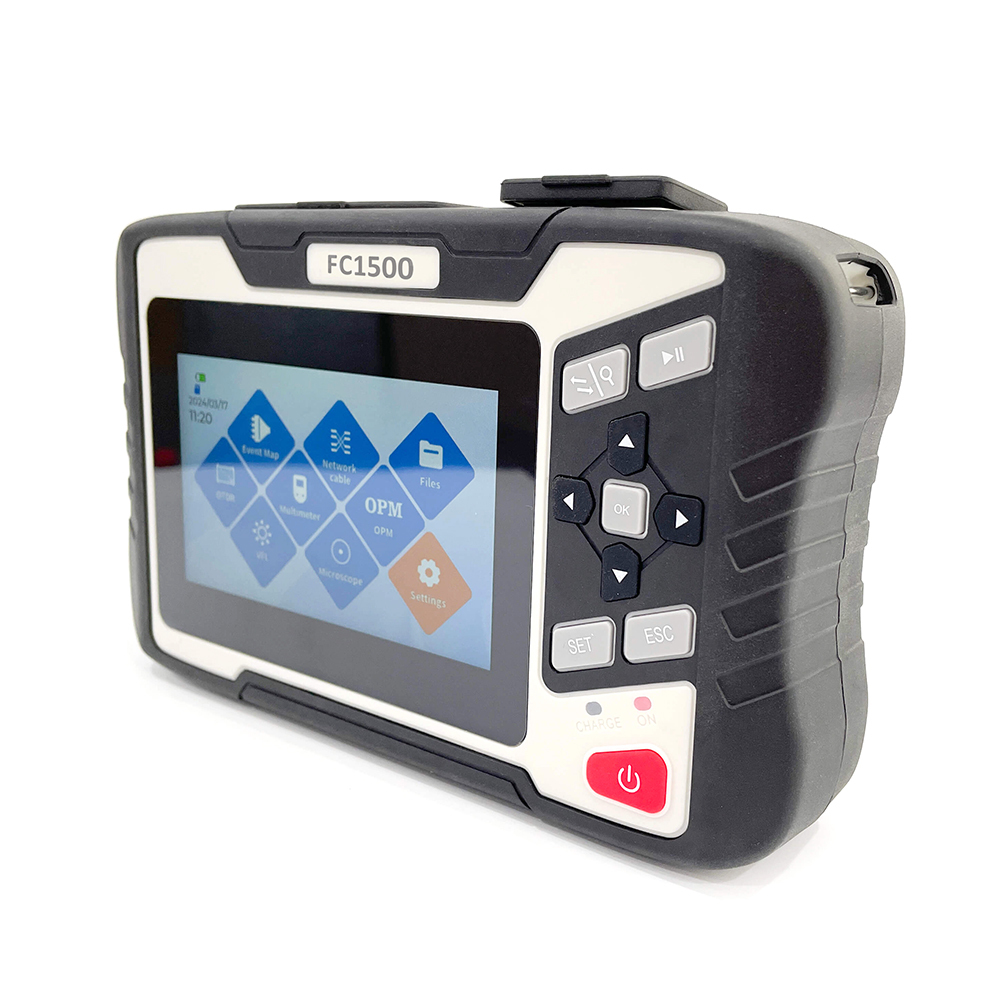

FC1500 Fiber & Copper Tester
High-speed Processor for Smooth Control
Integrated Multi Modules in One Device to Meet Fiber and Copper Test Requirement
Multi Functions in One Device

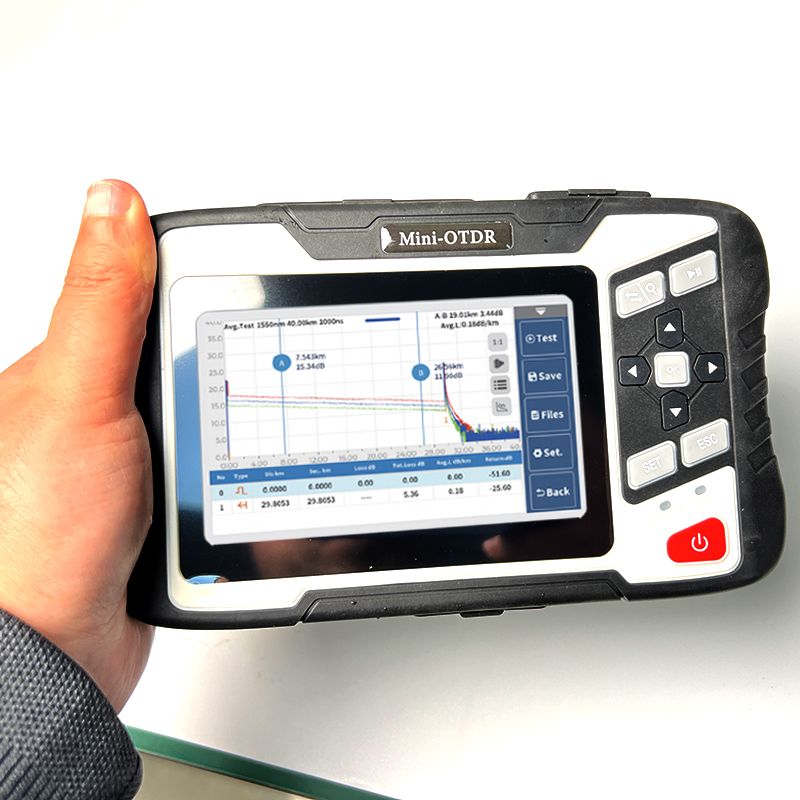

- OTDR
- Event Map
- Optical Power Meter
- Optical Light Source
- Visual Fault Locator

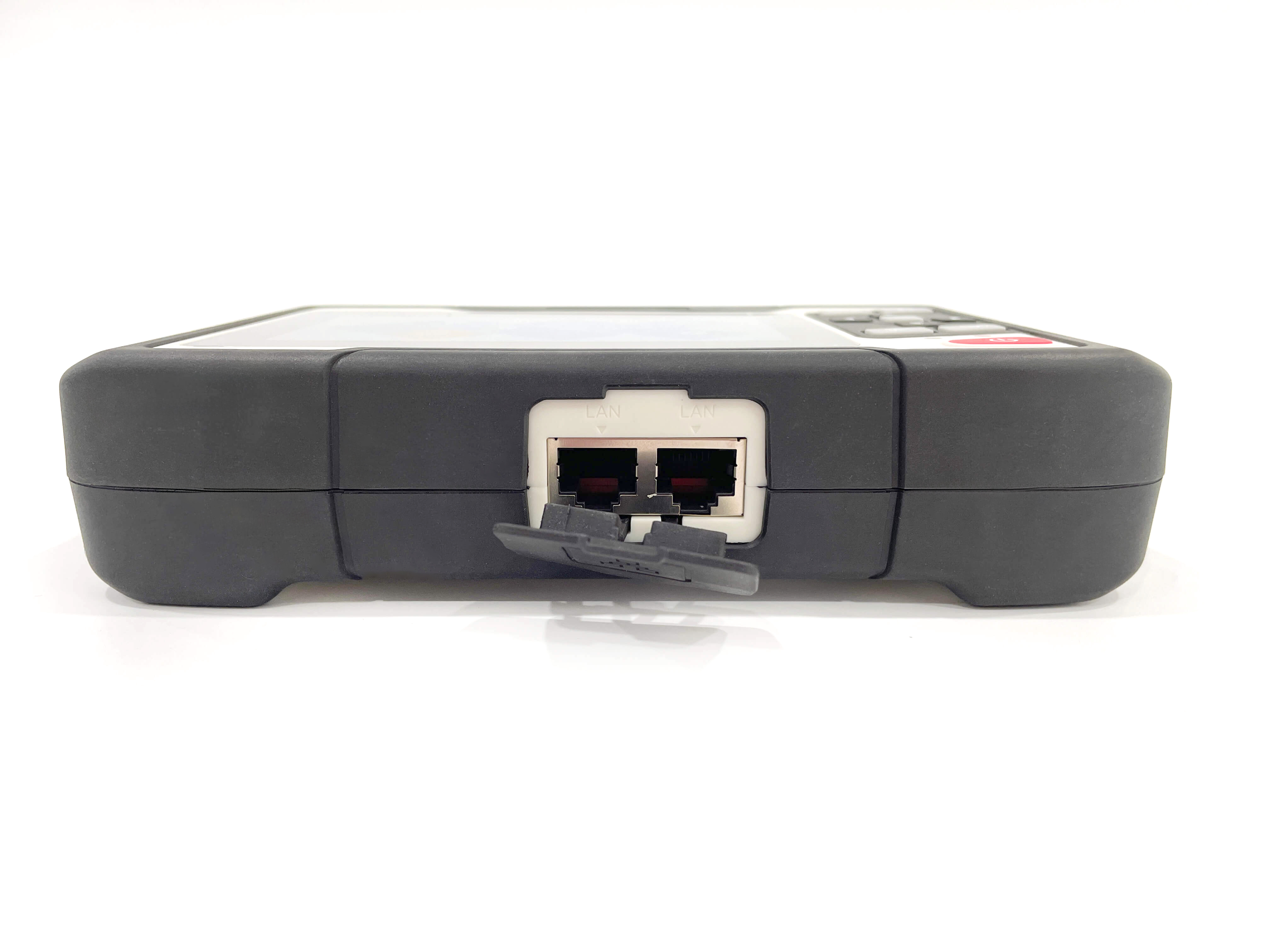

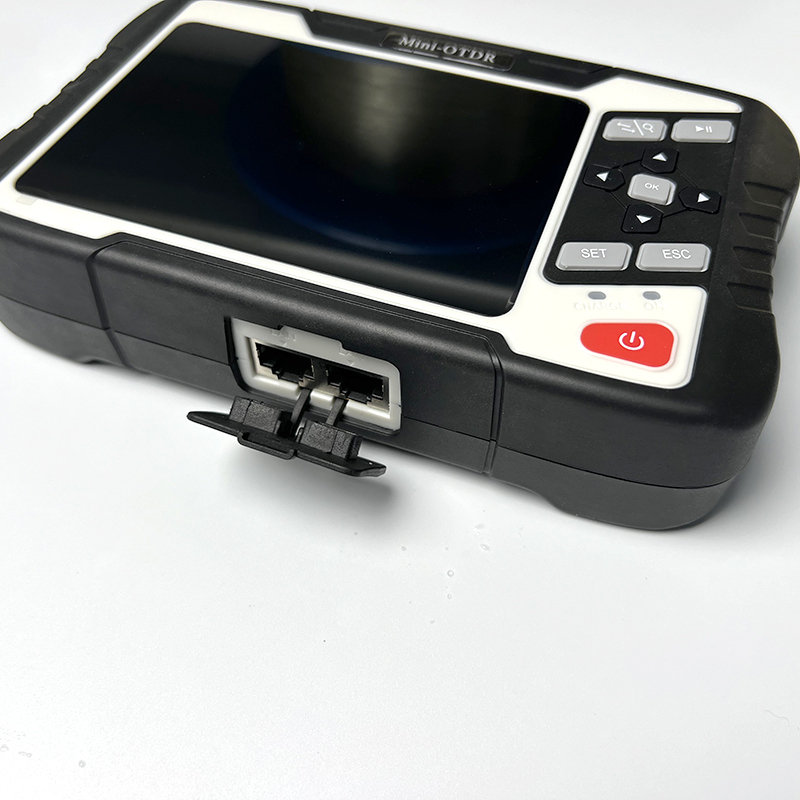

- RJ45 Cable Tracking
- RJ45 Cable Sequence
- LED Light
- Bluetooth
- Microscope (optional)
|
Model# |
FC1500-D26 |
FC1500-P24 |
FC1500-A24 |
FC1500-B24 |
|
Wavelength |
1310nm & 1550nm |
1610nm |
1625nm |
1650nm |
|
Dynamic Range |
26/24dB |
24dB |
24dB |
24dB |
|
Testing Range |
3m to 100km |
3m to 100km |
3 to 100km |
3m to 100km |
|
OTDR |
√ |
√ |
√ |
√ |
|
Event Map |
√ |
√ |
√ |
√ |
|
Power Meter |
√ |
√ |
√ |
√ |
|
Light Source |
√ |
√ |
√ |
√ |
|
Visual Fault Locator |
√ |
√ |
√ |
√ |
|
LED Light |
√ |
√ |
√ |
√ |
|
RJ45 Cable Sequence |
√ |
√ |
√ |
√ |
|
RJ45 Cable Tracking |
√ |
√ |
√ |
√ |
|
Bluetooth |
√ |
√ |
√ |
√ |
|
1490nm Online |
x |
√ |
√ |
√ |
|
1550nm Online |
x |
√ |
√ |
√ |
|
1610nm Online |
x | x |
√ |
√ |

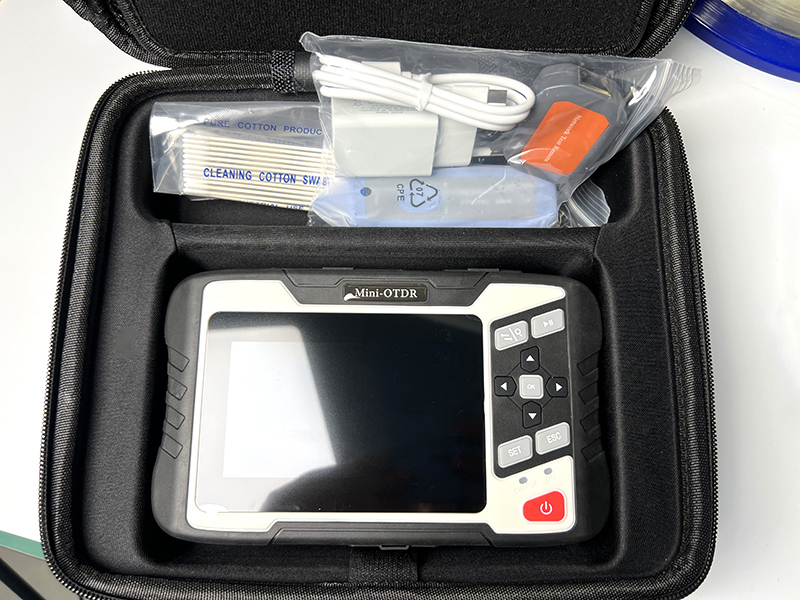

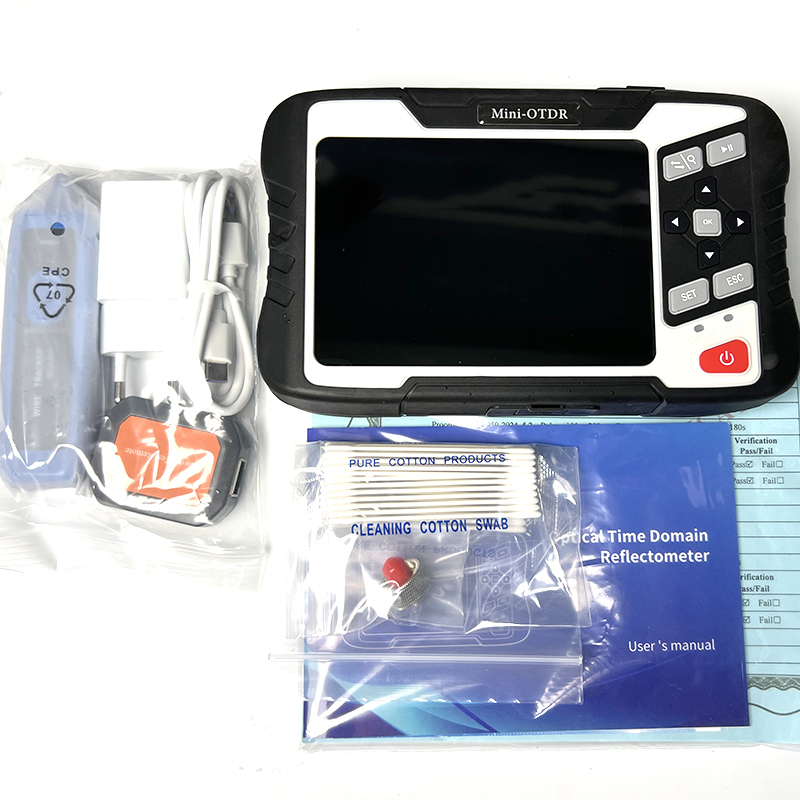

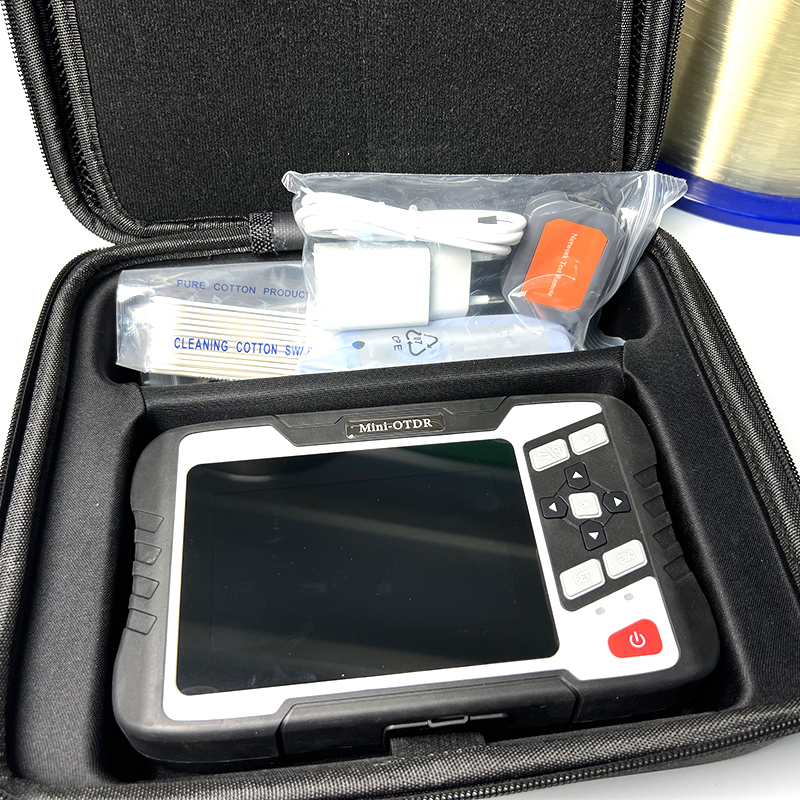

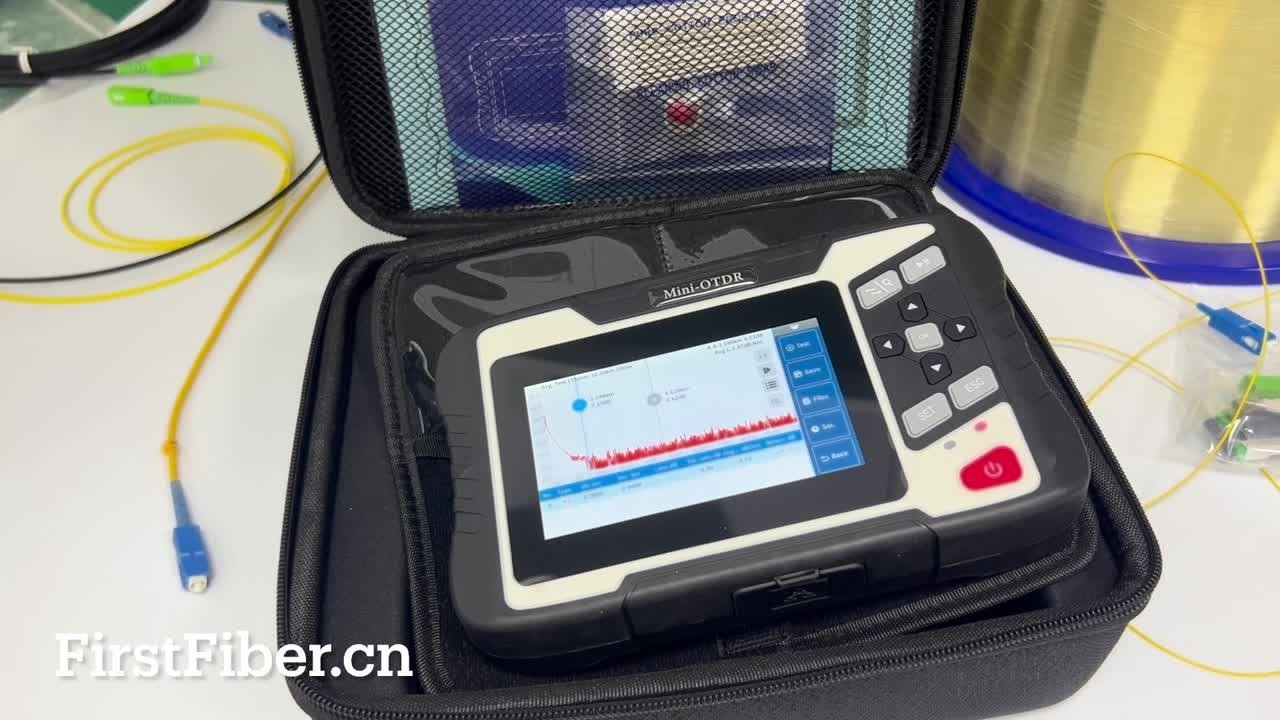

The Kit Includes: OTDR, User Manual,
TF Card, OTDRviewer Software, Power Charging Adapter,

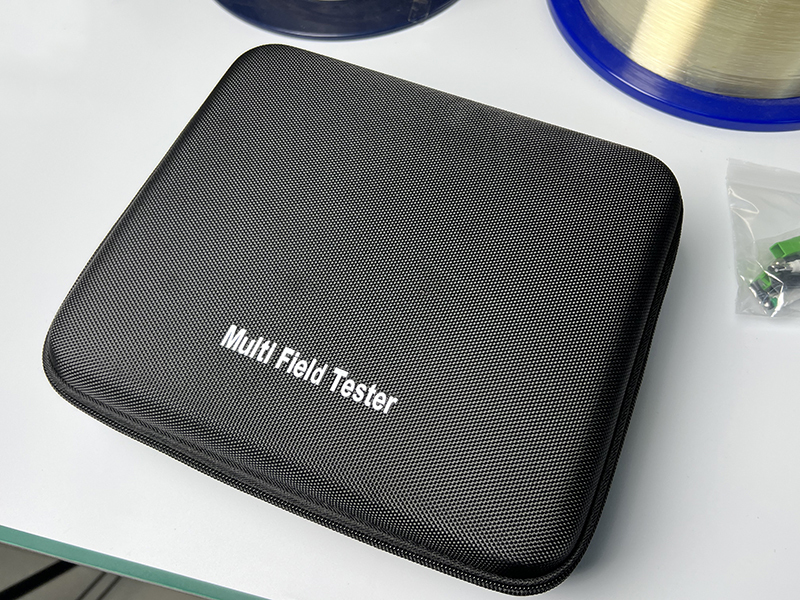

USB Cord, Carrying Case, Certificate of Calibrate
* Bluetooth function is optional
Note: -P24(1610nm) can test the fiber with1310/1490/1550nm signal in (power <0dBm)
-A24(1625nm) can test the fiber with 1310/1490/1550/1577nm signal in(power <0dBm)
-B24(1650nm) can test the fiber with 1310/1490/1550/1577nm signal in(power <5dBm)
|
General |
|
|

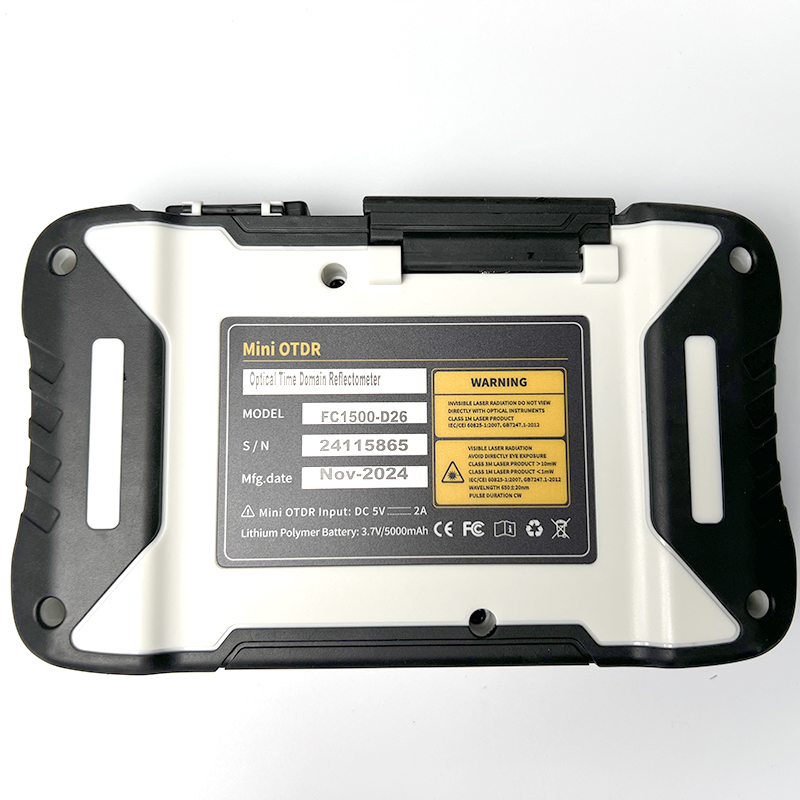

Size/Weight |
189x115x43mm/ 600g (Battery included) |
|
Display |

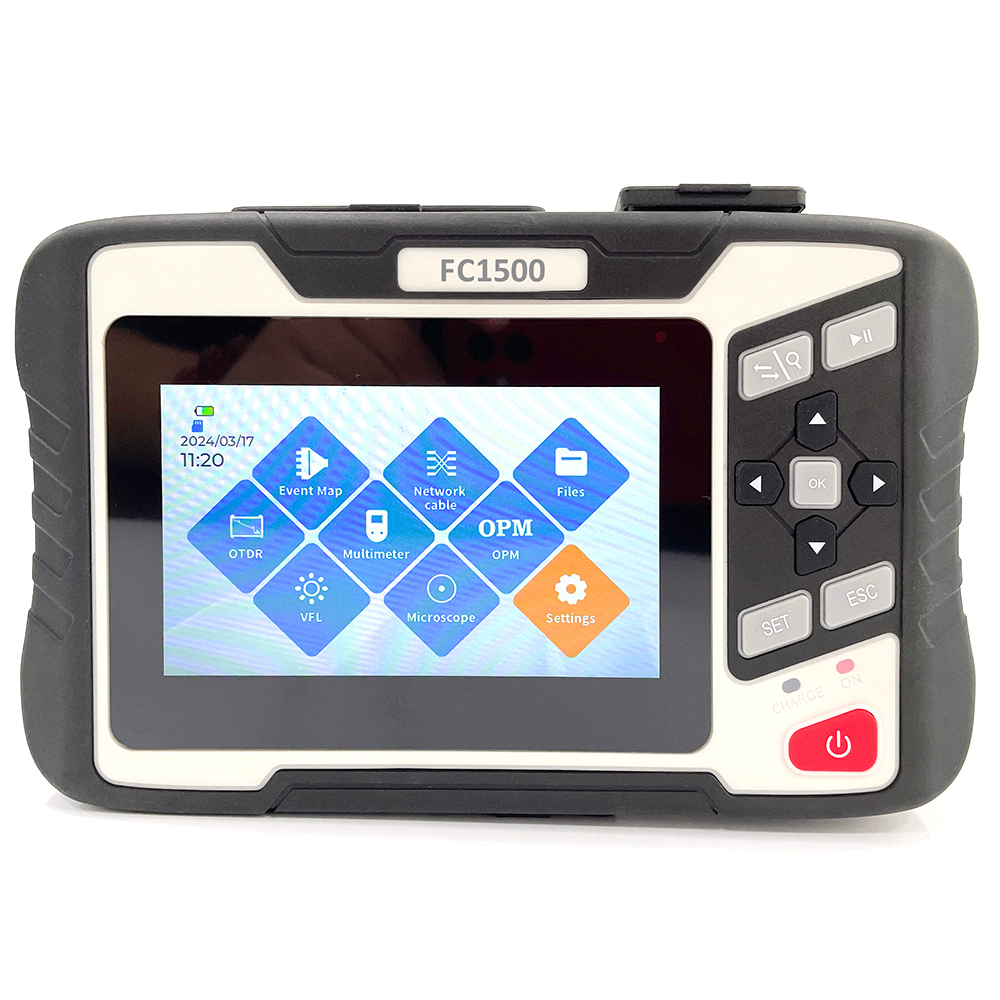

4.3 inch touch-sensitive IPS TFT Screen, 800x480 Resolution |
|

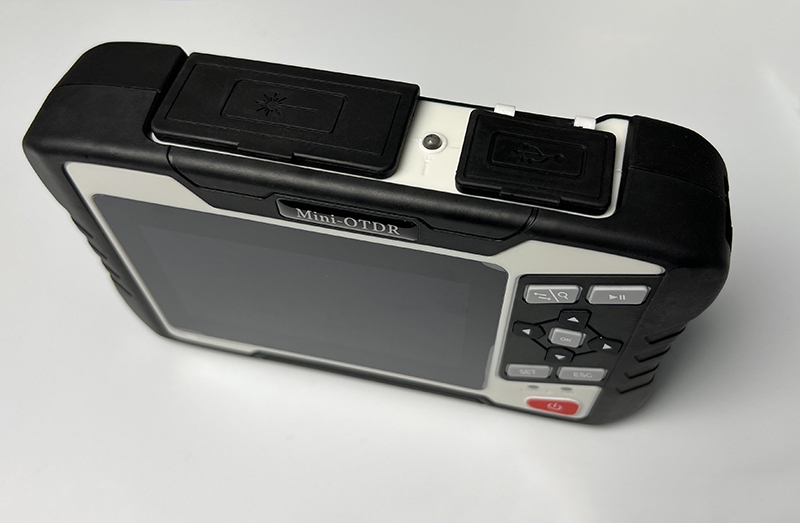

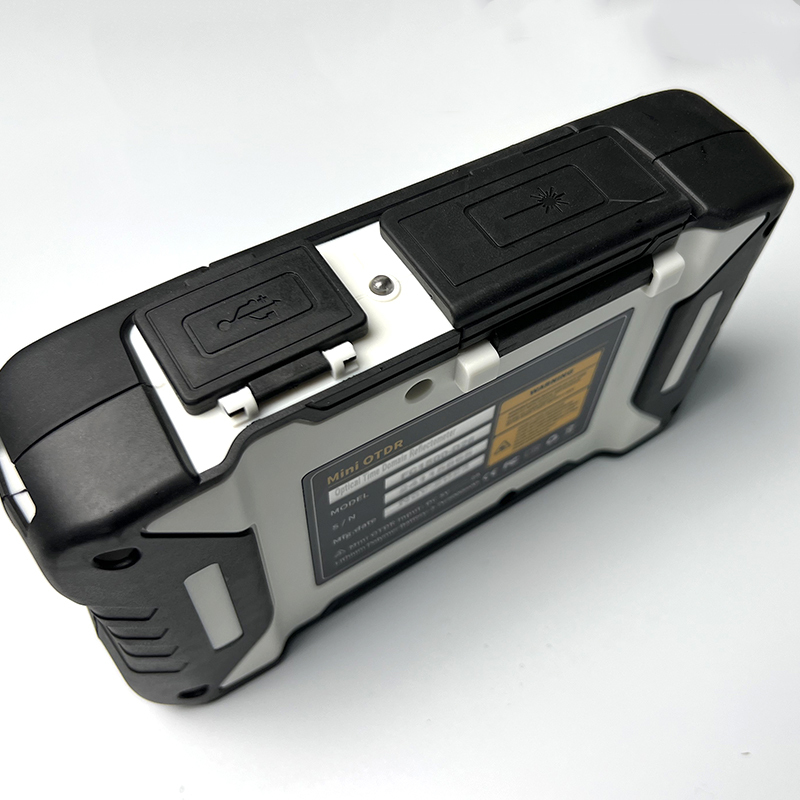

Interface |

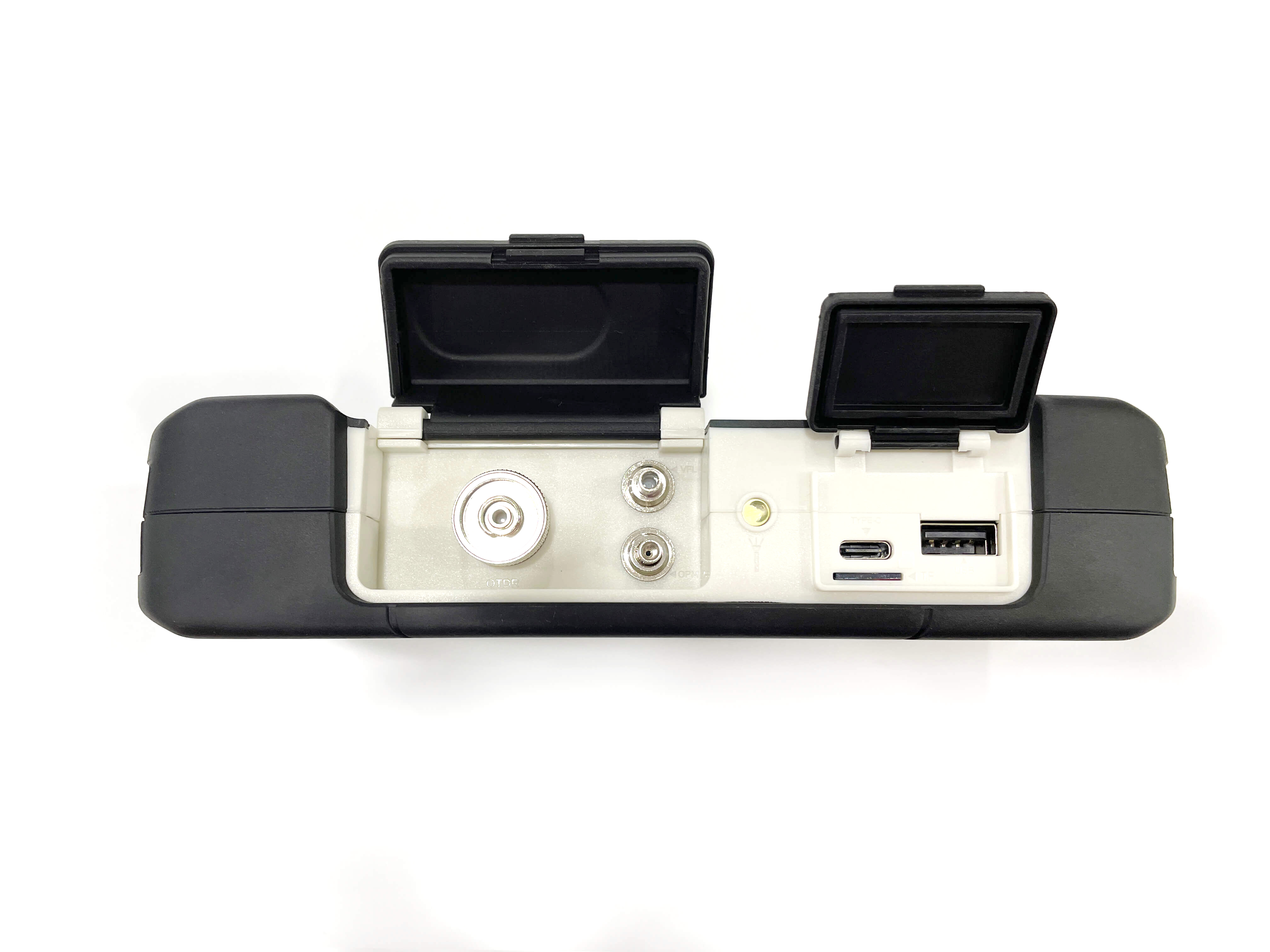

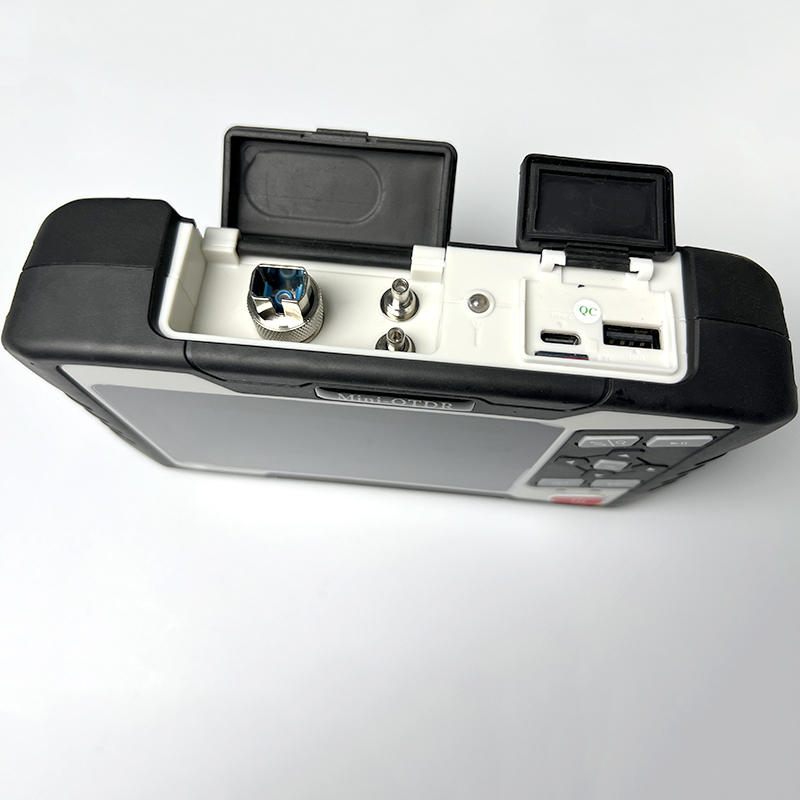

Type-C USB, TF Card Port, Rj45 Port, OTDR port, VFL port, Power Meter Port |
|
Power Supply |
Input: 100V(ac) to 240V(ac), 50~60Hz, 0.6A; Output: 5V(DC), 2A 5000mAh/3.7V Lithium battery |
|
Working Time |
>8 hours |
|
Power Saving |
Intelligent power management Auto power off: Never/1min/5min/10min/30min/60min |
|
Data Storage |
8GB, >200,000 Curves |
|
Language |
English |
|
Environmental Conditions |
Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation) Storage temperature and humidity: -20℃~+70℃, ≤95% (non-condensation) |
|
OTDR Module |
|
|
Pulse Width |
3ns,5ns,10ns,20ns,30ns,50ns,80ns,100ns,200ns,300ns,800ns,1μs,2μs,5μs,10μs,20μs |
|
Distance Range |
100m,300m,500m,1.25km, 2.5km, 5km, 10km, 20km, 40km, 80km,125km, 260km |
|
Sampling Resolution |
Minimum 0.03m |
|
Sampling Point |
>160,000 points |
|
Linearity |
≤0.05dB/dB |
|
Loss Test Method |
4 point/5 point Method |
|
Real Time Refresh |
3Hz (Typical Rate) |
|
Distance Accuracy |
±(1m+measuring distance×3×10^-5+sampling resolution) ( excluding IOR uncertainty) |
|
Loss Threshold |
0.2dB |
|
Loss Resolution |
0.001dB |
|
Distance Resolution |
0.001m |
|
IOR Setting |
1.00000~2.00000 |
|
Units |
km, mi, kft |
|
OTDR Trace Format |
SOR |
|
VFL Module |
|
|
Wavelength |
650nm |
|
Output Power |
10mw, CLASSIII B |
|
Range |
12km |
|
Launching Mode |
CW/1Hz/2Hz |
|
OPM Module |
|
|
Wavelength |
850/1270/1300/1310/1490/1550/1577/1625/1650nm |
|
Test Range |
-70~+ 10dBm or -50~+ 26dBm (in default) |
|
Resolution |
0.01dB |
|
Accuracy |
±5% |
|
Connector |
Universal |
|
OLS Module |
|
|
Wavelength |
Same as OTDR Wavelengths |
|
Output Power |
>-5dBm |
|
Output mode |
CW/270/330/1k/2k Hz |
|
RJ45 Cable Tracker |
|
|
Testing Range |
300 meters |
|
Signal Type |
Analog signal/Digital Signal |
|
Active Cable Track |
Support |
|
Signal Receiver |
Sent as a default Accessories |
|
Warning Sound |
Yes |
|
RJ45 Cable Type |
Support both 568A and 568B |
|
RJ45 Cable Sequeence |
|
|
Testing Range |
300 meters |
|
Signal Type |
Analog signal/Digital Signal |
|
Active Cable Test |
Not Support |
|
Remote Unit |
Can be took out from bottom of the device |
|
RJ45 Cable Type |
Support both 568A and 568B |
|
Testing Time |
Less than 15s |
yes, model FC1500-D26(1310/1550nm) supports dual wavelength simultaneous measurement
The FC1500 OTDR is with SC and FC connectors. ST, LC connectors are sold separately. Contact our sales if need please.
yes, users can control it by 3 methods. The first one is by touch screen, the second one is by physical buttons, and the third one is by bluetooth that connected to users' mobile phone
yes, users can turn on "strong light mode" in system settings.
System - Power - Strong Light Mode
The probe is sold separetely. You can see more details in the link, https://firstfiber.cn/products/fiber-inspection-probe-microscope
Auto-Test,
Average-Test, and
Real-time-Test
3 meters for cables with UPC connector. 10 meters for cables with APC connector.
No, it tests single mode fiber only. If you are going to test multi mode fiber, the other model 980EXP-M22 is ok. Visit the link please https://firstfiber.cn/products/980exp-otdr
Now, Chinese and English. If customers can help us translatation, we can add more languages for the OTDR.
| Instructions | |
| Model Number | Max 8 characters, no special characters allowed. |
| Logo | High Resolution. (.jpg, .bmp, .psd, .cdr, etc) |
| Boot Screen | 800x480 px, format .bmp, and color depth 16-bit |
| Language | Please contact sales to request the English version of the field list. |
| Model | Qty/Carton | Net Weight | Gross Weight | Size |
| FC1500 | 10 | 13.5 KG | 15 KG | 53x30x26cm |
| Model | Qty/Carton | Net Weight | Gross Weight | Size |
| FC1500 | 1 | 1.35 KG | 1.7 KG | 23x29x10cm |
