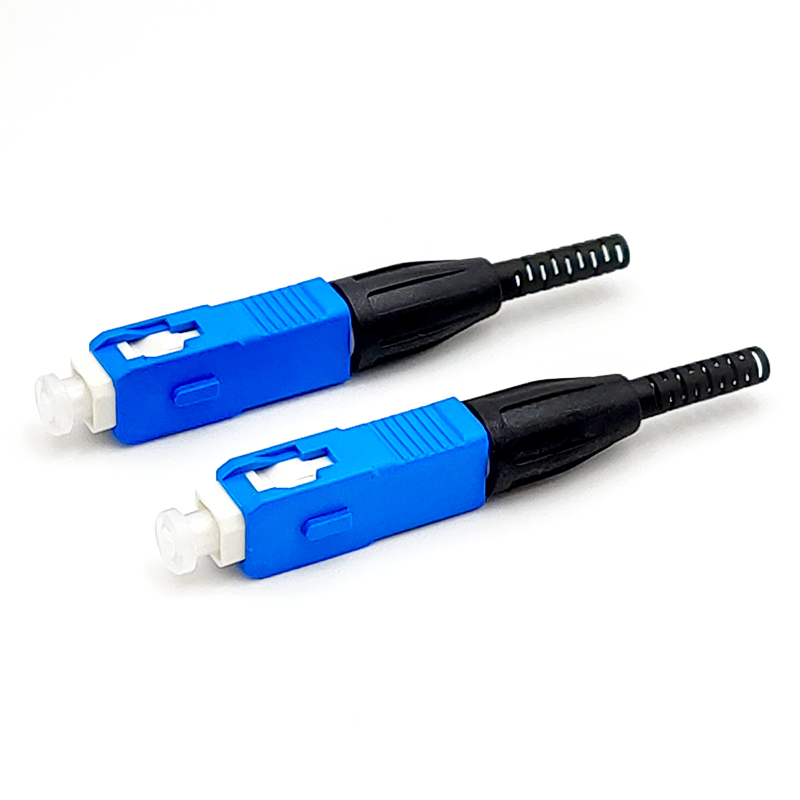

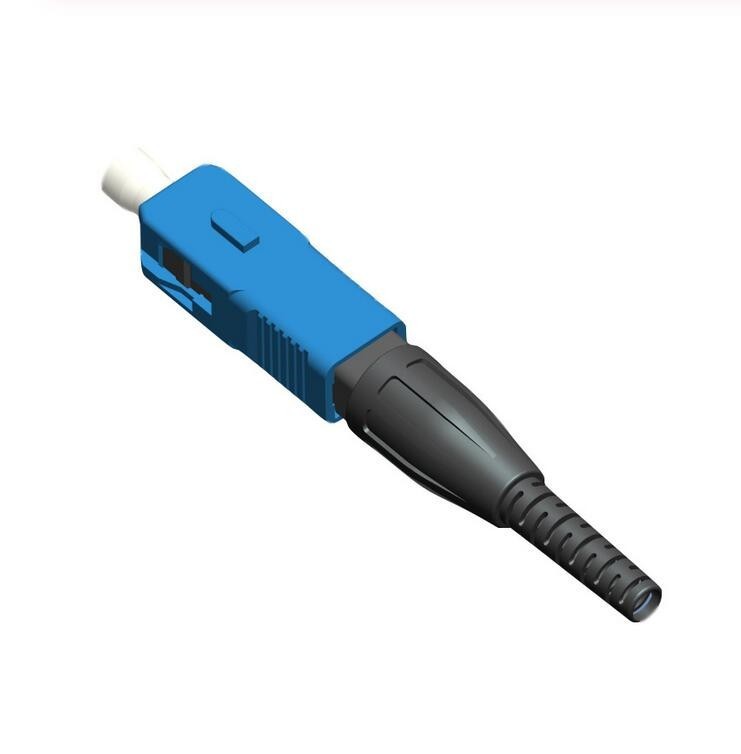

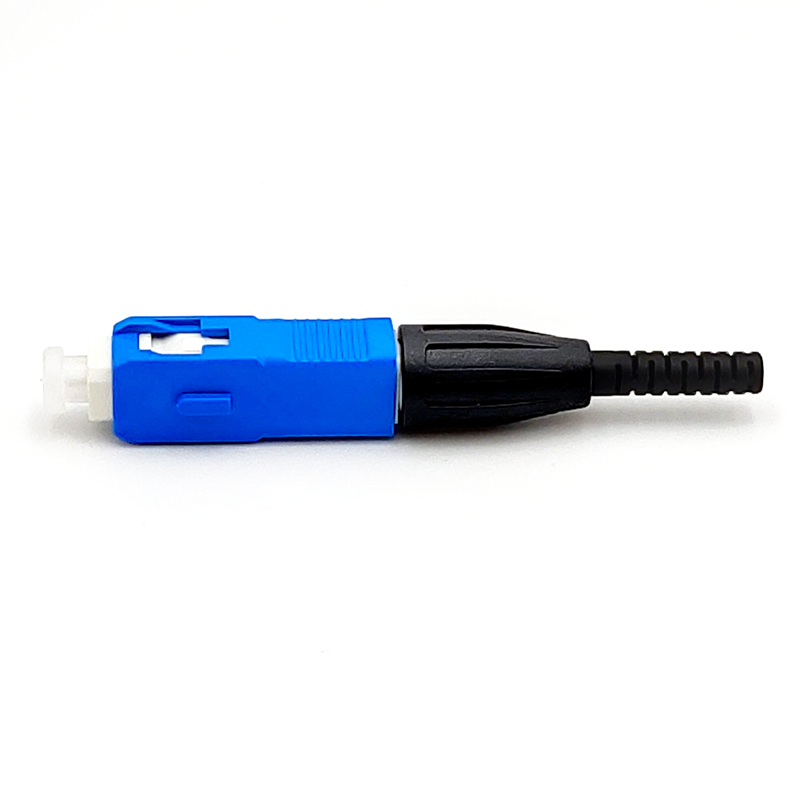

ESC920H-UPC SC/APC Fast Connector for 3.0mm 2.0mm and 0.9mm Fiber Cable FTTH Fiber Optic Field Assembly Connector
Features
1. FTTH project usable
2. For field fast installation
3. Typical Insert loss 0.3dB
4. For 3.0mm 2.0mm and 0.9mm Cable
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR
8. Standard YD/T 2341.1-2011
Technical specification
Item |
Parameter |
Cable Scope |
3.0mm & 2.0mm Cable & 0.9mm cable |
Fiber Diameter |
125μm ( 652 & 657 ) |
Coating Diameter |
900μm |
Mode |
SM |
Operation Time |
about 1 min(exclude fiber presetting) |
Insertion Loss |
≤ 0.3 dB(1310nm & 1550nm), Max ≤ 0.5 dB |
Return Loss |
≥50dB for UPC |
Success Rate |
>98% |
Reusable Times |
≥5 times |
Tighten Strength of Bare Fiber |
>3N |
Tensile Strength |
>50N |
Temperature |
-40~+85℃ |
On-line Tensile Strength Test (20 N) |
IL ≤ 0.3dB |
Mechanical Durability(500 times) |
IL ≤ 0.3dB |
Drop Test(4m concrete floor, once each direction, three times total) |
IL ≤ 0.3dB |
Connector Length |
45.5mm |
