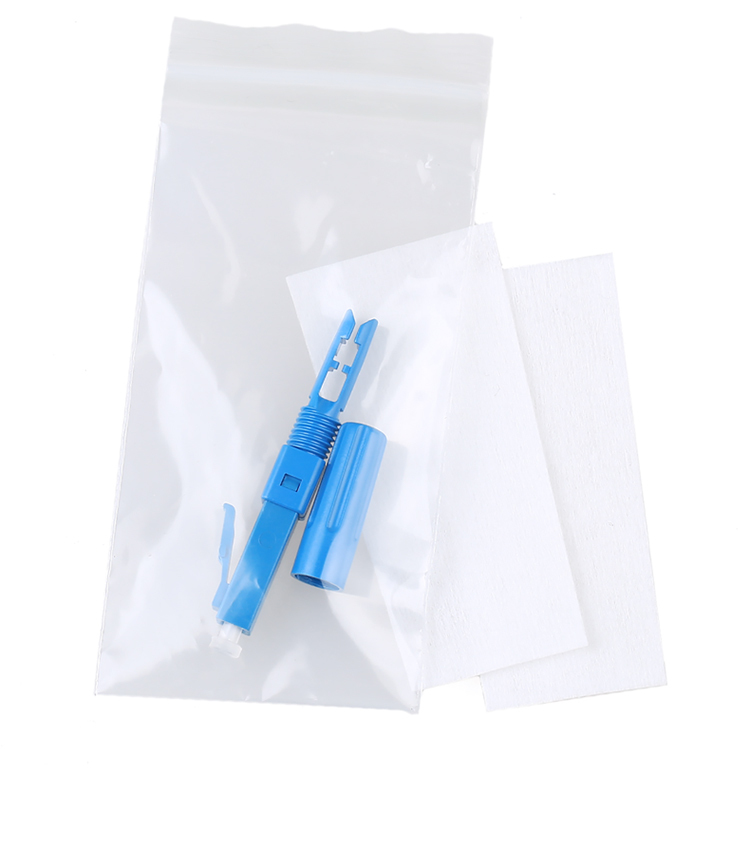

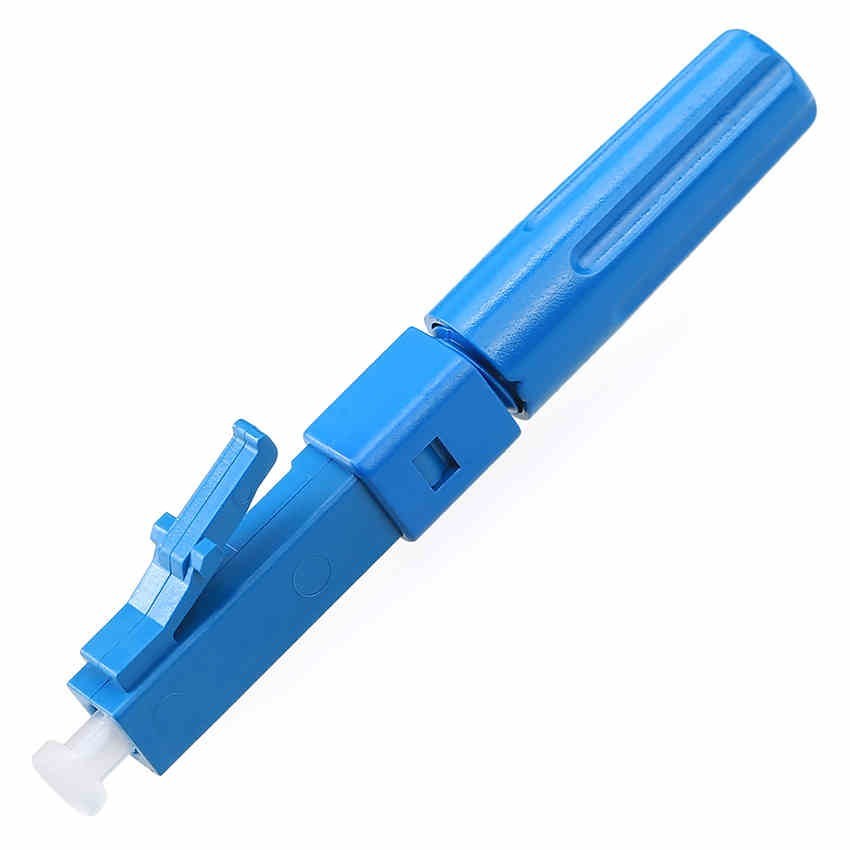

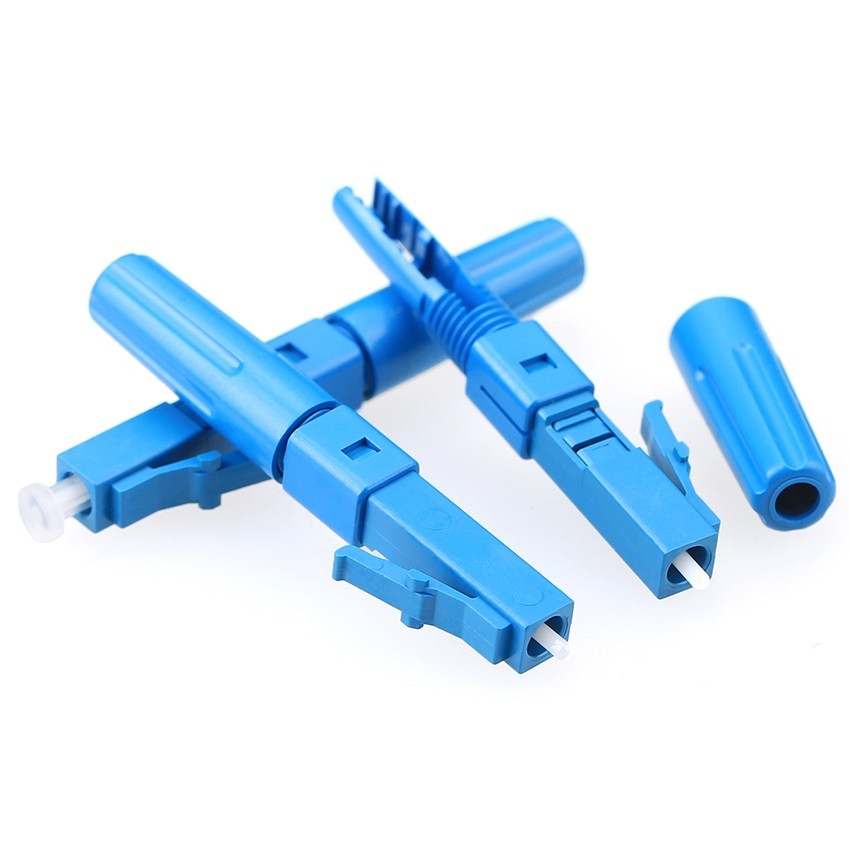

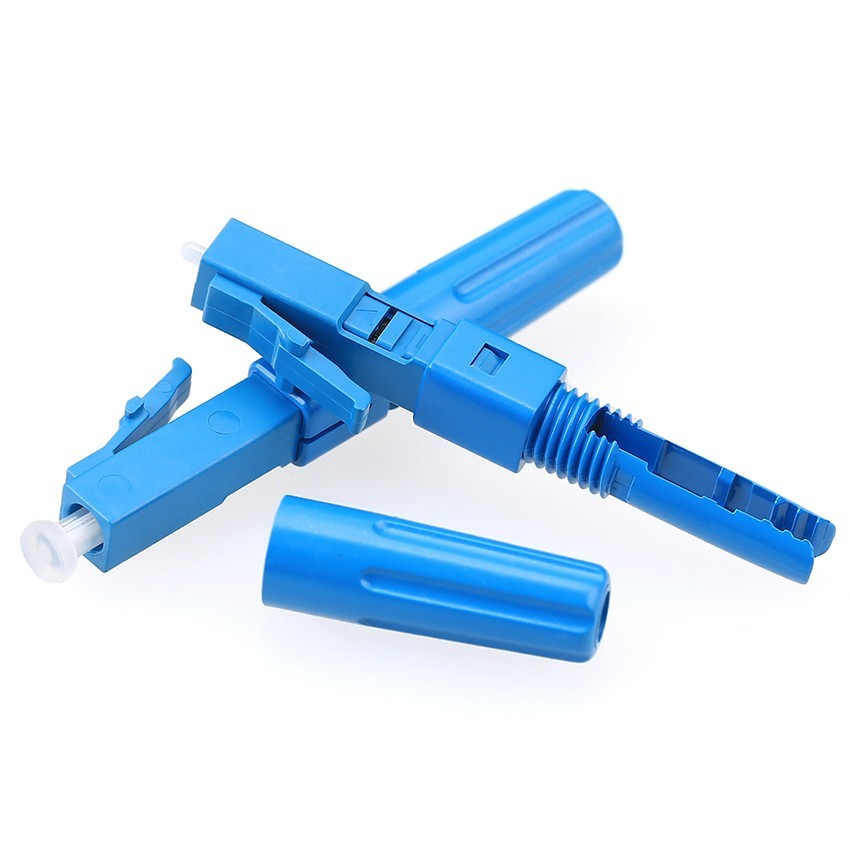

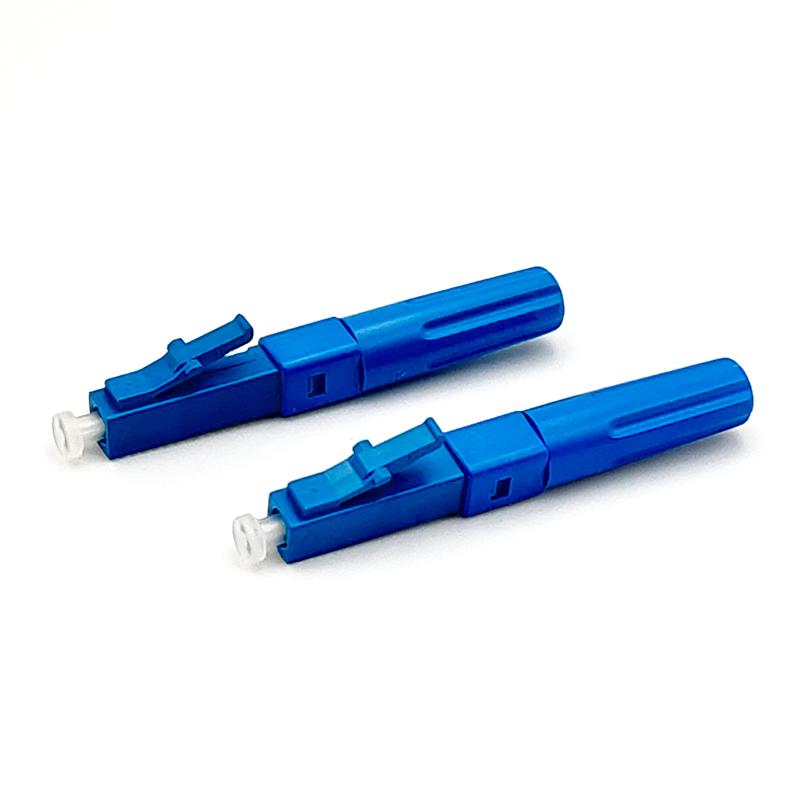

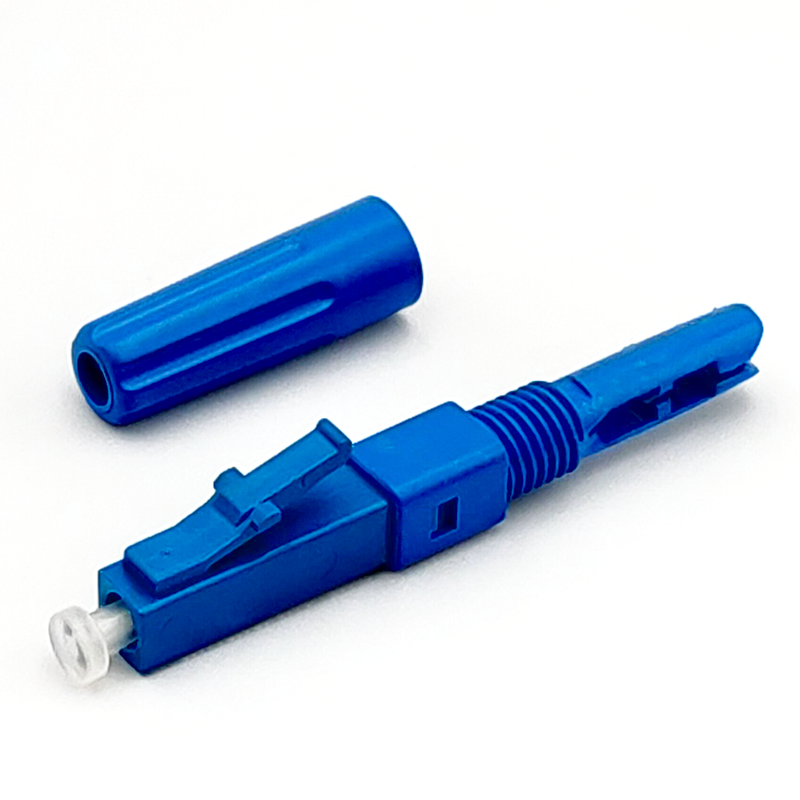

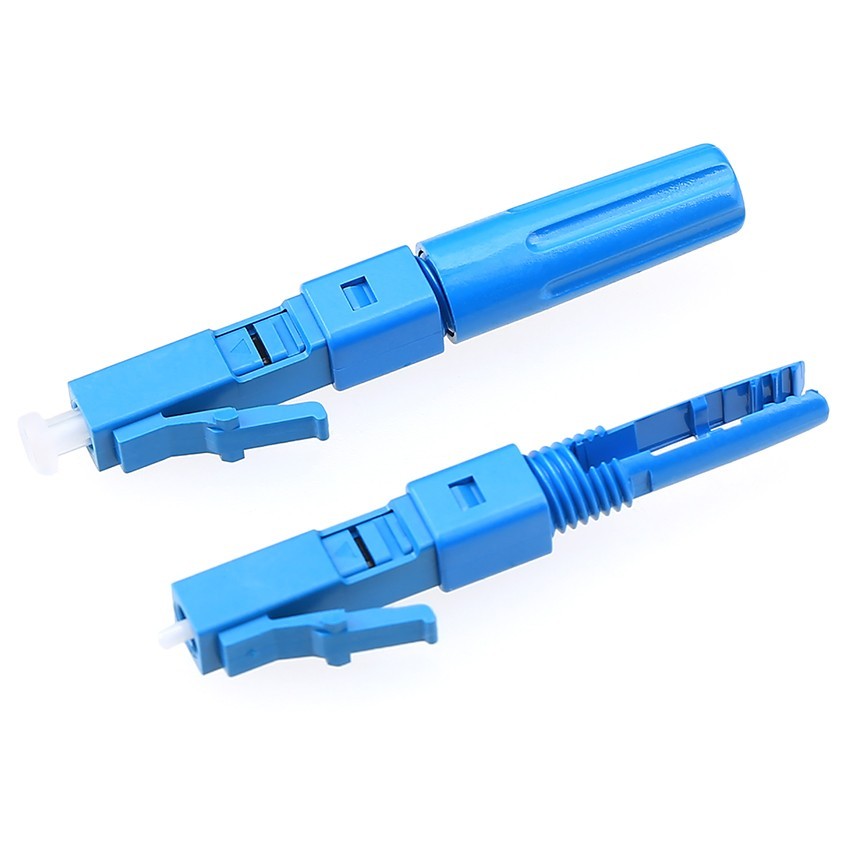

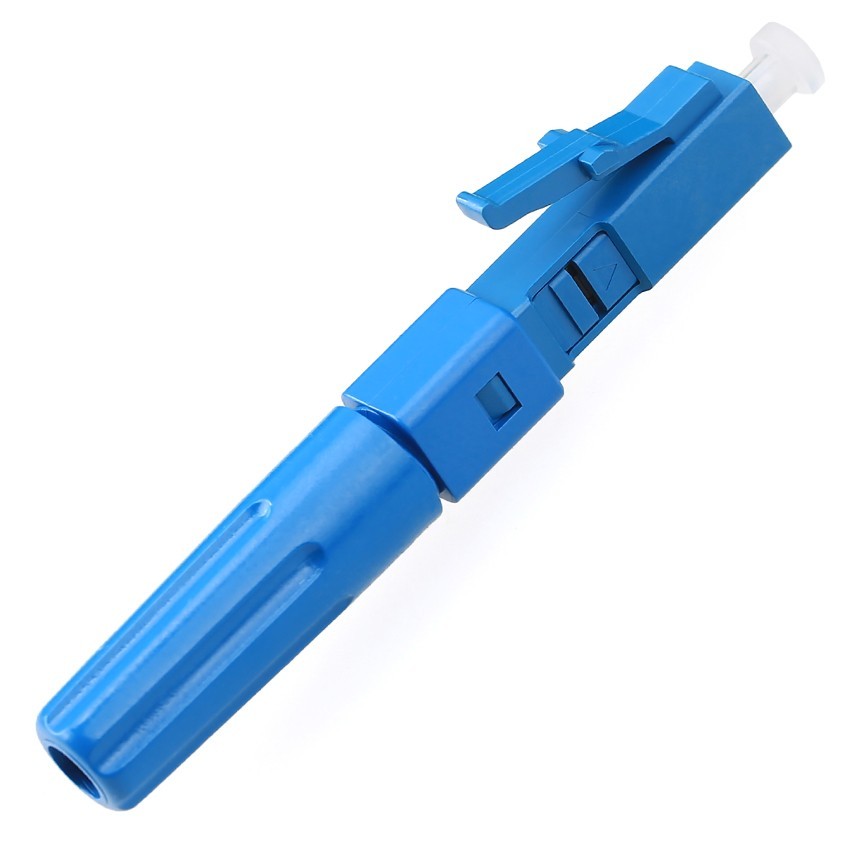

ELC925T-UPC LC/UPC Fast Connector for 2.0x3.0mm 1.6x2.0mm Drop Cable 3.0mm 2.0mm Indoor Cable 0.9mm Invisible Cable Fiber Optic Field Assembly Connector
Features
- Fiber embedded, polishing in factory;
- Matching gel inside;
- Applicable for different situation;
- Meet various assembly operating habits；
- Screw type,total length:53.3mm, including soft tail
- Applied to 2.0x3.0mm 1.6x2.0mm drop cable Ø2.0 and Ø3.0 indoor cable, 0.9 invisible cable;
- The diameter of fiber coating:250μm, 900μm;
- Tensile strength:≥30N/2min
Specification
Item |
Parameter |
Cable Scope |
2.0x3.0mm 1.6x2.0mm Drop Cable |
Fiber Diameter |
125μm ( 652 & 657 ) |
Coating Diameter |
900μm |
Mode |
SM |
Operation Time |
about 4min(exclude fiber presetting) |
Insertion Loss |
≤ 0.3 dB(1310nm & 1550nm), Max ≤ 0.5 dB |
Return Loss |
≥50dB for UPC |
Success Rate |
>98% |
Reusable Times |
≥5 times |
Tighten Strength of Bare Fiber |
>3N |
Tensile Strength |
>30 N/2min |
Temperature |
-40~+85℃ |
On-line Tensile Strength Test (20 N) |
IL ≤ 0.3dB |
Mechanical Durability(500 times) |
IL ≤ 0.3dB |
Drop Test(4m concrete floor, once each direction, three times total) |
IL ≤ 0.3dB |
Connector Length |
40mm |
