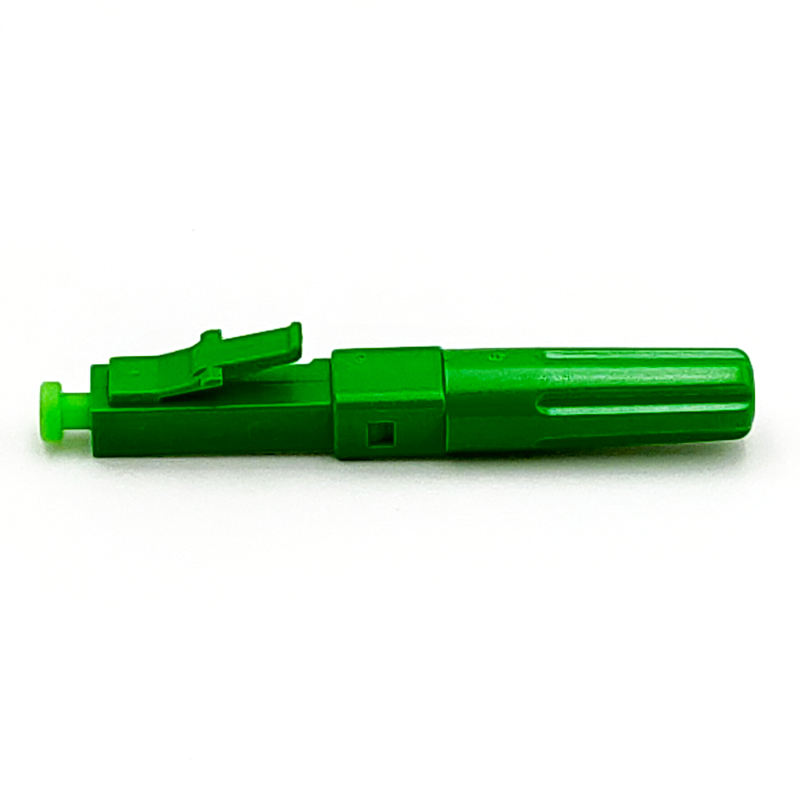

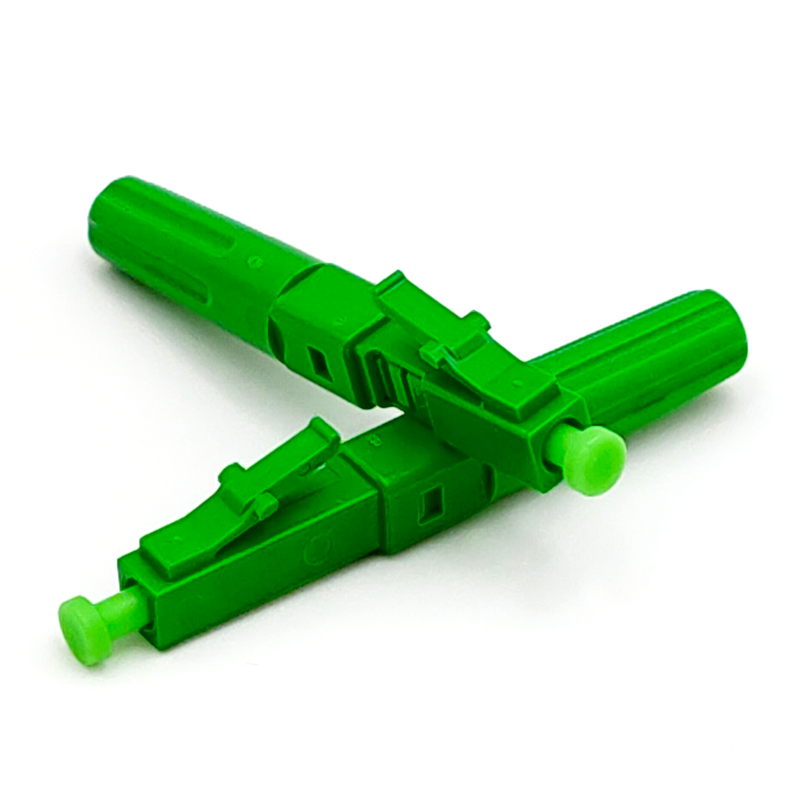

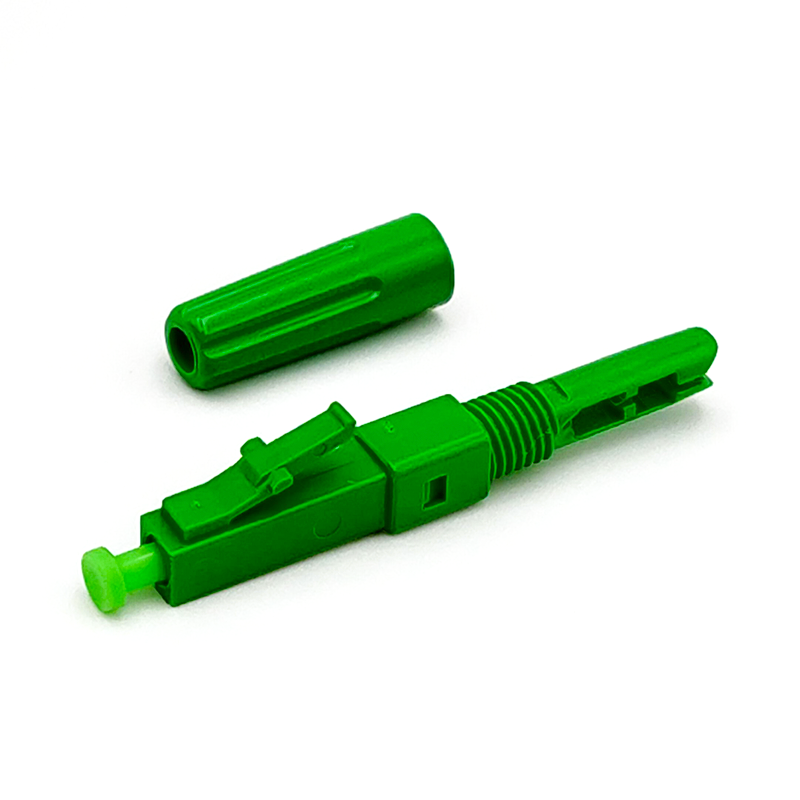

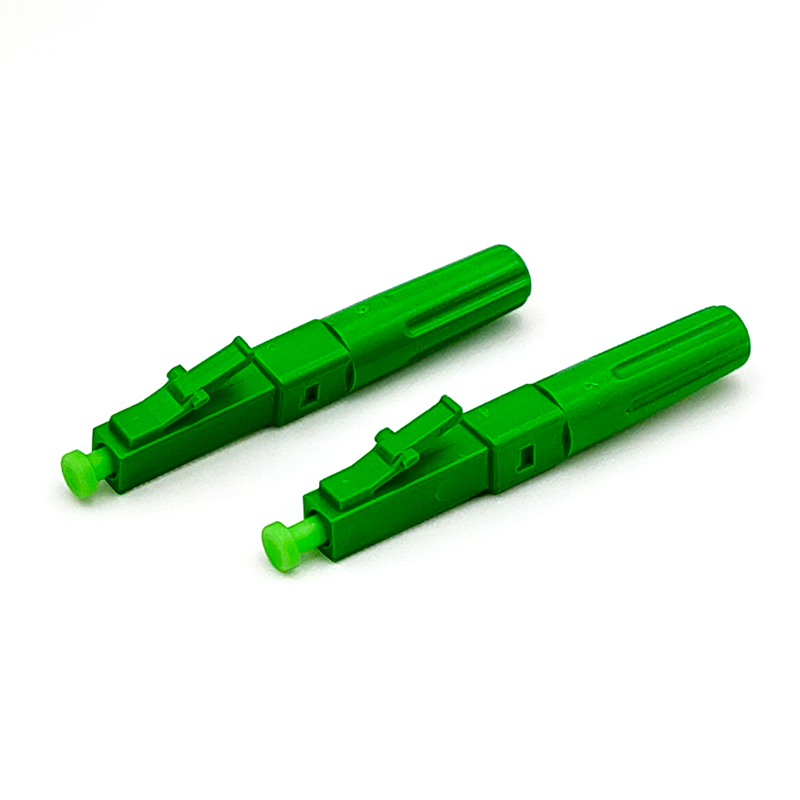

ELC925T-APC LC/APC Fast Connector for 2.0x3.0mm 1.6x2.0mm Drop Cable 3.0mm 2.0mm Indoor Cable 0.9mm Invisible Cable Fiber Optic Field Assembly Connector
Features
- Fiber embedded, polishing in factory;
- Matching gel inside;
- Applicable for different situation;
- Meet various assembly operating habits；
- Screw type,total length:40mm, including soft tail
- Applied to 2.0x3.0mm 1.6x2.0mm drop cable Ø2.0 and Ø3.0 indoor cable, 0.9 invisible cable;
- The diameter of fiber coating:250μm, 900μm;
- Tensile strength:≥30N/2min
Specification
|
Item |
Parameter |
|
Cable Scope |
2.0x3.0mm 1.6x2.0mm Drop Cable |
|
Fiber Diameter |
125μm ( 652 & 657 ) |
|
Coating Diameter |
900μm |
|
Mode |
SM |
|
Operation Time |
about 4min(exclude fiber presetting) |
|
Insertion Loss |
≤ 0.3 dB(1310nm & 1550nm), Max ≤ 0.5 dB |
|
Return Loss |
≥55dB for APC |
|
Success Rate |
>98% |
|
Reusable Times |
≥5 times |
|
Tighten Strength of Bare Fiber |
>3N |
|
Tensile Strength |
>30 N/2min |
|
Temperature |
-40~+85℃ |
|
On-line Tensile Strength Test (20 N) |
IL ≤ 0.3dB |
|
Mechanical Durability(500 times) |
IL ≤ 0.3dB |
|
Drop Test(4m concrete floor, once each direction, three times total) |
IL ≤ 0.3dB |
|
Connector Length |
40mm |
