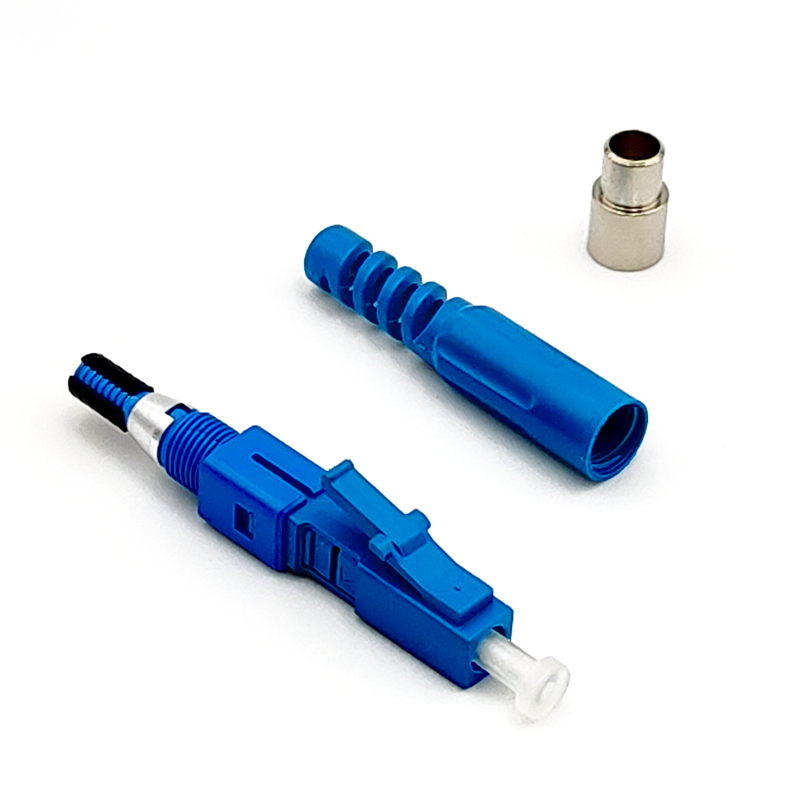

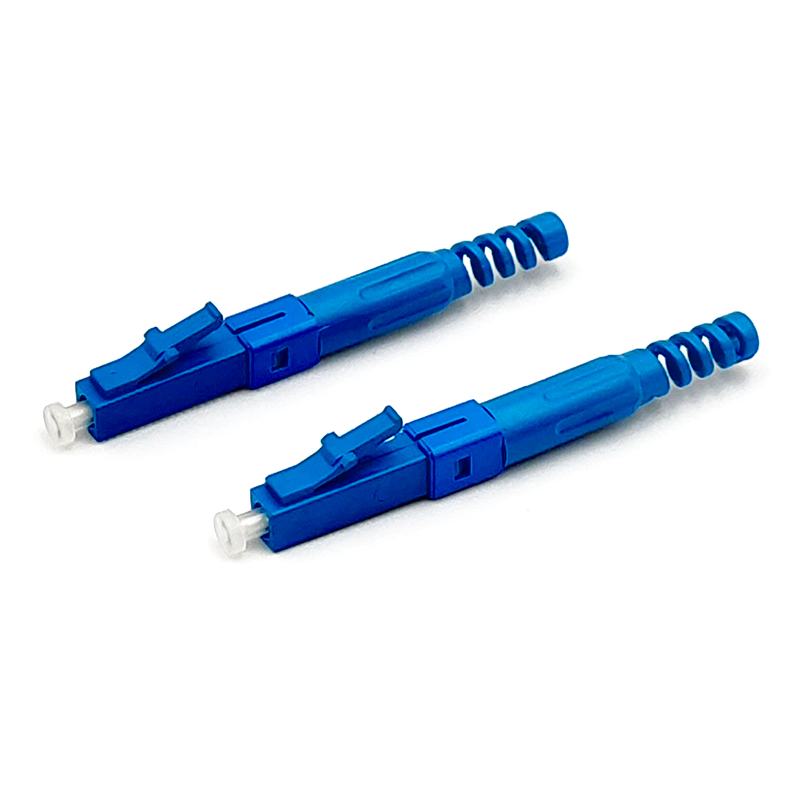

Name: ELC920H-UPC LC/UPC Fast Connector for 3.0mm 2.0mm and 0.9mm Indoor Cable Fiber Optic Field Assembly Connector
Brand: FirstFiber Technologies
Availability: InStock
Rating: 5 (1 reviews)

Get A Quote

Add to Quote List View Quote List

Description

ELC920H-UPC LC/UPC Fast Connector for 3.0mm 2.0mm and 0.9mm Indoor Cable Fiber Optic Field Assembly Connector

Features
- Fiber embedded, polishing in factory;
- Matching gel inside;
- Applicable for different situation;
- Meet various assembly operating habits；
- Screw type,total length:53.3mm, including soft tail
- Applied to Ø2.0 and Ø3.0 indoor cable, 0.9 invisible cable;
- The diameter of fiber coating:900 μm;
- Tensile strength:≥50N/2min

Specifications

Item	Parameter
Cable Scope	3.0 mm & 2.0 mm & 0.9mm Cable
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	900μm
Mode	SM
Operation Time	about 1min (exclude fiber presetting)
Insertion Loss	≤ 0.3 dB(1310nm & 1550nm), Max ≤ 0.5 dB
Return Loss	≥50dB for UPC
Success Rate	>98%
Reusable Times	≥5 times
Tighten Strength of Bare Fiber	>3N
Tensile Strength	>50N/2min
Temperature	-40~+85℃
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)	IL ≤ 0.3dB

Download
