980TEK OTDR Reflectometer with OPM OLS VFL RJ45 Bluetooth

Model:
980TEK-D26 (1310/1550nm 26/24dB)
980TEK-P24 (1610nm 24dB)
980TEK-A24 (1625nm 24dB)
980TEK-B24 (1650nm 24dB)
Connector:
SC/APC
SC/UPC
  • 980TEK OTDR Reflectometer with OPM OLS VFL RJ45 Bluetooth
  • 980TEK OTDR Reflectometer with OPM OLS VFL RJ45 Bluetooth
  • 980TEK OTDR Reflectometer with OPM OLS VFL RJ45 Bluetooth
  • 980TEK OTDR Reflectometer with OPM OLS VFL RJ45 Bluetooth
  • 980TEK OTDR Reflectometer with OPM OLS VFL RJ45 Bluetooth
  • 980TEK OTDR Reflectometer with OPM OLS VFL RJ45 Bluetooth
  • 980TEK OTDR Reflectometer with OPM OLS VFL RJ45 Bluetooth
  • 980TEK OTDR Reflectometer with OPM OLS VFL RJ45 Bluetooth
  • 980TEK OTDR Reflectometer with OPM OLS VFL RJ45 Bluetooth
  • 980TEK OTDR Reflectometer with OPM OLS VFL RJ45 Bluetooth

Description

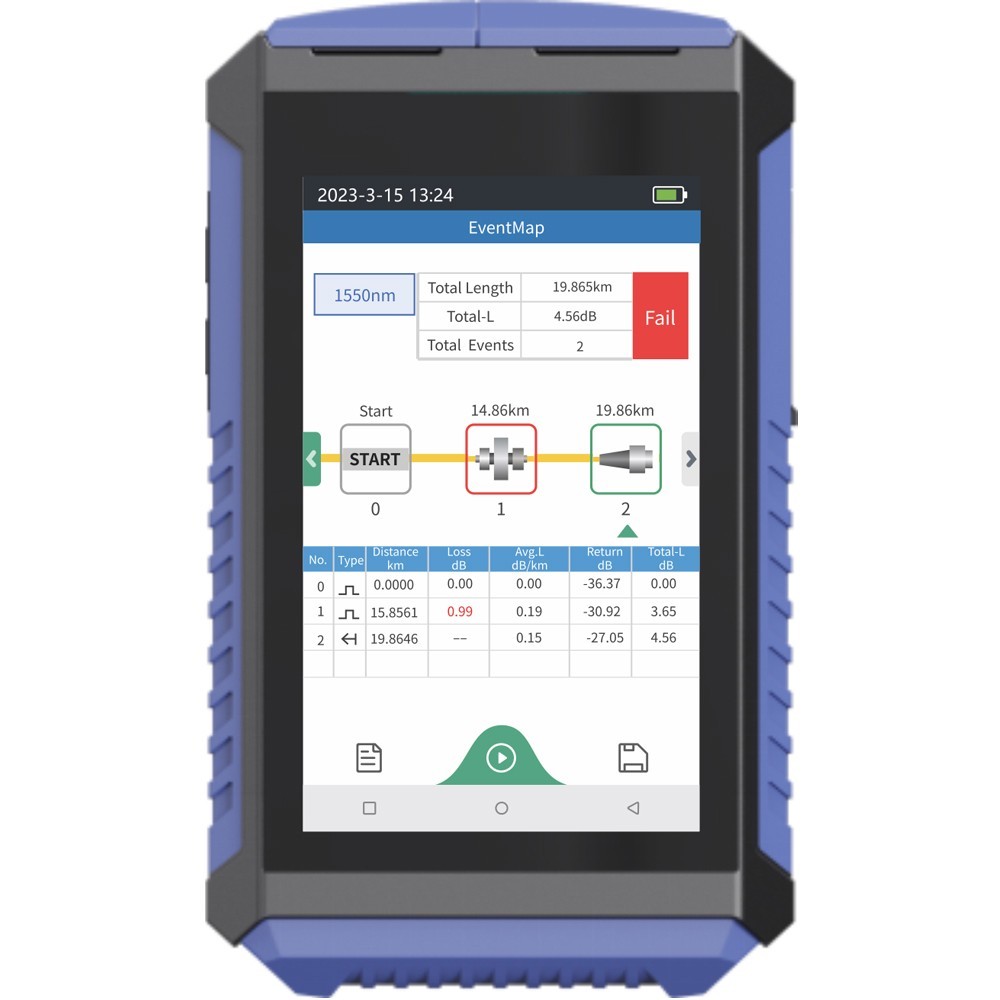

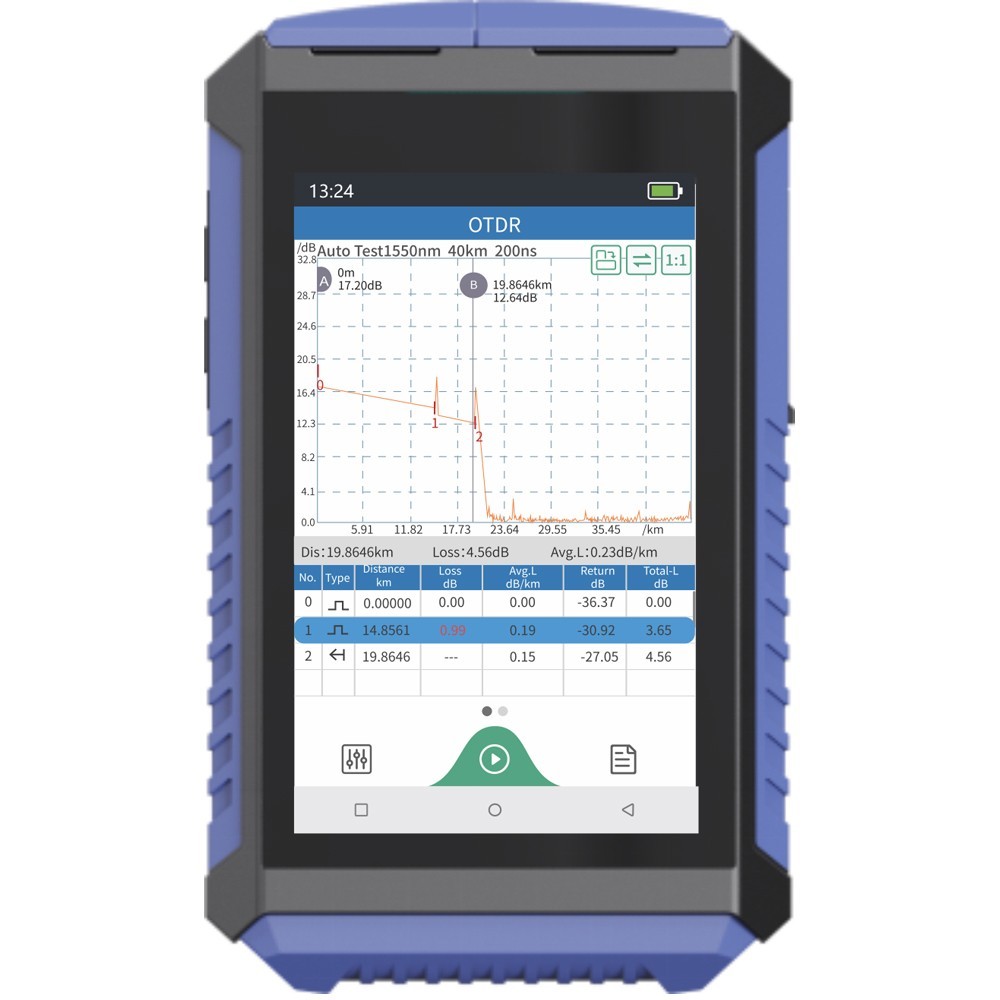

980TEK OTDR
High Precision, Android UI, Multi Touch,and Ultra-stable for any Cable Testing Situations

Model 980TEK-D26 980TEK-P24 980TEK-A24 980TEK-B24
Wavelength 1310/1550nm 1610nm 1625nm 1650nm
Dynamic Range 26/24dB 24dB 24dB 24dB
Testing Range 3m to 100km 3m to 100km 3m to 100km 3m to 100km

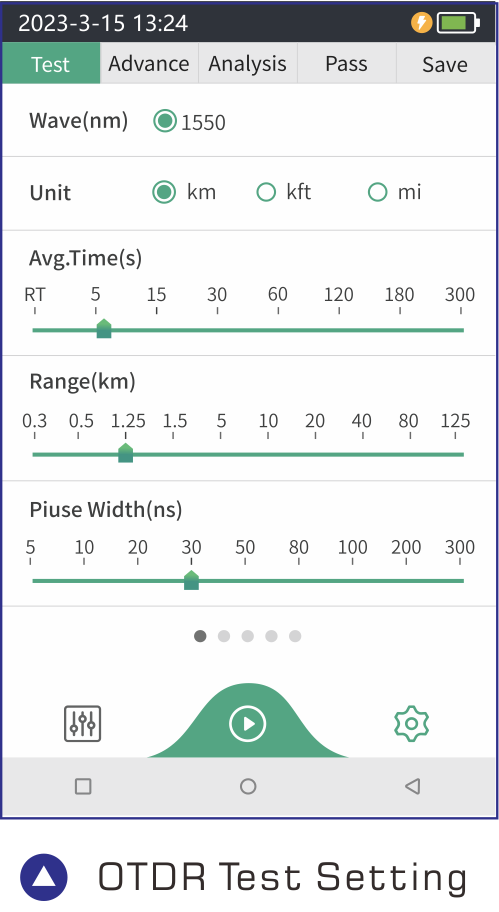

OTDR

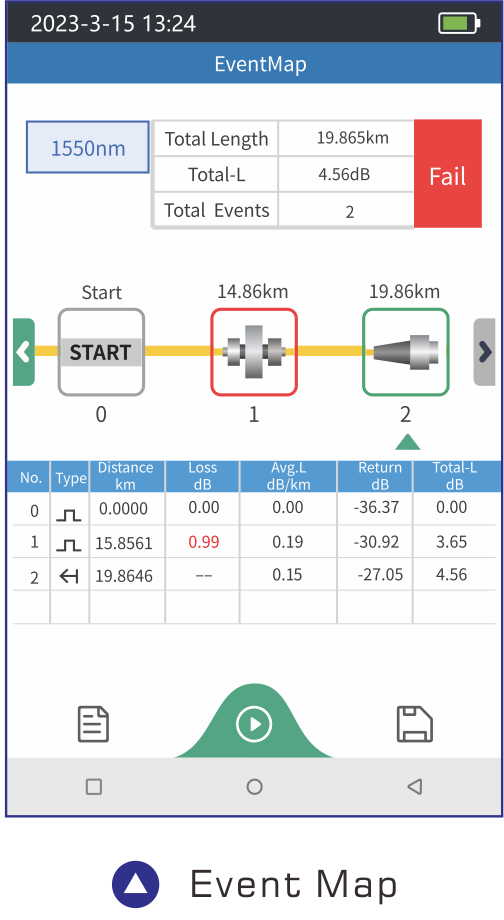

Event Map

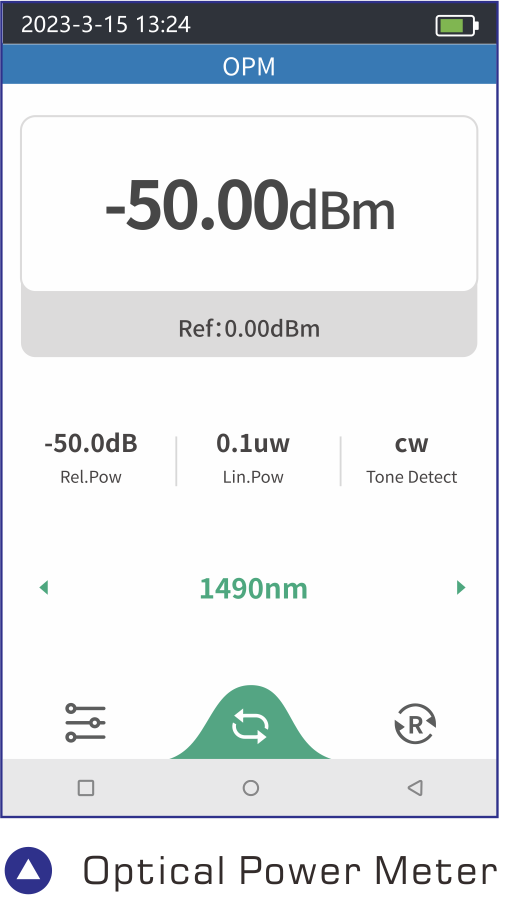

Power Meter

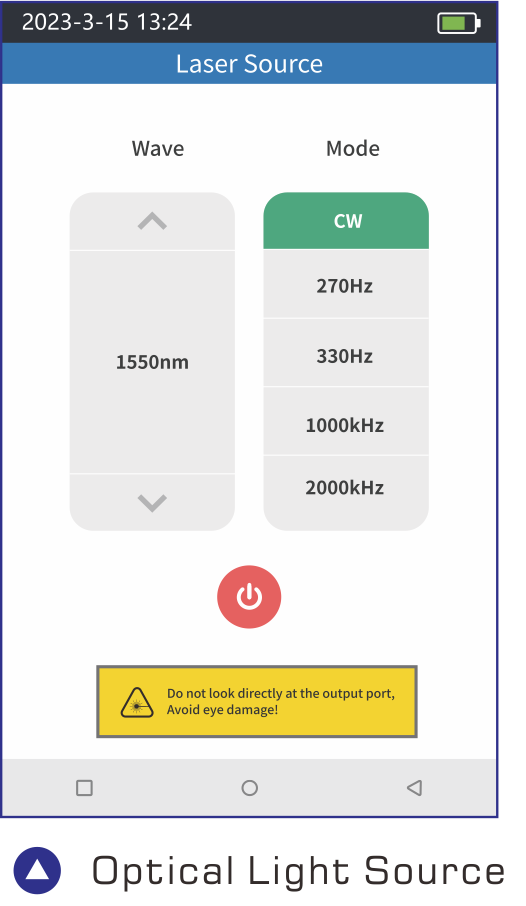

Light Source

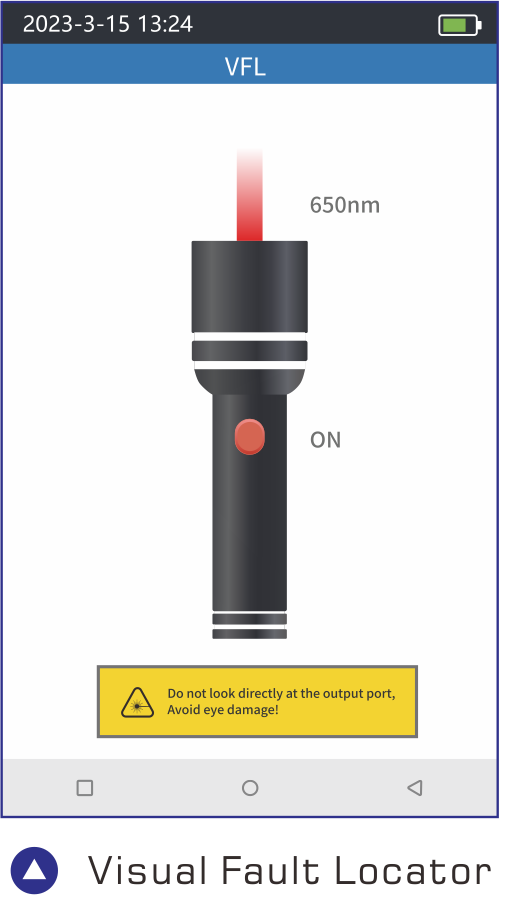

Visual Fault Locator
LED Light
RJ45 Cable Sequence
RJ45 Cable Tracking
Bluetooth*
1490nm Online x
1550nm Online x
1610nm Online x x
* Bluetooth function is optional
Note: -P24(1610nm) can test the fiber with1310/1490/1550nm signal in (power <0dBm)
-A24(1625nm) can test the fiber with 1310/1490/1550/1577nm signal in(power <0dBm)
-B24(1650nm) can test the fiber with 1310/1490/1550/1577nm signal in(power <5dBm)

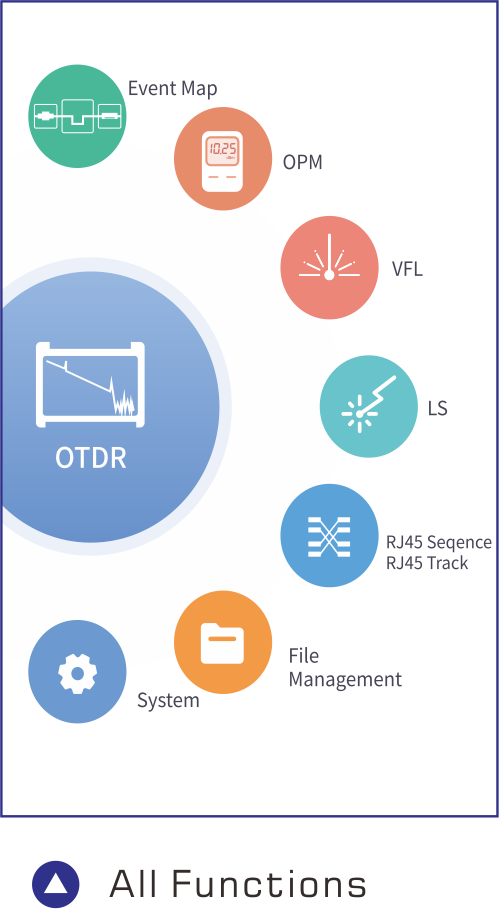

9-in-1 Device
- OTDR
- Event Map
- Optical Power Meter
- Optical Light Source
- Visual Fault Locator
- RJ45 Cable Tracking
- RJ45 Cable Sequence
- LED Light
- Bluetooth

The Kit Includes:
> OTDR, User Manual
> TF Card
> OTDRviewer Software
> Power Charging Adapter
> USB Cord
> Carrying Case
> Certificate of Calibrate

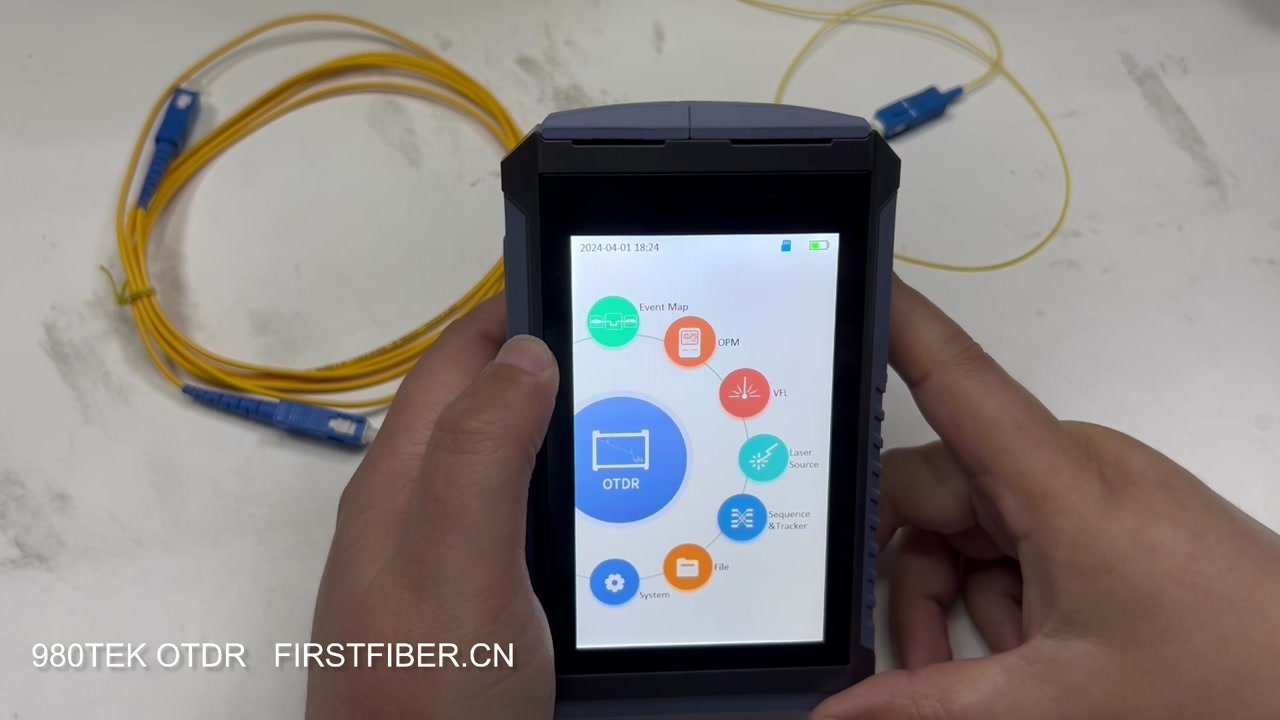

980TEK OTDR Operation
