| Model | 980RTC-D26 | 980RTC-D24SF | 980RTC-A26 | 980RTC-B26 | 980RTC | 980RTC-T3 | 980RTC-M24 |
| Wavelength | 1310/1550nm | 1550nm | 1625nm | 1650nm | 1310/1550/1625nm | 1310/1550/1650nm | 850/1300nm |
| Dynamic Range | 26/24dB | 24dB | 26dB | 26dB | 26/24/24dB | 24/22/22dB | 24/22dB |

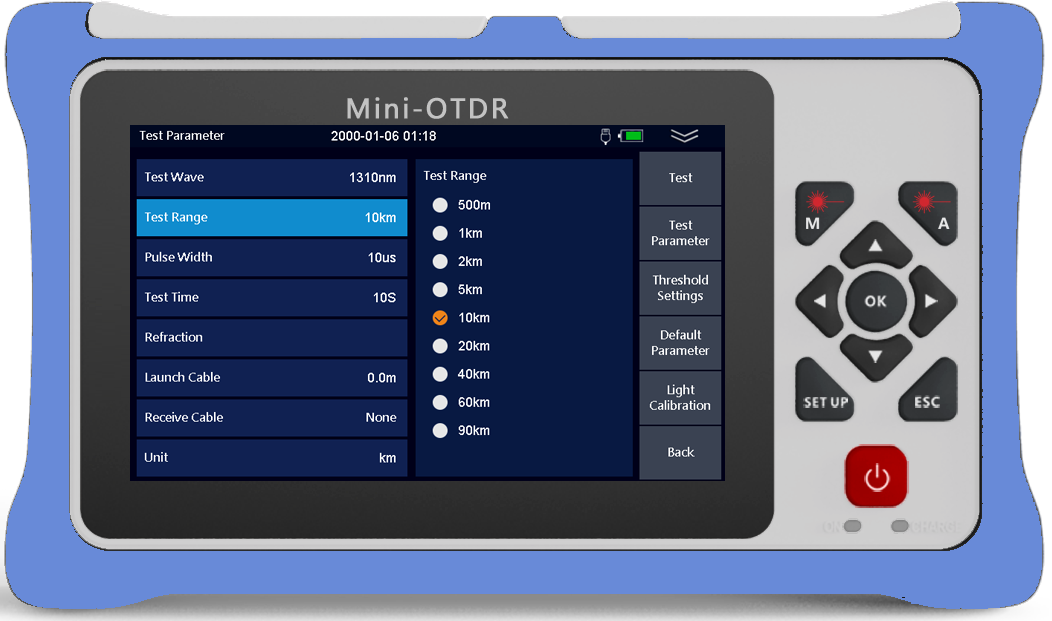

| Testing Range | 3m to 90km | 3m to 70km | 3m to 90km | 3m to 90km | 3m to 90km | 3m to 90km | 3m to 70km |
| OTDR | √ | √ | √ | √ | √ | √ | √ |

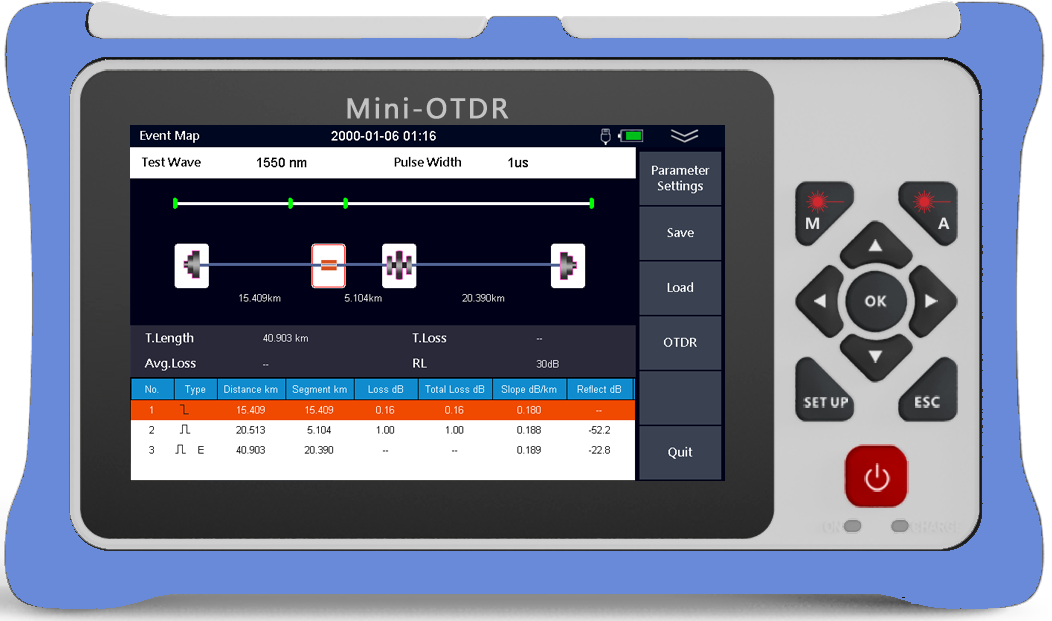

| Event Map | √ | √ | √ | √ | √ | √ | √ |

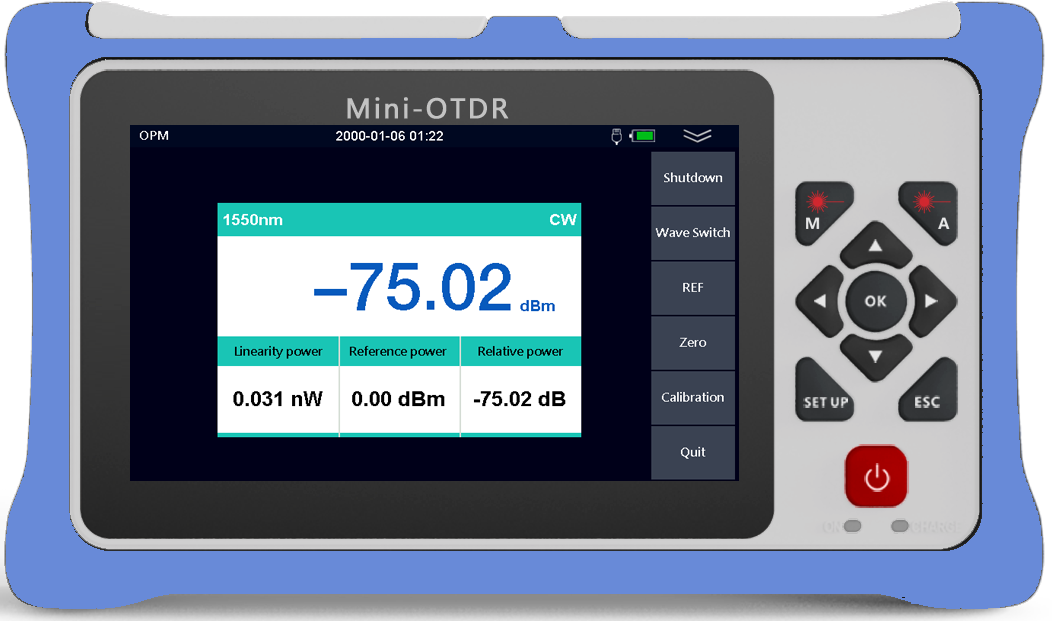

| Power Meter | √ | √ | √ | √ | √ | √ | √ |

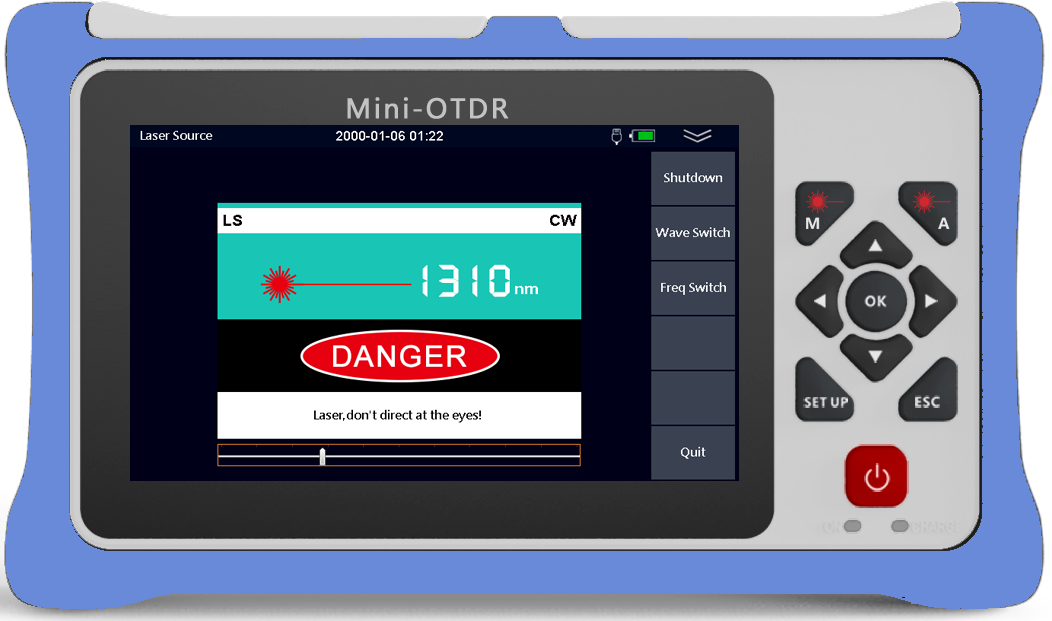

| Light Source | √ | √ | √ | √ | √ | √ | √ |

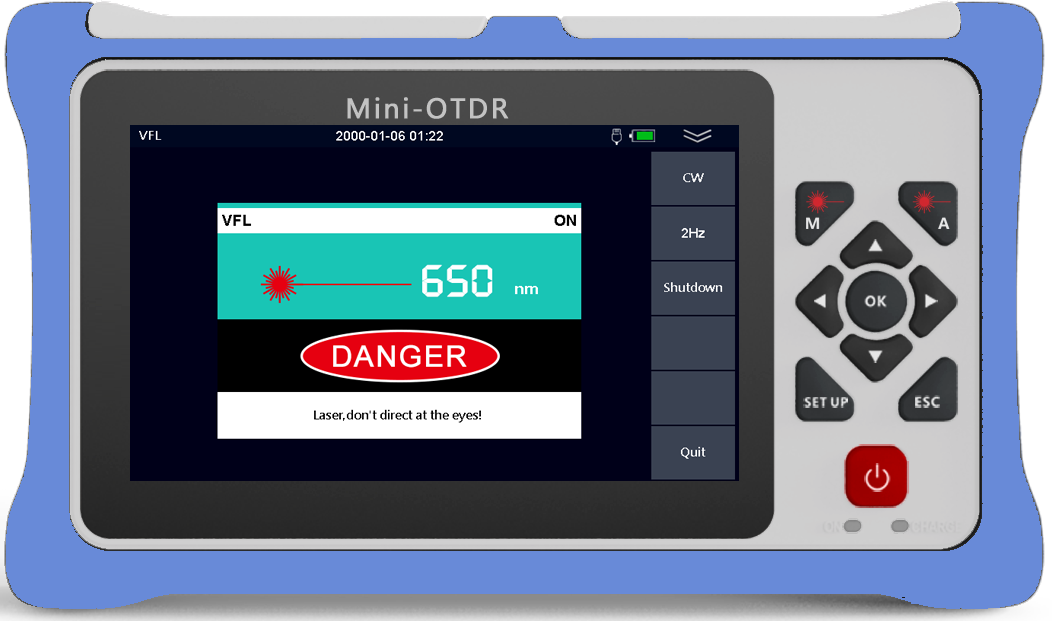

| VFL | √ | √ | √ | √ | √ | √ | √ |

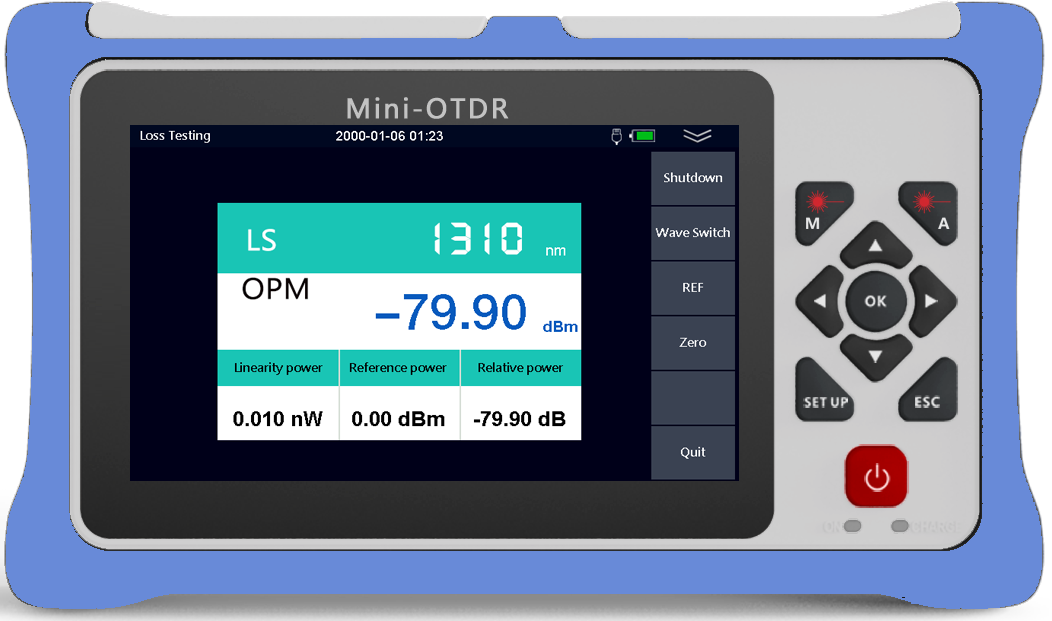

| Loss Test | √ | √ | √ | √ | √ | √ | √ |
| LED Light | √ | √ | √ | √ | √ | √ | √ |

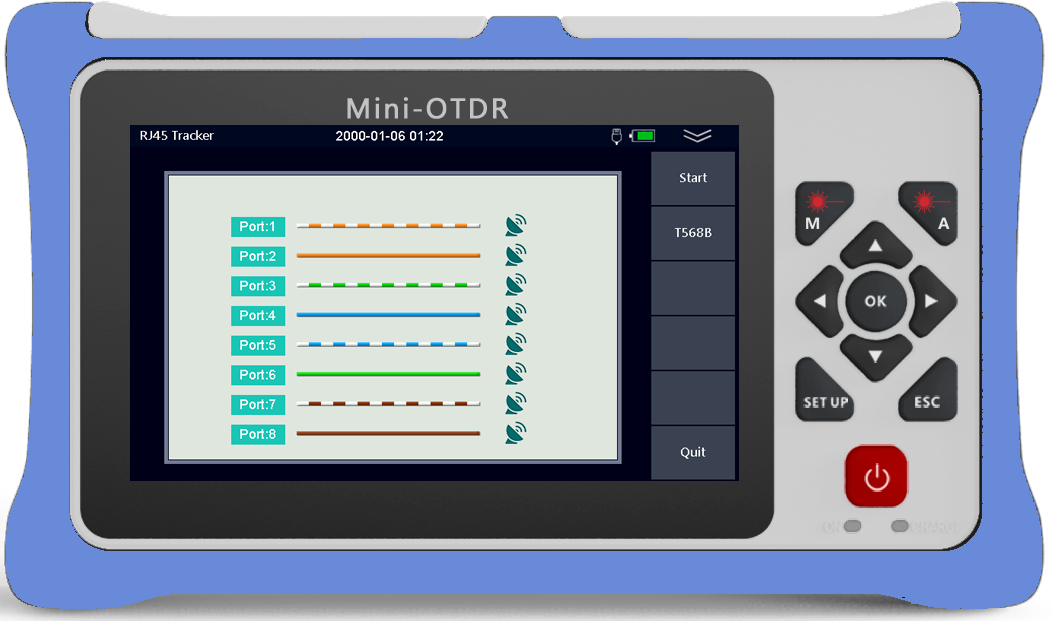

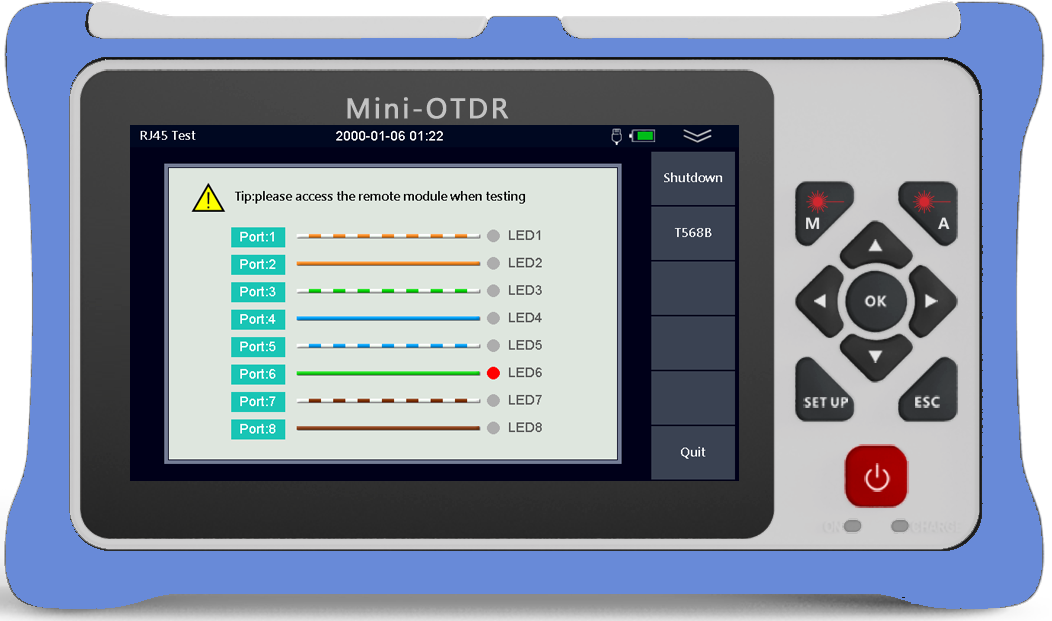

| RJ45 Sequence | √ | √ | √ | √ | √ | √ | √ |
| RJ45 Sequence | √ | √ | √ | √ | √ | √ | √ |
| 1490nm Online | x | √ | √ | √ | √ | √ | x |
| 1490nm Online | x | x | √ | √ | √ | √ | x |
| 1610nm Online | x | x | x | √ | √ | √ | x |
It is a bug. please download the upgrade package
https://firstfiber.cn/u_file/2501/16/file/updateME20250115.zip
and upgrade your OTDR to solve it by these steps,
1. Connect OTDR to the computer using a USB cable, and a memory symbol will appear on the computer.
2. unzip the upgrade package and copy its content update.ME.20250115.iso to the root directory of the storage.
3. Unplug the USB cable connected to the computer.

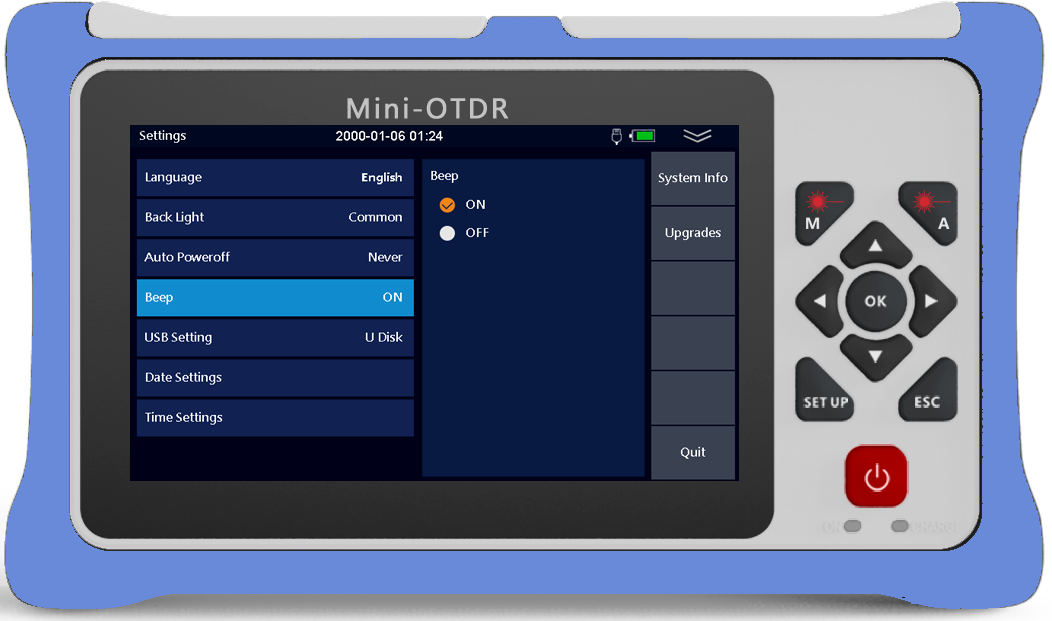

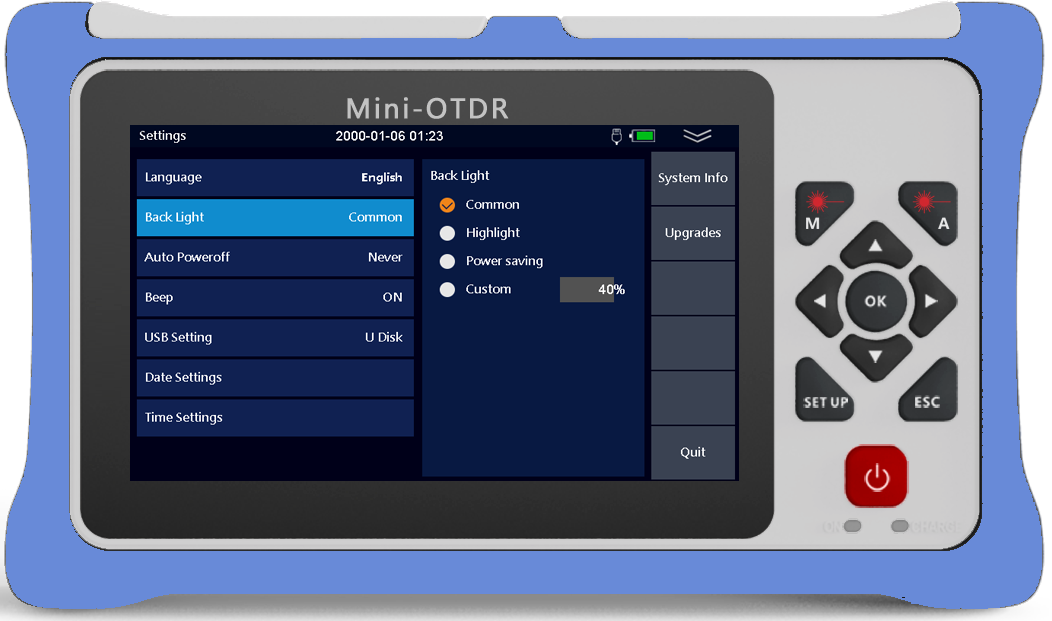

4. Click the upgrade button on the system settings interface of OTDR.
5. After a successful upgrade, it will automatically restart.
| Instructions | |
| Model Number | Max 8 characters, no special characters allowed. |
| Logo | High Resolution. (.jpg, .bmp, .psd, .cdr, etc) |
| Boot Screen | 800x480 px, format .bmp, and color depth 16-bit |
| Language | Please contact sales to request the English version of the field list. |
